GMC Envoy Ignition Knock Sensor Guide for 2002-2009 Models
Solving engine knock and check engine lights starts with choosing the right sensor for your Envoy's specific engine.
- First, identify if you have the 4.2L I6 or 5.3L V8 engine, as the replacement job is completely different.
- For 5.3L V8 models, always replace both sensors, the wiring harness, and the intake manifold gaskets at the same time.
- Due to the high labor cost for V8 models, using a premium OEM-quality brand like ACDelco or Delphi is strongly recommended.
- The new sensor must be tightened with a torque wrench to the correct specification (15-18 ft-lbs) to function properly.
Is Your Envoy's Knock Sensor Failing?
A bad knock sensor usually forces the engine's computer into a 'safe' mode. This protects the engine but hurts performance. The most common signs are easy to spot.

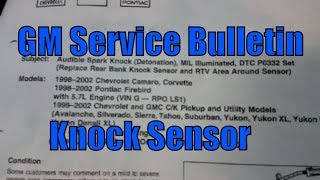

- Check Engine Light: This is the most frequent symptom. The computer will store a trouble code, most commonly P0325, P0327 🎬 Watch: How to diagnose these specific GM knock sensor codes. (for the 4.2L), or P0332 (for the 5.3L V8).
- Poor Acceleration: The vehicle will feel sluggish and slow to respond because the computer has reduced engine power to prevent damage.
- Engine Pinging Noise: You might hear a metallic pinging or rattling sound, especially when accelerating or driving uphill. This is the actual engine knock that a working sensor should detect.
- Reduced Fuel Economy: An engine running in safe mode is not efficient, causing you to use more gas.
4.2L I6 vs. 5.3L V8: The Job is Completely Different
Before buying any parts, you must know which engine your Envoy has. The location of the sensors and the difficulty of the replacement are not the same.
4.2L Inline-6 Engine:
The two knock sensors are located on the driver's side of the engine block. One is near the front and the other is near the rear by the starter. Access is tight, but it is a manageable job for a DIY mechanic. You can reach them by removing the driver's side front wheel and the plastic fender liner.
🎬 See this walkthrough for replacing sensors on the 4.2L engine.5.3L V8 Engine (Envoy XL, XUV, Denali):
The two knock sensors are in a much more difficult location: under the intake manifold, deep in the engine's valley. Replacing them is a complex job that requires removing the entire intake manifold assembly. 🎬 Watch: A step-by-step guide to the V8 knock sensor replacement. This is a high-labor repair that is not recommended for beginners.
V8 Engine Warning
For the 5.3L V8, it is critical to also replace the intake manifold gaskets and the knock sensor wiring harness. The original harness often becomes brittle and corroded from heat and moisture, which is a common reason the sensors fail in the first place. Failing to replace the harness and gaskets will likely lead to doing the entire job all over again.
Choosing the Right Aftermarket Knock Sensor
For a part that is difficult and expensive to replace (especially on the V8), part quality is extremely important. A cheap sensor that fails early will cost you much more in the long run. Here is a breakdown of available brands.
Tier 1: OEM / Premium Brands
These brands are the original equipment for General Motors or are known to meet the same strict standards. For a high-labor job, these are the safest choice.
- ACDelco: This is GM's own parts brand and the original equipment manufacturer (OEM) part. It guarantees a perfect fit and performance.
- Delphi: Delphi was a major OE supplier for GM and is widely considered to be of equal quality to ACDelco for sensors.
Tier 2: Quality Aftermarket Brands
These companies have a long reputation for making reliable parts that offer a good balance of quality and value.
- NGK (or NTK): A well-respected Japanese brand known for high-quality sensors.
- Standard Ignition (SMP): A long-standing brand that produces reliable engine management components.
- Walker Products: A known aftermarket sensor manufacturer.
- Beck Arnley: Focuses on sourcing parts that match the original form, fit, and function.
Tier 3: Economy Brands
These brands provide a budget-friendly option, but may have a higher risk of failure or inconsistent performance. They are more suitable for the easier 4.2L engine job where re-doing the labor is less of a concern.
- Global Parts
- Holstein
- Motorad
- True Tech
Pro Tip: Replace in Pairs
Your Envoy has two knock sensors. If one has failed from age and heat, the other is likely near the end of its life too. Given the labor involved, it is always recommended to replace both sensors at the same time.
Frequently Asked Questions (FAQ)
Where are the knock sensors on my 2005 GMC Envoy?
It depends on your engine. On the 4.2L I6, they are on the driver's side of the engine block, accessible from the wheel well. On the 5.3L V8, they are under the intake manifold.
What is the most common trouble code for a bad knock sensor?
For the 4.2L engine, P0327 (Knock Sensor 1 Circuit Low Input) is very common. For the 5.3L V8, P0332 (Knock Sensor 2 Circuit Low Input, Bank 2) is a frequent code. You may also see a general P0325 code.
Can I replace just one knock sensor?
While you can, it is not recommended. The sensors have been exposed to the same amount of heat and vibration. To avoid paying for the same labor twice, you should replace both sensors and the wiring harness (on V8 models) at the same time.
Is it hard to replace the knock sensors on a GMC Envoy?
On the 4.2L I6, it is moderately difficult due to tight access. On the 5.3L V8, it is a difficult and time-consuming job that requires removing the intake manifold and is best left to an experienced mechanic.
Do I need to use a torque wrench?
Yes. The knock sensor must be tightened to a specific torque value, typically around 15-18 ft-lbs. Over or under-tightening the bolt can change the sensor's sensitivity and cause it to not work correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12567446 213-1525 213-3521 213-4583
Number of Sensors: 2. Location (4.2L I6): Driver's side of engine block. Location (5.3L V8): Under intake manifold.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
