GMC Envoy Ignition Lock Cylinder: A Guide for 2002-2009 Models
Having trouble with your key not turning or getting stuck in your GMC Envoy? Here’s what you need to know.
- A key that won't turn or gets stuck is the most common sign of a failed ignition lock cylinder in an Envoy.
- This is a DIY-friendly repair, but you MUST perform the 30-minute Passlock relearn procedure, or the truck will not start.
- Quality aftermarket brands like ACDelco, Dorman, and Standard Ignition are all reliable choices for this part.
- A flashing security light is directly related to this component and is a clear sign that the anti-theft system is being triggered by the failing cylinder.
Is Your Envoy's Ignition Lock Cylinder Failing?
If you own a 2002-2009 GMC Envoy, you might eventually face issues with the ignition lock cylinder. It’s a common wear-and-tear item. The small metal parts inside, called tumblers, wear down from years of key rotations. This wear can cause a variety of frustrating symptoms.
Common Symptoms of a Bad Lock Cylinder
- Key Won't Turn: This is the most frequent complaint. The key goes in but refuses to turn, leaving you unable to start the engine. This happens when the tumblers inside the cylinder or the grooves on your key are so worn that they no longer line up correctly.
- Key Gets Stuck: You might be able to start the truck, but the key gets stuck in the 'On' or 'Accessory' position, and you can't turn it off completely to remove it.
- Flashing Security Light: A failing lock cylinder can trigger the Passlock anti-theft system. You may see a flashing security light on the dashboard, and the engine may start and then immediately stall, or not crank at all.
- No Crank, No Start: Sometimes, a worn cylinder won't properly engage the electronic ignition switch behind it. You'll turn the key and get nothing—no clicking and no cranking.
Don't Confuse it with the Ignition Switch
The lock cylinder is the mechanical part your key goes into. 🎬 Watch: How to replace the ignition lock housing and cylinder. The ignition switch is the electronic part behind it that sends power. If your key feels sticky or is hard to turn, the cylinder is the likely problem. If you have issues like the radio cutting out or the engine stalling while driving, the ignition switch is a more likely culprit.
Choosing the Right Aftermarket Ignition Cylinder
For the 2002-2009 Envoy, you have several high-quality aftermarket options that provide excellent value and reliability. You do not need to go to a dealer for this part.
| Brand | Quality & Reputation |
|---|---|

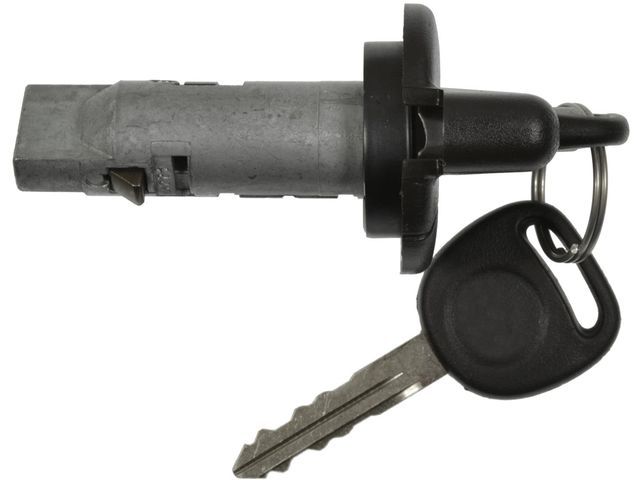

| ACDelco | As GM's official parts supplier, ACDelco is the closest you can get to the original part. They are considered a premium aftermarket choice known for meeting original equipment (OE) standards for fit and function. |

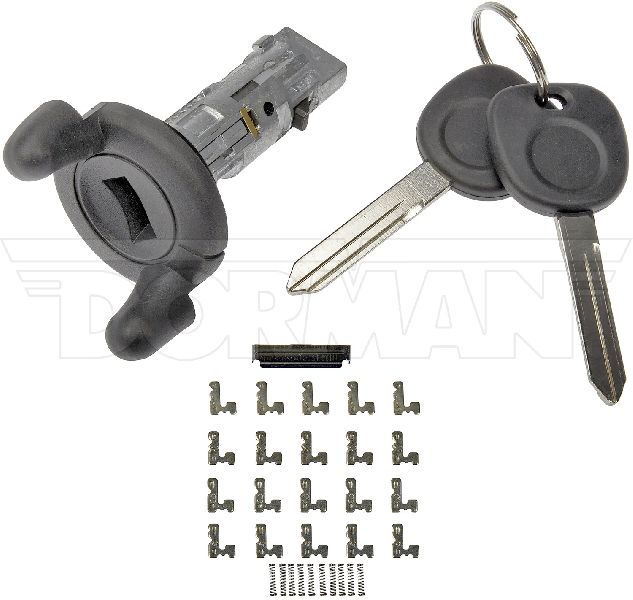

| Dorman | Dorman is a very popular aftermarket brand known for creating affordable and reliable replacement parts. They sometimes re-engineer parts to fix known factory flaws and often come as a complete kit with new keys. |
| Standard Ignition (SMP) | Standard Motor Products is a top-tier brand trusted by professional mechanics. They have a long history of producing high-precision ignition components that meet or often exceed OE quality, using durable materials like brass tumblers. |
Understanding Replacement Costs
Replacing the ignition lock cylinder is an affordable repair, especially if you do it yourself. The main costs are the part itself and, if you choose a shop, the labor for installation and the security relearn procedure.
| Cost Type | Estimated Price |
|---|---|
| New Aftermarket Part | $73 - $79 |
| Shop Labor | $125 - $200 |
| Total Professional Replacement | $198 - $279 |
The Critical 30-Minute Relearn Procedure
After installing a new ignition lock cylinder, your Envoy will not start until you perform the Passlock security relearn procedure. This syncs the new cylinder with the truck's anti-theft system. It's simple but must be done correctly:
🎬 See this video for a walkthrough of the Passlock relearn procedure.- Turn the key to 'ON' (don't start the engine). The security light will likely flash.
- Wait for approximately 10 minutes, or until the security light stops flashing and turns off.
- Turn the key to 'OFF' and wait 5-10 seconds.
- Repeat steps 1-3 two more times for a total of three 10-minute cycles.
- After the third cycle, the vehicle has learned the new cylinder. Turn the key off, then start the engine. It should now run normally.
Frequently Asked Questions
Was my Envoy part of the GM ignition recall?
No, the 2002-2009 GMC Envoy was not included in the major GM ignition switch recalls that dealt with the engine shutting off while driving. However, the lock cylinders are a known common failure point on these vehicles due to age and wear.
Can I replace the ignition lock cylinder myself?
Yes, this is a very DIY-friendly job for most people with basic tools. The process involves removing the plastic steering column covers and using a small pick or screwdriver to press a release tab to slide the old cylinder out. 🎬 Watch: Step-by-step guide to removing your GMC Envoy lock cylinder. The most important part is performing the 30-minute security relearn procedure after installation.
Do I need a locksmith to key the new cylinder to my old keys?
No. Aftermarket lock cylinders come with a new set of keys. Since the cylinder is being replaced due to wear, using your old, worn key is not recommended anyway. You will have a separate key for your ignition and your doors, which is normal for this type of repair.
My key is stuck in the shifter, not the ignition. Is that the same problem?
No, that is a different issue. If your key is stuck because the gear shifter doesn't register it's in 'Park', the problem is likely a dirty or failed park-detect switch/solenoid inside the center console shifter assembly, a common issue caused by spilled drinks.
Helpful Videos
Technical Specifications
OEM Part Numbers: D1497G D1405D
Mechanical lock cylinder with integrated Passlock anti-theft system components. Replacement requires a 30-minute security relearn procedure.
