Choosing the Right Spark Plugs for Your 2002-2009 GMC Envoy
Get the facts on which spark plugs work best for your Envoy's engine and how to avoid common issues.
- For best results, use OEM ACDelco Iridium (41-103 for 4.2L) or equivalent NGK Iridium spark plugs; these engines are sensitive to plug choice.
- If you have a misfire, check for water leaking from the hood cowl onto the ignition coils, a common issue for the Envoy.
- When replacing plugs, inspect the spark plug tubes for oil or coolant, which indicates a more serious cylinder head issue covered by a TSB.
- Replacement is a straightforward DIY job that takes about an hour and requires basic tools, saving on labor costs.
Symptoms of Failing Spark Plugs
When spark plugs wear out, they can cause noticeable problems. The electrodes erode over time, increasing the gap the spark has to jump. This requires more voltage and can lead to a weak or inconsistent spark. Here are the most common signs that your Envoy needs new spark plugs:
- Rough Idle: The engine may shake or vibrate more than usual when you're stopped.

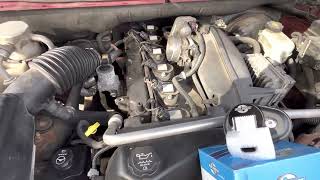

- Engine Misfires: You might feel a hesitation or stumble during acceleration. The check engine light may flash, storing codes like P0300 (random misfire) or P0301-P0306 for specific cylinders.
- Poor Fuel Economy: An inefficient spark means not all fuel is being burned, causing you to use more gas.
- Difficulty Starting: Worn plugs can make it harder for the engine to fire up, especially in cold weather.
- Reduced Power: Your Envoy may feel sluggish and less responsive than normal.
Known Issues for the 2002-2009 GMC Envoy
When troubleshooting spark plug-related misfires, be aware of two common issues with this platform:
Water Intrusion and Coil Failure
A very common problem is a degraded hood cowl seal that allows rainwater to drip directly onto the engine. This water often lands on the ignition coil for cylinder #4, causing it to short out and fail, leading to a misfire. If you have a misfire, especially after rain, inspect the ignition coil and its boot for moisture or corrosion 🎬 See how to permanently fix water leaks causing cylinder misfires. before replacing the spark plug.
TSB: Oil/Coolant in Spark Plug Tubes
General Motors issued Technical Service Bulletins (including PIP5095G) regarding a condition where oil or coolant can leak into the spark plug tubes. This is caused by porosity in the cylinder head itself. The liquid shorts out the spark plug and coil, causing a persistent misfire. If you remove an ignition coil and find oil or coolant in the tube that didn't leak from the top, this may be the cause, and it requires a cylinder head replacement to fix permanently.
Choosing the Right Aftermarket Spark Plugs
The 4.2L and 5.3L engines in the GMC Envoy are known to be sensitive to spark plug choice. While many brands are available, owner feedback strongly suggests sticking to the original equipment design for best results.
Tier 1: OEM & Premium Equivalent
This is the most recommended tier for a trouble-free experience.
- ACDelco Professional Iridium: This is the Original Equipment Manufacturer (OEM) part. The ACDelco 41-103 is the specific plug for the 4.2L engine and is widely recommended by Envoy owners as the most reliable option. These plugs are designed for long life and optimal performance with your vehicle's ignition system. 🎬 Watch: Step-by-step spark plug and coil replacement for the 4.2L engine.
- NGK Iridium: NGK is a well-respected brand and is the actual manufacturer for many ACDelco spark plugs. Their Iridium plugs are considered an excellent alternative to the ACDelco parts and will provide similar performance and longevity.
Tier 2: Quality Aftermarket Brands
These brands produce quality plugs, but be aware that some Envoy owners have reported issues like rough idling when not using the OEM-spec plugs.
- Denso Iridium: Denso is another top-tier OEM supplier and their Iridium Long Life plugs are a high-quality option.
- Bosch Iridium: Bosch offers fine-wire iridium plugs designed for long life and performance.
Tier 3: Standard & Budget Brands
These plugs will function but may not offer the same performance or 100,000-mile lifespan as iridium plugs.
- Champion, Autolite, Skyward: These brands offer more affordable platinum or copper plugs. They can be a good choice if you're on a tight budget or if your engine has an oil consumption issue that fouls plugs quickly, making long-life plugs less cost-effective.
Cost of Replacing Spark Plugs
| Part & Labor Type | Estimated Cost |
|---|---|
| Aftermarket Spark Plugs (DIY) | $25 - $125 (for a set of 6) |
| OEM Spark Plugs (DIY) | $50 - $100 (for a set of 6) |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $150 - $325 |
Frequently Asked Questions
Do I need to gap the new spark plugs?
Most modern iridium spark plugs, like the recommended ACDelco 41-103, come pre-gapped from the factory. The correct gap for the 4.2L engine is 0.043 inches. It's always a good practice to verify the gap with a feeler gauge, but be extremely careful not to damage the fine iridium tip. Do not use a coin-style gapper.
Why is my engine idling rough after changing the plugs?
This is a common issue. First, double-check your work. Ensure all ignition coil electrical connectors are fully seated and locked. Make sure the ignition coil boot is properly seated on the new spark plug. An improperly seated coil or a loose connector is the most frequent cause. Also confirm you used the recommended ACDelco or NGK plugs, as these engines can be picky.
🎬 Watch this guide to troubleshooting a rough idle after new plugs.How often should I replace the spark plugs on my Envoy?
The original ACDelco Iridium plugs have a recommended service interval of up to 100,000 miles. However, if you experience any of the failure symptoms, they may need to be replaced sooner.
Should I replace the ignition coils with the spark plugs?
It is not required, but it is a good preventative measure, especially on a higher-mileage vehicle. The ignition coils must be removed to access the plugs anyway, so replacing them at the same time saves on future labor. If one coil has failed, others may not be far behind.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12598004 41-103
Engine Type: 4.2L L6 or 5.3L V8. Spark Plug Socket Size: 5/8 inch. Recommended Gap (4.2L): 0.043 inches.
