Guide to 2002-2009 GMC Envoy Wheel Bearing Hub Assemblies
Hearing a grinding or humming noise? Your Envoy's wheel bearing may need attention.
- The part for your Envoy is a complete wheel hub assembly, which includes the bearing and ABS sensor, making it a bolt-on replacement.
- A humming or grinding noise that changes with speed is the most common symptom of failure.
- Premium brands like Timken, SKF, and ACDelco Professional offer the best longevity, while economy brands are a budget-friendly short-term solution.
- Properly torquing the axle nut to 103 ft-lbs is critical for the new bearing's lifespan.
Is Your GMC Envoy Making a Strange Noise?
If you're hearing a humming, rumbling, or grinding sound that gets louder as you drive faster, 🎬 Listen to the strange mooing sounds of a bad bearing. a bad wheel bearing is a likely culprit. On the 2002-2009 GMC Envoy, this part is a single, bolt-on unit called a wheel bearing and hub assembly, which includes a new ABS sensor. This makes replacement much simpler than on older vehicles where bearings had to be pressed in and out.
Common Symptoms of a Failing Wheel Bearing
A bad wheel bearing doesn't just make noise. It can cause a range of issues that affect your Envoy's safety and performance. Pay attention to these signs:
- Humming or Grinding Noise: The most common symptom. The noise often changes pitch or gets louder when you turn, as weight shifts from one side of the vehicle to the other.
- Steering Wheel Vibration: You might feel a vibration through the steering wheel that gets worse with speed.
- ABS Light On: The hub assembly contains the wheel speed sensor. A failing bearing can damage this sensor or create enough wobble to cause an incorrect reading, triggering the ABS warning light on your dash.
- Loose Steering Feeling: Worn bearings can create excess play, making the steering feel less precise or causing the vehicle to wander.
- Uneven Tire Wear: A wobbly hub can cause tires to wear out unevenly or faster than normal.
Don't Ignore a Bad Wheel Bearing
While you might be able to drive for a short time on a noisy bearing, it is a serious safety issue. In a worst-case scenario, the wheel could separate from the vehicle. It's best to get it replaced as soon as you confirm the problem.
Choosing the Right Aftermarket Hub Assembly
Since ACDelco is the original equipment (OE) supplier for GM, an ACDelco part is a safe bet. However, be aware that they offer different quality tiers. The "Professional" or "Gold" line is generally considered equivalent to the original part, while the "Advantage" line is a more budget-friendly option. Many aftermarket brands offer excellent quality, sometimes exceeding the original specifications.
| Tier | Brands | Description |
|---|---|---|
| Premium | Timken, SKF, FAG, National, ACDelco (Professional/Gold) | These brands are known for high-quality materials and manufacturing, often meeting or exceeding OEM standards. They are an excellent choice for longevity and reliability. Timken and SKF are consistently rated as top-tier choices by professional mechanics. |
| Mid-Grade | Mevotech, GMB, Beck Arnley | These brands offer a good balance of quality and price. Mevotech is often seen as a "problem-solver" brand with design improvements, while GMB and Beck Arnley have a solid reputation for providing reliable parts. |
| Economy | WJB, IAP Hub Assembly, MPA, and other store brands | These are the most affordable options. While they meet basic fit and function requirements, they may not last as long as premium or mid-grade parts. They can be a suitable choice if you're on a tight budget or plan to sell the vehicle soon. |
Pro Tip: Replace in Pairs?
When one wheel bearing fails, the other on the same axle is often not far behind, as it has endured the same mileage and conditions. While not strictly necessary, replacing both front (or rear) hubs at the same time can save you from having to do the same job again in the near future.
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?

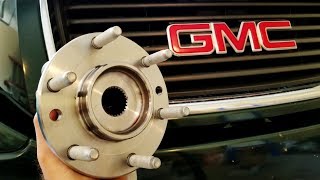

For a 2002-2009 GMC Envoy, replacing the front wheel hub assembly is a straightforward, bolt-on procedure. 🎬 Follow this step-by-step guide to replace your front hub assembly. It is a feasible DIY job for someone with moderate mechanical skill and the right tools, including a torque wrench and a large 36mm axle nut socket. The hub is held on by three bolts. Rust can make removal difficult, so be prepared with penetrating oil and a hammer.
What are the torque specs?
Torque specifications are critical for wheel bearings. The axle nut torque is especially important for setting the bearing preload. For the GMC Envoy, the axle nut should be torqued to 103 ft-lbs. Always verify the specs for your specific part, as they can vary slightly by manufacturer.
Are there any recalls for the GMC Envoy wheel bearings?
Our search of the NHTSA database did not find any specific recalls for the wheel bearings on the 2002-2009 GMC Envoy. There were recalls for other issues on this platform, such as a potential for fire in the driver's door module and turn signal malfunctions, but none related to the hub assemblies themselves.
Will a new wheel bearing fix my ABS light?
If the ABS light was triggered by a faulty wheel speed sensor integrated into your old, failed hub assembly, then yes, replacing the entire hub assembly will resolve the issue. The new hub comes with a new sensor and wire. However, if the light is on for another reason, it will remain on after the repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19383959
The front wheel bearing for the 2002-2009 GMC Envoy is a complete hub assembly. It is a 6-lug design and includes an integrated ABS sensor with the corresponding wiring harness. The axle nut size is 36mm.
