A Guide to the Engine Crankcase Vent Valve on the 2002-2009 Mercedes-Benz C230
Solve common issues like rough idling, oil leaks, and check engine lights by understanding this critical engine part.
- First, identify your engine. The 2002-2005 C230 (M271) and 2006-2007 C230 (M272) use completely different parts.
- Symptoms like rough idle, a hissing noise, and lean codes (P0171, P0174) strongly point to a failure in this system.
- For M271 engines, it is crucial to replace the brittle plastic hoses along with the valve to fix vacuum leaks permanently.
- On M272 V6 engines, a burning oil smell is a key indicator that the valve's gasket has failed and is leaking onto the exhaust.
Is Your C230's Engine Running Rough? It Could Be the Crankcase Vent Valve
If you own a 2002-2009 Mercedes-Benz C230, you might experience issues like a shaky idle, poor engine performance, or a check engine light. While several things can cause these problems, a failed engine crankcase vent valve or its related hoses is a very common culprit on this specific model. This is especially true for the plastic and rubber components, which can become brittle and crack over time, leading to vacuum leaks.
Engine Type Matters
The 2002-2009 C230 was built with two very different engines, and they use different crankcase vent systems. It is critical to identify your engine before ordering parts.

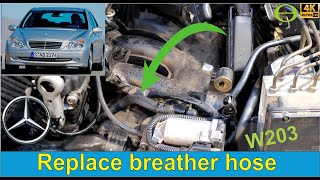

- 2002-2005 C230 Kompressor: These models have a 1.8L supercharged four-cylinder engine (M271). The system consists of several plastic hoses and a check valve that are known to crack and cause vacuum leaks. 🎬 Watch: How to replace the crankcase breather hose on the M271.
- 2006-2007 C230: These models have a 2.5L V6 engine (M272). They use a larger, box-shaped oil separator/vent valve mounted on the back of the driver's side cylinder head. This part is also a frequent failure point.
Note: While the prompt includes up to 2009, the C230 was primarily available in the US market until the 2007 model year.
Common Symptoms of a Failing Vent Valve
When the crankcase ventilation system fails, it can cause a range of noticeable problems. Here’s what to look out for:
- Rough or Unstable Idle: This is one of the most common signs. A vacuum leak from a cracked hose or a stuck valve disrupts the engine's air-fuel mixture, causing it to shake or idle erratically.
- Check Engine Light: A failure in this system will often trigger a Check Engine Light. You may see lean condition codes like P0170, P0171, or P0174, which mean there is too much unmetered air in the engine. Misfire codes (P0300-P0304) are also possible.
- Hissing Noise: You might hear a hissing sound from the engine bay, which is the sound of air being sucked through a crack in a vacuum hose.
- Increased Oil Consumption & Leaks: A clogged or failed valve can cause pressure to build in the crankcase, pushing oil past gaskets and seals. On M272 V6 engines, a failed valve can also send excessive oil into the intake manifold, causing blue smoke from the exhaust.
- Burning Oil Smell: On the M272 V6 engine, the valve is located above the hot exhaust manifold. When the valve's seal fails, it can leak oil directly onto the exhaust, causing a strong burning smell.
Choosing the Right Aftermarket Part
When replacing the crankcase vent valve, you don't always need to buy the expensive OEM part from a dealership. Several aftermarket brands offer quality replacements. For this specific part on the C230, here is an honest assessment of available brands.
Tier 1: OE Supplier & High-Quality Aftermarket
- CRP (Rein): CRP is a well-regarded brand that often acts as an original equipment (OE) supplier to European car manufacturers. Their parts are known to meet or exceed OEM specifications and are a reliable choice for fit and longevity.
Tier 2: Standard Aftermarket
- Vaico: Vaico is a German brand offering a wide range of aftermarket parts. Their quality is generally considered good for the price, making them a solid mid-range option for repairs where a genuine part isn't necessary.
- URO Parts: URO Parts is known as a budget-friendly brand. While some of their parts can be a good value, others have a reputation for lower quality and shorter lifespan. For a critical emissions and engine component like a vent valve, it may be worth spending a bit more on a higher-tier brand unless the cost is a primary concern.
Pro Tip: Replace the Hoses Too

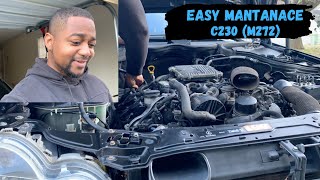

On the M271 engine especially, the plastic and rubber hoses are the most common failure point. They become brittle with age and heat. It is highly recommended to replace all associated vent hoses when you replace the valve itself to ensure the entire system is sealed 🎬 See this preventative maintenance walkthrough for the vent valve and cam plugs. and functioning correctly. For the M272 V6, the replacement part is typically a complete assembly that includes the valve and integrated seals.
Cost of Replacing the Engine Crankcase Vent Valve
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $17.85 - $40.42 |
| Shop Labor | $150 - $350 |
Note: Labor costs can vary significantly based on your location and which engine your C230 has. The V6 (M272) valve is more difficult to access and will be on the higher end of the labor estimate.
Frequently Asked Questions
Is this the same as a PCV valve?
Yes, functionally it is. Mercedes-Benz often refers to the part as a "crankcase vent valve," "oil separator," or "rebreather valve," but it performs the same function as a traditional PCV (Positive Crankcase Ventilation) valve.
What happens if I don't replace a bad vent valve?
Ignoring a failed vent valve can lead to more serious problems. Continued high crankcase pressure can cause multiple oil leaks from gaskets and seals. A persistent vacuum leak will cause poor fuel economy, rough running, and can eventually damage your catalytic converter.
How difficult is this to replace myself?
For the 4-cylinder M271 engine, the hoses are located under the airbox and can be difficult to reach, but the job is feasible for a DIY mechanic with patience and the right tools. For the V6 M272 engine, the valve is on the back of the engine and requires removing the airbox and working in a tight space, making it more challenging.

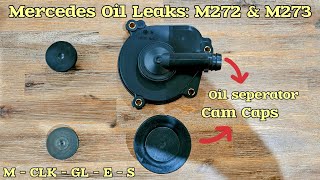

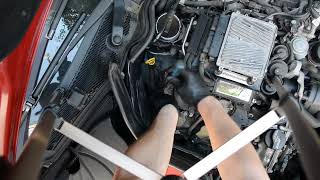

🎬 Watch: Step-by-step oil separator and camshaft plug replacement for V6 engines.Are there any recalls for this part?
There are no specific recalls from the NHTSA for the crankcase vent valve on the 2002-2009 Mercedes-Benz C230. However, several recalls exist for the sunroof bonding on these vehicles.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2720100631 A2720100631 2710181382 A2710181382
For 2002-2005 models with the M271 engine, the system consists of multiple hoses and a check valve. For 2006-2007 models with the M272 engine, the part is a single oil separator assembly.
