A/C Compressor Replacement Guide for the 2002-2009 Mercedes-Benz G500
Keep your G-Wagen's climate control blowing ice-cold by choosing the right A/C compressor.
- The most reliable aftermarket choice is Denso, the Original Equipment Manufacturer for the G500.
- Professional installation is required due to the need for specialized equipment to handle refrigerant.
- Always replace the receiver/drier and expansion valve with the compressor to validate the warranty and ensure system longevity.
- Verify the part number on your old compressor before ordering, as multiple versions were used for this model range.
Is Your G500's A/C Compressor Failing?
An A/C compressor failure in the 2002-2009 G500 is usually due to age and wear. Recognizing the signs early can help you diagnose the problem correctly. Don't immediately assume the compressor is bad; the issue could be a simple fuse, a relay, or low refrigerant.
Common Symptoms of a Bad A/C Compressor:
- Warm Air From Vents: The most obvious sign is when the A/C system blows air that isn't cold, even at the lowest temperature setting.
- Loud Noises: Grinding, squealing, or rattling sounds when you turn the A/C on can point to failing bearings or other internal compressor parts.
- Clutch Not Engaging: The compressor's clutch is at the front of the pulley. When you turn the A/C on, this clutch should engage and spin with the pulley. If the pulley is spinning but the center plate is not, the compressor is not turning on. This can be a sign of a bad clutch, low refrigerant pressure, or an electrical problem.
- Visible Leaks: You may see oily residue on the body of the compressor. This is often refrigerant oil leaking from failing seals.
Choosing the Right Aftermarket Compressor for Your G500
For a high-end vehicle like a G500, part quality matters. While a genuine Mercedes-Benz compressor can be very expensive, several aftermarket brands manufacture the original parts and offer them for a fraction of the price. Here’s how the available brands stack up.
Tier 1: OEM-Quality Brands
These brands are known to be Original Equipment Manufacturers (OEM) for Mercedes-Benz and other German automakers. Choosing one of these is the safest bet for long-term reliability and performance that matches the factory part.
- Denso: Denso is the original equipment supplier for the G500's A/C compressor. Choosing a new Denso unit is the closest you can get to buying a genuine Mercedes part without the dealership price tag. It is highly recommended for fit and longevity.
- Valeo: Valeo is another top-tier OEM supplier for many European vehicles. They are known for high-quality parts and are an excellent alternative if a Denso unit is not available.
- Bosch: While not specifically identified as the OEM for this part, Bosch is a major OEM for Mercedes-Benz and is known for its quality engineering. A Bosch compressor is a trustworthy choice.
Pro Tip: Always confirm the OEM part number on your G500's original compressor before ordering. There were several different compressors used during the 2002-2009 production run. Common part numbers include 0002307011 (for 2002-2003) and 0002309011 (for 2004-2006).
Tier 2: Reputable Aftermarket Brands
These brands specialize in aftermarket parts and offer a good balance of quality and value.
- Nissens: A well-regarded European brand that produces reliable climate control components. Nissens is a solid choice that often meets or exceeds OE specifications.
Tier 3: Economy Brands
These brands offer the most budget-friendly options. They can be a decent choice for a quick fix, but user reviews suggest their quality can sometimes be inconsistent.

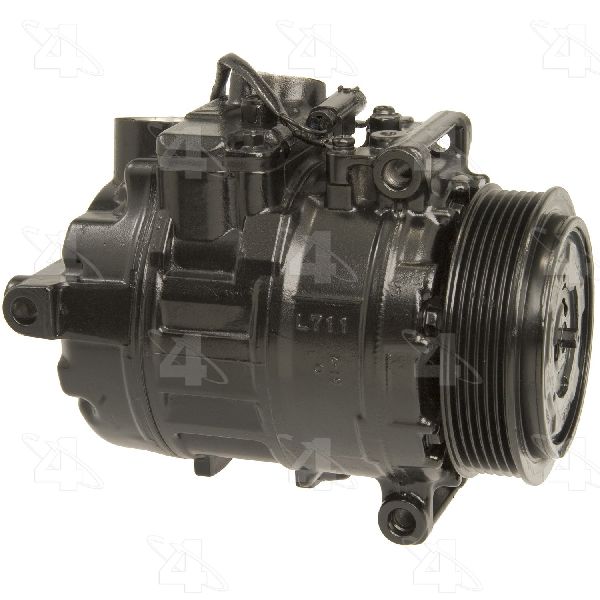

- Four Seasons: One of the largest aftermarket A/C parts suppliers. Quality can be hit-or-miss according to some mechanics and owners, but they are widely available.

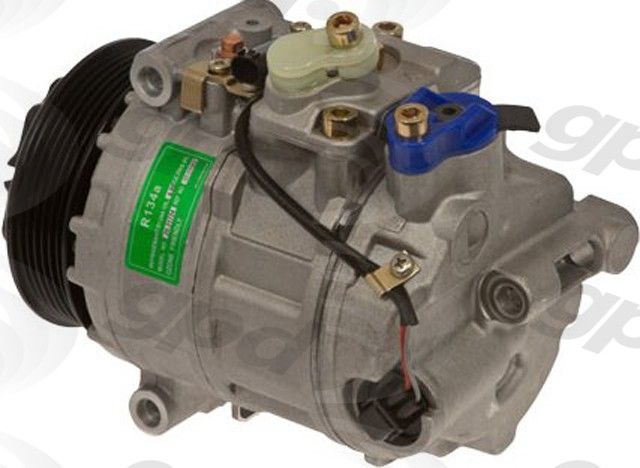

- Global Parts (GPD) / UAC: These are value-focused brands. While they make parts accessible, some users have reported premature failures.
G500 A/C Compressor Replacement Cost
The total cost depends on the brand of the part and local labor rates. Because the job requires specialized equipment to handle refrigerant, professional installation is necessary.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $198 - $591 |
| Shop Labor & System Recharge | $280 - $420 |
| Total Estimated Cost | $478 - $1,011 |
Important: When replacing the compressor, you MUST also replace the A/C receiver/drier and expansion valve. Most warranties for new compressors are void if these components are not replaced at the same time. This is because a failed compressor can send metal debris through the system, which will destroy the new unit if not flushed out and filtered by a new drier.
Frequently Asked Questions (FAQ)
Can I replace the G500 A/C compressor myself?
This is not recommended for a DIY mechanic. The A/C system is under high pressure and contains refrigerant that is hazardous and regulated by law. The job requires a special machine to safely evacuate the old refrigerant and recharge the system with the precise amount of new refrigerant and oil. Incorrect service can damage the new compressor and other A/C components.
Are there any recalls on the 2002-2009 G500 A/C compressor?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no open recalls for the A/C compressor on the 2002-2009 Mercedes-Benz G500. Failures are typically related to the age and mileage of the vehicle.
Why does my A/C still blow warm after replacing the compressor?
If a new compressor doesn't solve the problem, there could be other issues. These include a leak elsewhere in the system, a clogged condenser or evaporator, a faulty expansion valve, or an electrical problem with a sensor or the climate control unit itself. A professional diagnosis is needed to check system pressures and look for other faults.
What is A/C "Black Death"?
This term describes a catastrophic compressor failure where internal components shred, sending a black, sludge-like mixture of metal shavings and oil throughout the entire A/C system. If this happens, simply replacing the compressor is not enough. The entire system, including lines, condenser, and evaporator, must be thoroughly flushed, and the receiver/drier and expansion valve must be replaced to prevent the debris from destroying the new compressor.
Technical Specifications
OEM Part Numbers: 0002307011 0002309011 A0002309111 0012301811 0012302811 0002306811 0002308611
Compressor Type: 7SB16C (Varies by year/part number), Clutch: Included, Refrigerant: R134a
