A Home Mechanic's Guide to the 2002-2009 Nissan Maxima Window Motor
If your Maxima's window is slow, noisy, or stuck, this guide will help you diagnose and fix the problem.
- Failure is common, but it's usually the plastic parts in the window regulator, not the motor itself.
- For a reliable and easier repair, always buy and install a complete motor and regulator assembly.
- There are no recalls for this issue; it is considered a standard wear-and-tear repair.
- Aftermarket brands like Dorman and Cardone offer a quality repair for a fraction of the OEM cost.
Is Your Maxima's Window Motor Failing?
A failing window motor in a 2002-2009 Nissan Maxima usually gives you some warning. The problem can be the motor itself or the window regulator it connects to. Since they work together, a failure in one part puts stress on the other. Here are the most common signs of a bad window motor or regulator.
Common Symptoms:
- Slow or Stuttering Window: The glass moves up and down much slower than it used to, or it moves in a jerky motion. This is often the first sign the motor is getting weak.
- Grinding or Clicking Noises: Loud grinding, clicking, or popping sounds from inside the door are a major red flag. This often points to a problem with the window regulator's cables or plastic parts, which is a very common issue on this generation of Maxima.
- Window Won't Move, But You Hear the Motor: If you press the switch and hear a whirring sound, the motor is working. This means the regulator's cable has likely snapped or come loose from the glass.
- Intermittent Operation: The window works sometimes but not others. Tapping on the door panel while pressing the switch might make it work temporarily, pointing to a bad spot in the motor.
- No Sound or Movement: If nothing happens when you press the switch, the motor may have failed completely. However, you should always check the fuse and the switch first to rule out a simple electrical issue.
Known Issues: It's Often the Regulator, Not the Motor
For the 2002-2009 Nissan Maxima, the window regulator is a more common failure point than the motor itself. The original regulators use plastic clips and guides that become brittle and break over time. When they fail, the cable system tangles or snaps. Because most aftermarket parts are sold as a complete motor and regulator assembly, it is highly recommended to replace both at the same time. This saves you from having to do the job twice.

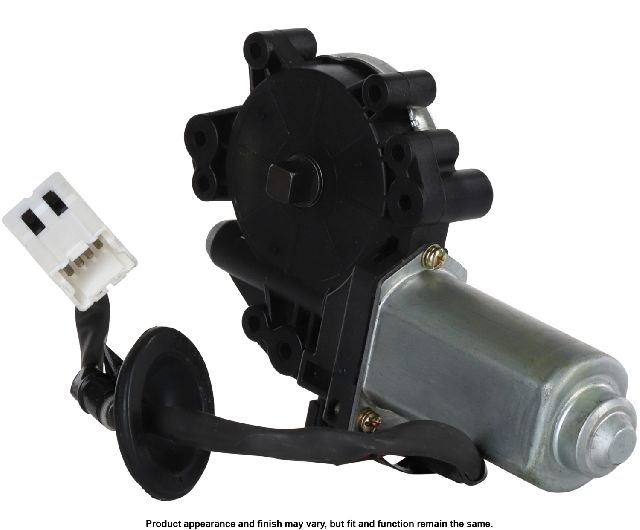

Choosing the Right Aftermarket Window Motor
You don't need to buy an expensive part from the dealership. Aftermarket parts offer good quality for a much lower price. The most important thing is to buy the correct part for your specific door (e.g., Front Driver Side, Rear Passenger Side).
Brand Tiers
- Standard Replacement (Dorman, Cardone): These are the most common and trusted brands in the aftermarket. Dorman offers a wide range of parts that are engineered to match the original fit and function. Cardone is also a popular choice, offering both new and remanufactured options that sometimes include design improvements over the factory part. For most Maxima owners, these brands provide a reliable, long-lasting repair.
- Economy (Replacement, Skyward): These brands offer a budget-friendly solution. They are a good choice if you need to fix the problem at the lowest possible cost. While they may not have the same brand recognition as Dorman or Cardone, they are designed to be a direct-fit replacement.
Pro Tip: Motor and Regulator Assembly
Always buy the complete window motor and regulator assembly. The price difference is small, and it replaces all the common failure points at once. This makes the installation much easier and ensures you won't have to take the door apart again in a few months to replace the other half of the system.
Window Motor Replacement Cost for 2002-2009 Nissan Maxima
The cost to replace a window motor depends on whether you do it yourself or hire a mechanic. The parts themselves are affordable.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Motor/Regulator Assembly | $47 - $221 |
| New OEM Motor/Regulator Assembly | $370 - $440 |
| Shop Labor | $95 - $185 |
| Total (DIY Aftermarket) | $47 - $221 |
| Total (Shop-Installed Aftermarket) | $142 - $406 |
Frequently Asked Questions (FAQ)
Can I replace just the motor?
Yes, you can replace just the motor, but it's not recommended. The regulator is the most common failure point, and separating the old motor from the old regulator can be difficult. Buying a complete assembly is easier and more reliable.
Are there any recalls for the window motor on my Maxima?
No, there are no safety recalls or widespread Technical Service Bulletins (TSBs) from Nissan for window motor or regulator failure on the 2002-2009 Maxima. The issue is considered normal wear and tear.
Is this a difficult DIY job?
For a home mechanic with basic tools, this is a manageable job that takes about 1-2 hours. It involves removing the door panel, carefully peeling back a plastic water shield, and unbolting the assembly. The biggest challenge occurs if your window is stuck in the 'up' position, as it blocks access to the bolts holding the glass to the regulator.
Do I need to reset the 'auto up/down' feature after replacement?
Yes. After installing the new motor, you will likely need to reset the one-touch auto function. To do this, roll the window all the way down and hold the switch for 3-5 seconds. Then, roll the window all the way up and hold the switch for another 3-5 seconds. This should reprogram the feature.
Technical Specifications
The replacement motor must be compatible with the vehicle's auto up/down feature, if equipped (primarily on the driver's door). Assemblies are specific to each door location (Front Left, Front Right, Rear Left, Rear Right).
