Chevrolet Trailblazer Engine Camshaft Position Sensor Guide (2002-2010)
Fixing stalling, rough idling, and no-start problems in your 4.2L Trailblazer often points to this critical sensor.
- A failing camshaft sensor is a very common cause of stalling, no-starts, and rough running on the 2002-2010 Trailblazer.
- The 4.2L engine is sensitive to sensor quality; using an OEM brand like ACDelco or Delphi is strongly recommended to avoid repeat failures.
- Replacement is a very simple DIY job, requiring only a 10mm socket and about 30 minutes of time.
- The most common trouble code is P0340, but always check the connector for oil contamination or damage before replacing the part.
Is Your Trailblazer Stalling or Hard to Start?

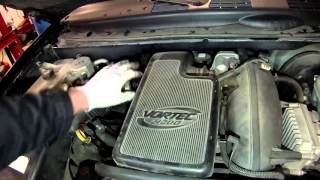

A failing camshaft position sensor is one of the most common reasons for a 2002-2010 Chevrolet Trailblazer to suddenly develop engine problems. Symptoms can appear without warning and range from a simple Check Engine Light to the engine shutting off while you're driving. 🎬 Watch this video to see how a bad sensor causes stalling. Because this sensor is so critical for engine timing, its failure directly impacts drivability. The most common trouble code associated with this part is P0340, which points to a problem in the camshaft position sensor circuit.
Common Symptoms of a Bad Camshaft Sensor
- Check Engine Light: This is often the first sign. The computer detects a problem with the sensor's signal and stores a fault code, usually P0340.
- Engine Won't Start: The engine may crank but refuse to start because the computer isn't receiving the necessary signal to initiate spark and fuel.
- Stalling: The engine may stall unexpectedly, either while idling or while driving. This can be a serious safety concern.
- Rough Idle and Misfiring: An unsteady idle or engine vibrations can occur because the timing is off, leading to inefficient combustion.
- Poor Acceleration: You may notice a significant lack of power or hesitation when you press the gas pedal.
Known Issues and Recalls
As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from Chevrolet or the NHTSA for the engine camshaft position sensor on the 2002-2010 Trailblazer. However, the part is a known common failure item.
Choosing the Right Aftermarket Sensor: A Warning for Trailblazer Owners
The 4.2L engine in the Trailblazer is known to be very sensitive to the quality of its electronic sensors. While saving money on parts is always tempting, choosing the wrong brand for your camshaft position sensor can lead to more headaches. Many owners report that after installing a budget sensor, the original problem and P0340 code returned quickly or never went away at all.
Brand Quality Tiers
To make the best choice, it's helpful to think of brands in tiers:
- Tier 1 (OEM & OEM-Supplier): ACDelco, Delphi. ACDelco is the original GM parts brand. Delphi was once part of GM and is a major OEM supplier. For critical sensors on this specific engine, choosing one of these two brands is strongly recommended by experienced owners and mechanics to ensure compatibility and longevity.
- Tier 2 (Premium Aftermarket): Standard Ignition (SMP), NGK/NTK, Hitachi, Walker Products. These are reputable aftermarket manufacturers with a long history of producing quality components. They are a solid choice if an OEM-tier part is not available, but for the Trailblazer, the consensus points toward sticking with Tier 1.
- Tier 3 (Budget & Store Brands): Dorman, Spectra, and various private labels. While brands like Dorman offer a cost-effective solution and a wide range of parts, forum discussions contain numerous accounts of their electronic sensors failing prematurely on these vehicles. These are best avoided for this specific application to prevent having to do the job twice.
Pro Tip: Check the Connector

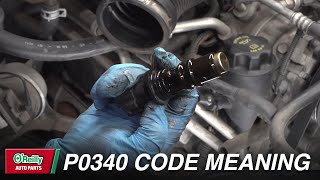

Before ordering a new sensor, inspect the wiring and electrical connector. The connector itself can become brittle, and oil from a leaking valve cover gasket can contaminate the pins, causing the same P0340 code. 🎬 See this quick breakdown of common causes for the P0340 code. Sometimes, cleaning the connector with electrical contact cleaner or replacing a damaged pigtail is all that's needed.
DIY Replacement: An Easy Fix
Replacing the camshaft position sensor on a 4.2L Trailblazer is a great job for a beginner. It is easily accessible and requires only basic tools.

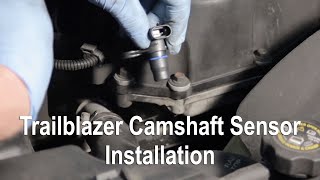

🎬 Follow this step-by-step walkthrough to replace the sensor yourself.- Location: On the passenger side of the engine, near the front, just below the oil filler cap.
- Tools: A ratchet with a 10mm socket.
- Process: Simply disconnect the electrical connector (you may need a small pick to release the lock), remove the single 10mm bolt, and gently twist the old sensor to pull it out. Apply a light coat of clean engine oil to the O-ring of the new sensor before installing.
- Torque: The retaining bolt should be tightened to 89 inch-pounds. Do not overtighten, as this can crack the sensor housing.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $45 - $85 |
| New Aftermarket | $21 - $80 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the camshaft position sensor on a 2002-2010 Trailblazer?
It is located on the passenger side of the 4.2L inline-6 engine, near the front, right below the oil filler cap area. It is held in by a single 10mm bolt.
What is the main trouble code for a bad camshaft sensor?
The most common diagnostic trouble code (DTC) is P0340, which indicates a "Camshaft Position Sensor 'A' Circuit Malfunction". This means the computer has detected an issue with the sensor's signal or the circuit itself.
Can I replace this sensor myself?
Yes, this is considered a very easy DIY job. It typically takes less than 30 minutes and requires only a 10mm socket and ratchet.
Do I need to use an ACDelco or Delphi sensor?
While not strictly required, it is highly recommended. The Trailblazer's computer system is known to be picky about sensor inputs, and many owners have reported that budget aftermarket sensors do not fix the problem or fail quickly. Sticking with an OEM-quality brand like ACDelco or Delphi is the safest bet.
What's the difference between the camshaft and crankshaft sensor?
They perform similar functions but monitor different shafts. The camshaft sensor tracks the top part of the engine (valves), while the crankshaft sensor tracks the bottom part (pistons). The computer compares both signals to get a complete picture of the engine's cycle. A failure in either can cause similar symptoms.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12576562 12588992 213-1557
Single bolt mount, 3-pin oval electrical connector.
