Chrysler Sebring Engine Oil Pressure Switch Guide (2002-2010)
Leaking oil or a flickering dashboard light on your Sebring could be a sign of a failing oil pressure switch.
- A flickering oil light on a Sebring with a full oil tank is most often a bad oil pressure switch.
- Oil leaking from the switch or its connector is a clear sign it needs replacement.
- This is a good DIY repair; just make sure you have the special deep socket for the switch.
- Quality aftermarket brands like Hella or Standard Ignition are reliable alternatives to the more expensive OEM part.
Is Your Sebring's Oil Pressure Switch Failing?
A bad oil pressure switch can cause a lot of worry. You might see the oil light flicker at stoplights or notice a small puddle of oil under your car. These are the two most common ways this part fails on the 2002-2010 Chrysler Sebring. It either starts leaking oil through its body or the electrical connector, or it fails internally and gives false readings. Ignoring these signs can be risky. While a faulty switch itself won't harm the engine, the warning light it controls is your only alert for real, catastrophic oil pressure loss.
Don't Ignore the Oil Light
If your oil pressure light comes on and stays on, and you hear new engine noises like knocking or ticking, pull over and shut off the engine immediately. This could signal a true low oil pressure problem that can destroy your engine in minutes. It's always better to be safe and get the vehicle checked.
Common Failure Symptoms

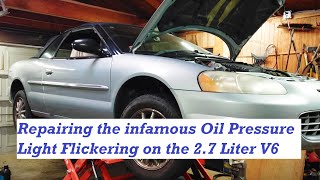

- Flickering Oil Light: The oil pressure light on your dash may flicker or turn on, especially when the engine is warm and at idle. This is a classic sign for the Sebring, particularly with the 2.7L V6 engine. 🎬 Watch this 2.7L Sebring oil light flicker in action.
- Oil Leaks: The switch itself can leak oil. You may find oil on the sensor, its electrical connector, or dripping onto the exhaust, which can create a burning smell.
- Incorrect Gauge Reading: If your Sebring has an oil pressure gauge, it might read zero or max out unexpectedly.
- Check Engine Light: A failing switch can sometimes trigger the Check Engine Light with code P0520, which points to a problem in the oil pressure sensor circuit.
Choosing the Right Aftermarket Switch
For the 2002-2010 Sebring, you don't necessarily need to buy the expensive OEM part from the dealer. Many aftermarket brands offer good quality replacements that meet or exceed original standards. Here's a breakdown of what to look for:
- Reputable Brands: Brands like Standard Ignition (SMP) and Hella are well-regarded in the industry for producing quality electronic components 🎬 See how Standard oil pressure switches are manufactured and tested. that are well-tested. They often serve as OEM suppliers for various manufacturers.
- Value-Oriented Brands: Brands like Crown Automotive focus on replacement parts for Chrysler vehicles and can offer a cost-effective solution that meets original specifications. Other brands in the lower price range can also be effective, but quality can sometimes be inconsistent.
- What to Avoid: Be cautious of no-name brands with no track record. A failing switch can lead to a false sense of security or unnecessary stress. It's worth spending a few extra dollars for a part from a recognized manufacturer.
Pro Tip: Check the Connector
When replacing the switch, inspect the wiring connector. Oil leaking through a failed switch can contaminate the connector, causing a poor connection. A TSB for older Chrysler models with similar issues sometimes recommended replacing a small section of the wiring harness. If the connector is full of oil, clean it thoroughly with electrical contact cleaner before installing the new switch.
Cost of Replacing a Sebring Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $6.79 - $38.72 |
| Shop Labor | $75 - $150 |
| Total DIY Cost | $6.79 - $38.72 |
| Total Professional Cost | $82 - $189 |
Costs are estimates and may vary based on your location, vehicle's engine, and the specific part brand chosen.
Frequently Asked Questions
Where is the oil pressure switch located on my Sebring?
The location varies by engine. On the 2007-2010 2.4L engine, it's located at the front of the engine, behind the intake manifold. 🎬 Watch a step-by-step replacement guide for the 2.4L engine. On the V6 engines, it is often found screwed into the engine block near the oil filter housing or axle shafts. You will likely need to raise the vehicle to access it from underneath.
Can I replace this part myself?
Yes, this is a DIY-friendly job for most home mechanics. It typically requires a special deep socket (an oil pressure switch socket) to fit over the sensor. Access can be tight depending on the engine, but the process involves simply disconnecting the electrical plug and unscrewing the old switch. Always have an oil pan ready to catch drips.
Are there any recalls for this part?
There are no specific recalls for the oil pressure switch on the 2002-2010 Chrysler Sebring. However, Chrysler has issued Technical Service Bulletins (TSBs) for similar models and related issues, like TSB 18-034-14 for a P0520 code on later models, which involved replacing the sensor with a revised part. While not a recall, this shows the manufacturer is aware of potential sensor issues.
My light is flickering, but my oil level is full. What should I do?
If your oil level is correct, the most likely culprit is a faulty oil pressure switch, which is a common issue. It's an inexpensive part to replace and is the best first step. If a new switch doesn't solve the problem, you should have a mechanic perform a manual oil pressure test to rule out more serious issues like a weak oil pump or worn engine bearings.
Helpful Videos
Technical Specifications

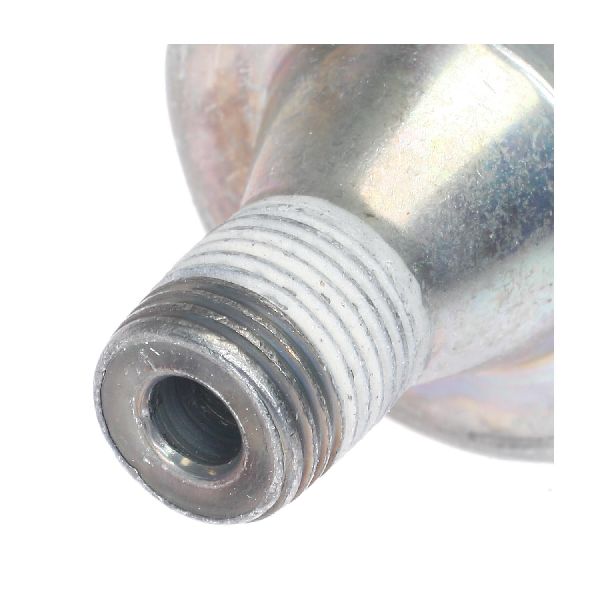

OEM Part Numbers: 05149062AA 5149062AA 68003360AA
The switch is designed to activate the warning light when oil pressure drops below a preset threshold, typically around 3-7 PSI. It uses a single-pin or multi-pin electrical connector depending on the specific engine and year.
