A Guide to the Engine Cooling Fan Module for the 2002-2010 Dodge Grand Caravan
If your Grand Caravan is overheating in traffic or the cooling fans seem to have a mind of their own, this guide is for you.
- First, confirm your van's model year to determine if you need the 2002-2007 module or the 2008-2010 relay system.
- Overheating in traffic that resolves on the highway is the classic symptom of a failed fan module.
- A quality aftermarket module is a reliable and cost-effective alternative to the failure-prone OEM part.
- If your fans are stuck on, disconnect the battery to prevent it from draining while you source the replacement part.
Is Your Grand Caravan Overheating?
One of the most common signs of a failing cooling fan module on a 2002-2010 Dodge Grand Caravan is the engine temperature creeping up during stop-and-go traffic or while idling. Once you get moving on the highway, the temperature often returns to normal because of the natural airflow through the radiator. Other key symptoms include:
- Cooling fans don't turn on: The engine gets hot, but you never hear the fans kick in.
- Cooling fans won't turn off: The fans run constantly, even after you've turned the van off, which can drain your battery.
- A/C blows warm at idle: The air conditioning system needs airflow across the condenser to work properly. If the fans aren't running, your A/C will be weak until you're at highway speed.
- Check Engine Light: A fault in the fan control circuit will often trigger the code P0480.
Important: Which Part Does Your Van Need?
The cooling fan control system changed during this period. It is critical to identify your model year before purchasing a part.
- 2002-2007 Models: These vans use a single, finned, rectangular Engine Cooling Fan Module. It is typically mounted to the metal bumper support, located behind the front grille. This is the most common part to fail and is what most aftermarket replacements address.
- 2008-2010 Models: These vans use a more complex system. There is a low-speed fan relay inside the main fuse box (called the TIPM) and a separate, smaller high-speed fan relay mounted on the driver's side frame rail near the radiator. Failure can occur at the external relay or within the TIPM itself, which is a more complicated diagnosis.
Choosing the Right Aftermarket Module (2002-2007)
The original equipment (OEM) fan module on these vans has a known history of failure. Because of this, choosing a quality aftermarket replacement is a smart and cost-effective decision. Brands like Standard Ignition (SMP) and Gates are well-established manufacturers that produce reliable replacements designed to meet or exceed the original's performance. There is little practical difference in everyday performance between a new aftermarket module and a new OEM part, but the aftermarket option often provides significant cost savings.
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket (Gates, Standard) | $55 - $88 |
| New OEM (Mopar) | $90 - $150 |
| Shop Labor | $75 - $125 |
Pro Tip: Check Your Fan Motors

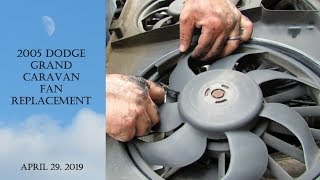

Sometimes, the fan module fails because the fan motors themselves are old and worn out. A struggling motor can draw too much electrical current, burning out the new module prematurely. If your van has high mileage, consider feeling the fans to see if they spin freely (with the engine off). If they feel stiff or noisy, it's wise to replace the entire fan assembly 🎬 See this walkthrough for replacing the cooling fan assembly along with the module.
Frequently Asked Questions
Why are my cooling fans stuck on?
This usually happens when the relay inside the module fails in the 'closed' or 'on' position, creating a continuous electrical circuit. This will drain your battery. You should disconnect the negative battery terminal to prevent this while you wait to perform the repair.
What does the Check Engine Light code P0480 mean?
P0480 stands for "Cooling Fan 1 Control Circuit Malfunction." It means the engine's computer (PCM) has detected a problem in the circuit that operates the cooling fans, such as an open, short, or incorrect voltage reading. A bad fan module is the most common cause of this code on these vans.
Is this a difficult part to replace myself?

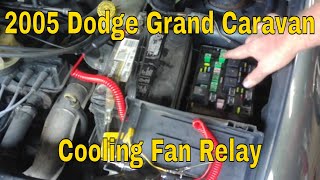

For 2002-2007 models, it is a very feasible DIY job. It requires removing the plastic radiator cover, and possibly loosening the top of the front bumper cover to get access. The original module is often held on by a rivet that you must drill out. The new aftermarket module will come with a bolt to secure it in the same place. The electrical connector is a simple plug. 🎬 Watch: Step-by-step guide to replacing the fan relay The entire job typically takes about an hour.
Can I just replace a fuse instead?
While a blown fuse can prevent the fans from working, the fuse is a safety device. It blows because of an underlying problem, like a short circuit or a failing fan motor drawing too much power. Simply replacing the fuse without fixing the root cause will likely result in the new fuse blowing as well. Always diagnose the circuit if you find a blown fuse.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4868332AC 4868332AE P04868332AE 68310219AA
For 2002-2007 models, the part is a 4-terminal, finned control module/relay. For 2008-2010 models, the system consists of multiple relays.
