Dodge Ram 1500 ABS Wheel Speed Sensor Guide (2002-2010)
Fix your ABS and BRAKE lights for good by understanding which ABS wheel speed sensor your Ram 1500 needs.
- An illuminated ABS light is the most common symptom, often accompanied by a non-working speedometer if the rear sensor fails.
- This is a common DIY repair; the rear sensor is on the differential, while front sensors require removing the brake rotor for access.
- There are no major recalls for this part on 2002-2010 models; failures are due to normal wear and tear.
- Using an OBD2 scanner that reads ABS codes is the best way to identify which specific sensor has failed before buying parts.
Is Your Ram's ABS Light On? Here's What to Know.
If you own a 2002-2010 Dodge Ram 1500, seeing the ABS and BRAKE warning lights on your dashboard is a common issue. More often than not, the problem traces back to a failed ABS wheel speed sensor. These sensors live in a harsh environment at the wheels, exposed to dirt, water, and extreme temperatures, which causes them to fail over time. This guide will help you diagnose the problem, choose the right aftermarket replacement part, and understand what the repair involves.
Don't Ignore the Warning Lights
While your truck will still brake without ABS, the anti-lock feature will not work. This means your wheels can lock up during a hard stop, increasing stopping distances and making you lose steering control, especially on wet or slippery roads. It also disables your traction control system.
Symptoms of a Failing ABS Sensor on a Ram 1500
A bad wheel speed sensor will give you some clear warning signs. Here’s what to look for:
- ABS and/or BRAKE Light On: This is the most common symptom. The lights may stay on constantly or come on and off intermittently.
- Speedometer Not Working or Erratic: Since the rear ABS sensor often provides the signal for the speedometer, a failure can cause your speed reading to be inaccurate or drop to zero. 🎬 Watch: See how a faulty sensor causes a bouncing speedometer.
- Cruise Control Won't Engage: The cruise control system relies on a steady speed signal. If the sensor is faulty, cruise control will be disabled.
- Poor Transmission Shifting: On some models, the vehicle speed signal is also used by the transmission control module. A bad sensor can lead to harsh or erratic shifting.
- ABS Activates Incorrectly: You might feel the ABS pump engaging at low speeds when it shouldn't, like when pulling up to a stop sign.
Choosing the Right Aftermarket ABS Sensor
You don't need to pay dealership prices for a quality replacement. Many aftermarket brands offer parts that meet or exceed original equipment (OE) specifications. Aftermarket sensors for the Ram 1500 are a cost-effective and reliable solution. Here’s a breakdown of reputable brands:
| Brand Tier | Brands | Quality & Performance Notes |
|---|---|---|
| Premium Aftermarket | Delphi, SKF, Standard Ignition (SMP) | These brands are well-regarded for their quality, often manufacturing parts for the original automaker. They use high-quality materials, weather-pack connectors to seal out moisture, and undergo rigorous testing. Choosing one of these brands is a safe bet for a long-lasting repair. |
| Quality Aftermarket | Dorman, Holstein, Walker Products | Dorman is a popular choice that offers direct-replacement parts that are widely available and often include improvements on the original design. Holstein is known for using quality materials and ensuring an OE-like fit. These brands provide a good balance of quality and value. |
| Standard/Value | True Tech, URO Parts | These brands offer a more budget-friendly option. While they can be a good choice for a quick fix or if cost is the primary concern, their long-term durability may not match that of the premium brands. |
How Much Does It Cost to Replace a Ram 1500 ABS Sensor?
The cost depends on whether you do it yourself or take it to a shop. The part itself is affordable, but labor can add up. The rear sensor is generally easier and cheaper to replace than the front sensors.
| Item | Estimated Cost |
|---|---|
| New Aftermarket ABS Sensor | $21 - $158 |
| Shop Labor | $100 - $200 per sensor |
| DIY Total Cost | $21 - $158 |
| Shop Total Cost | $121 - $358 per sensor |
Pro Tip: Check the Right Sensor
Your truck has front sensors and a rear sensor. An erratic speedometer usually points to the rear sensor on the differential. An ABS light without a speedometer issue could be any of the sensors. Using an OBD2 scanner that can read ABS codes will tell you exactly which wheel sensor has failed, saving you time and money.
Frequently Asked Questions (FAQ)
Which sensor do I need? Front or Rear?
Your Ram has a sensor at each front wheel and one sensor on top of the rear differential. If your speedometer is acting up or not working, the rear sensor is the most likely culprit. If the speedometer is fine but the ABS light is on, the problem is likely one of the front sensors or the rear sensor. The best way to know for sure is to have the trouble codes read with an ABS-capable scanner.
Can I replace just the sensor myself?

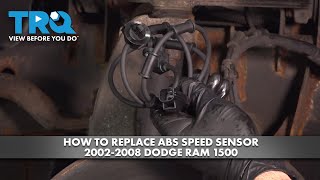

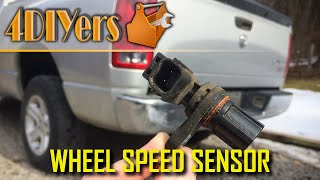

Yes, this is a DIY-friendly job for someone with basic mechanic's tools. The rear sensor is held by one bolt on the differential. 🎬 Watch: How to test and replace the rear speed sensor. The front sensors are also held by a single bolt but require removing the brake caliper and rotor 🎬 See this walkthrough for replacing a front wheel speed sensor. to access. They can sometimes be seized in the wheel hub, requiring some patience to remove.
Are there any recalls for this issue?
For the 2002-2010 model years, there are no major recalls or widespread Technical Service Bulletins (TSBs) for ABS wheel speed sensor failure. Failures are typically due to age, heat, and exposure to the elements. Newer Ram trucks have had recalls for ABS software, but this does not apply to the 2002-2010 generation.
What is the difference between an ABS sensor and a vehicle speed sensor (VSS)?
On the 2002-2010 Ram 1500, these terms are often used interchangeably, which can be confusing. The sensor on the rear differential is technically an ABS sensor, but it also serves as the main vehicle speed sensor for the speedometer. The transmission also has its own input and output speed sensors, but these are for shift timing and won't typically cause an ABS light.
What happens if I don't replace a bad ABS sensor?
Your anti-lock braking system and traction control will not function. While your regular brakes will still work, your ability to stop quickly and maintain control in an emergency or on slippery surfaces will be significantly reduced. It's a safety issue that should be addressed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028187AE 68053861AB 68053861AC 68053861AD
Sensors for the 2002-2010 Dodge Ram 1500 are typically 2-pin magneto-resistive or Hall effect sensors. They are located at each front wheel hub and on the rear differential. The front sensors include a wiring harness with clips, while the rear sensor is a standalone unit that plugs into the main harness.
