Dodge Ram 1500 (2002-2010) Automatic Transmission Mount Replacement Guide
Stop the clunking and vibration in your Ram by understanding and replacing your transmission mount.
- A loud clunk when shifting into gear is the most common symptom of a failed transmission mount on a 2002-2010 Ram 1500.
- Replacement is a straightforward DIY job that requires supporting the transmission with a jack and using basic hand tools.
- Aftermarket brands like Anchor, DEA, and Westar are affordable options, but OEM Mopar mounts are generally higher quality.
- While driving is possible, it should be avoided to prevent damage to other components like the driveshaft and exhaust.
Is Your Ram 1500's Transmission Mount Failing?
When the transmission mount on your Ram 1500 starts to go bad, the symptoms are hard to miss. Because the mount is responsible for both supporting the transmission and absorbing vibrations, you'll notice both noises and harshness when it fails. Don't ignore these signs, as a failed mount can put extra stress on your engine mounts, driveshaft, and exhaust system, leading to more expensive repairs down the road.
Key Symptoms of a Bad Transmission Mount:
🎬 Watch: 5 common symptoms to help you diagnose a bad mount.- Clunking or Banging Noises: A loud clunk when you shift from Park into Drive or Reverse is the most common sign. You might also hear banging sounds when accelerating or decelerating as the loose transmission moves and hits the frame.
- Excessive Vibration: You may feel a new or increased vibration through the floor, seat, or steering wheel. This happens because the worn-out rubber can no longer absorb the vibrations from the transmission.
- Jerky Shifting: While it can be mistaken for an internal transmission problem, a bad mount can make gear shifts feel harsh or jerky.
- Visible Movement: If you can safely look under the truck while a helper shifts the transmission from Reverse to Drive (with the parking brake on and foot firmly on the brake), you may see the transmission lift or move excessively. A failed mount is often visibly separated, with the rubber torn away from the metal.
Known Issues: Recalls and TSBs
Our search for recalls and Technical Service Bulletins (TSBs) specific to the transmission mount on the 2002-2010 Dodge Ram 1500 did not yield any results. However, there have been recalls for later model year Ram trucks related to the transmission's ability to stay in Park, but these do not involve the mount itself. Clunking noises can also be caused by other issues like U-joints or differential problems, so a full inspection is recommended.
Choosing the Right Aftermarket Transmission Mount
When replacing your transmission mount, you have a choice between OEM (Original Equipment Manufacturer) and various aftermarket brands. For a work truck that sees heavy use or towing, an OEM Mopar mount is often considered the most durable option, though it is also the most expensive. However, for daily driving and general use, a quality aftermarket mount provides excellent value.
Here’s a breakdown of common aftermarket brands:
- Pioneer Cable: Often regarded as a higher-quality aftermarket option, with construction that is frequently compared favorably to OEM parts.

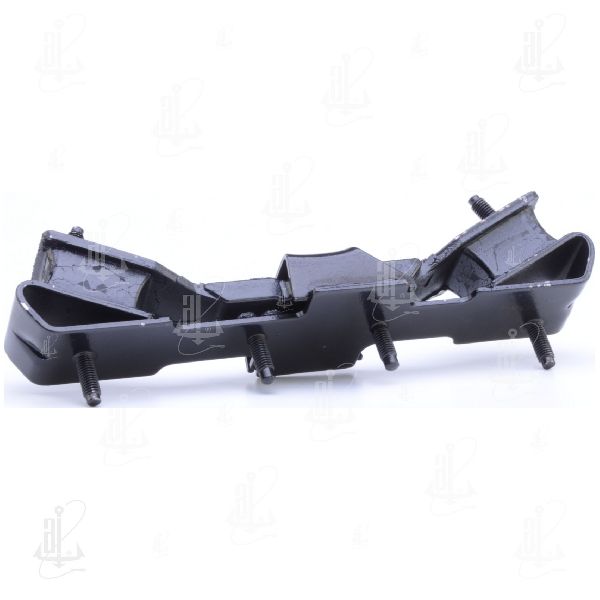

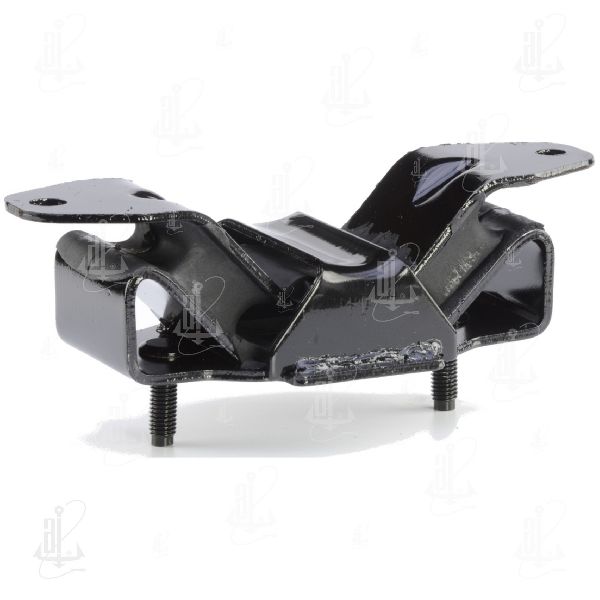

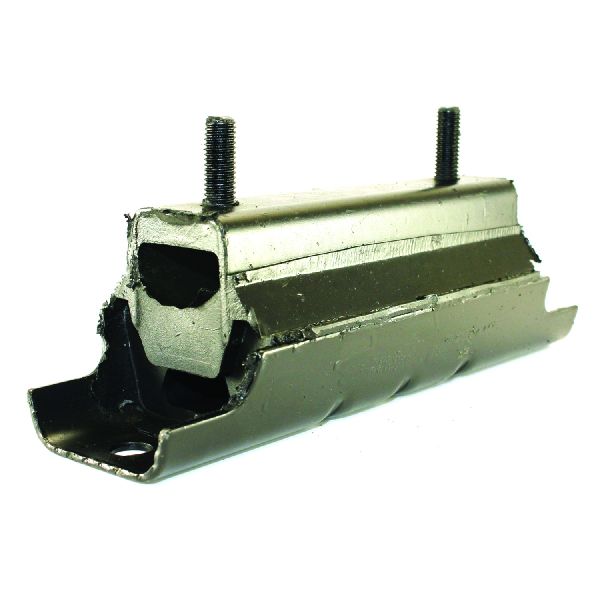

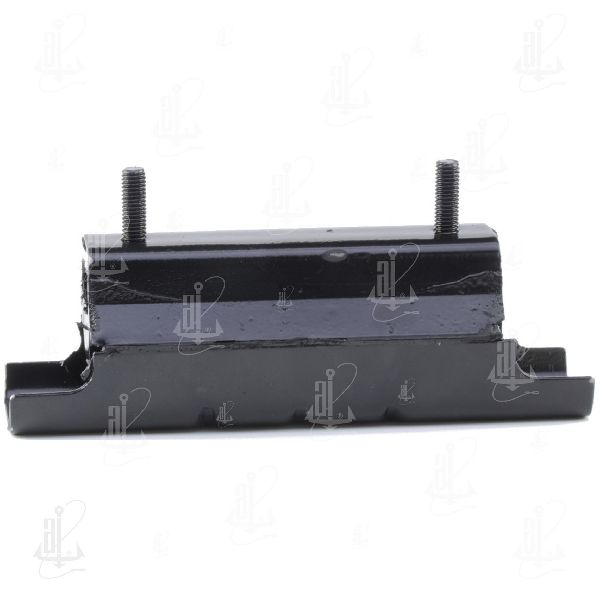

- Anchor / DEA / Westar: These brands are widely available and offer a budget-friendly solution. They are considered standard replacement grade. While they will get the job done, some users in forums report that their rubber may be harder or the metal thinner than OEM, potentially leading to a shorter lifespan or less effective vibration damping. For the price, they are a practical choice for many owners. 🎬 Learn how to make your own heavy-duty polyurethane mount at home.
Cost of Replacing a Transmission Mount
The cost to replace a transmission mount on a 2002-2010 Dodge Ram 1500 can vary based on the parts you choose and whether you do the work yourself.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Mount | $24 - $92 |
| New OEM (Mopar) Mount | $70 - $170 |
| Shop Labor | $100 - $200 |
| Total (DIY) | $24 - $92 |
| Total (Installed at Shop) | $124 - $292 |
Frequently Asked Questions
Is it hard to replace a Ram 1500 transmission mount?
No, it is a relatively simple job for a DIYer with the right tools. The process involves supporting the transmission with a floor jack, unbolting the old mount from the crossmember and transmission, and bolting the new one in place. It typically requires only basic hand tools like a ratchet and sockets.
🎬 See this step-by-step walkthrough for replacing your Ram's transmission mount.How long does a transmission mount last?
Transmission mounts are designed to last a long time, but their lifespan depends on driving conditions. Factors like frequent heavy towing, off-roading, or exposure to oil leaks can cause them to wear out faster. It's common to see them fail after 8-10 years or over 100,000 miles.
Can I drive with a bad transmission mount?
You can drive short distances, but it's not recommended. A completely failed mount can cause the drivetrain to move excessively, which can damage the driveshaft, exhaust pipes, cooling hoses, and wiring. It's best to get it replaced as soon as possible.
Will a new transmission mount fix my clunking noise?
If the clunking is caused by a failed mount, then yes, a replacement will solve the problem. However, a clunking noise when shifting can also be caused by worn U-joints in the driveshaft or issues within the differential. If a new mount doesn't fix the noise, those should be your next areas to inspect.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52013586AB 5037742AC 55366619AE 55366616AH
The automatic transmission mount for the 2002-2010 Dodge Ram 1500 is typically a block-style mount made of steel and vulcanized rubber. It attaches the transmission housing to the frame's crossmember. There are variations depending on whether the truck is 2WD or 4WD, and which engine (3.7L, 4.7L, 5.7L) is installed, so verifying the correct fitment is crucial.
