A Guide to Replacing Ignition Coil Boots on Your 2002-2010 Dodge Ram 1500
Fix nagging engine misfires and restore lost power by choosing the right direct ignition coil boot kit for your truck.
- Replacing only the coil boots is a cost-effective fix for misfires; the coils themselves are often fine.
- Always replace spark plugs at the same time as the coil boots to save on labor and ensure a complete ignition tune-up.
- Before replacing, check for oil in the spark plug tubes, as this points to a valve cover gasket leak that must be fixed first.
- Aftermarket brands like Denso and Standard offer OEM-quality performance for this part.
Is Your Ram 1500 Showing Signs of Bad Coil Boots?
When ignition coil boots start to fail on your 2002-2010 Dodge Ram, the symptoms are often mistaken for a bad ignition coil or spark plug. The rubber or silicone material breaks down over time from heat and exposure to oil, allowing the spark to escape. This is often called "arcing." If you notice any of the following, your coil boots might be the culprit:
- Engine Misfires: The truck may shake or shudder, especially when idling or under load (like towing or going uphill). This is the most common symptom.
- Check Engine Light: A misfire will trigger the check engine light. You'll likely see codes like P0300 (random misfire) or P0301-P0308 (for a specific cylinder). 🎬 Watch this video to learn how to fix engine misfire codes.
- Rough Idle: The engine may run unevenly or feel shaky when you're stopped at a light.
- Poor Acceleration: You might feel a hesitation or lack of power when you press the gas pedal.
- Worse Fuel Economy: When a cylinder misfires, fuel is wasted, leading to more trips to the gas station.
Check for Oil Leaks First
On many Ram engines, the spark plug tubes are sealed by gaskets in the valve cover. If these gaskets leak, oil can fill the tubes and saturate the coil boots. This oil contamination will quickly destroy new boots. Before replacing the boots, inspect the spark plug wells for oil. If you find any, you must replace the valve cover gaskets and tube seals to fix the root cause.

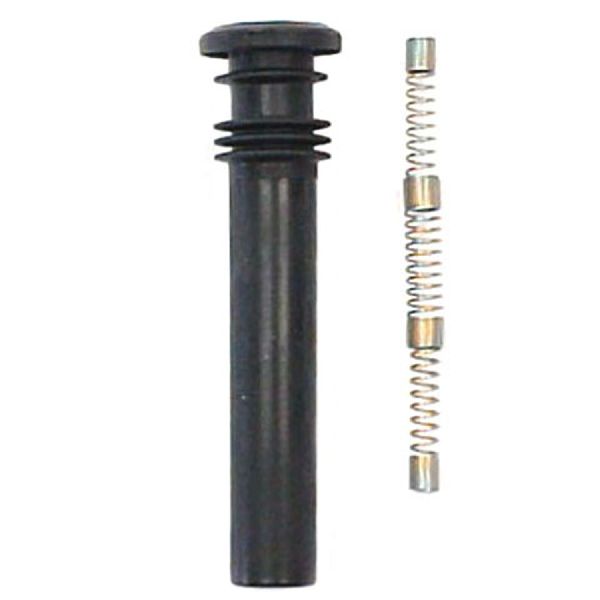

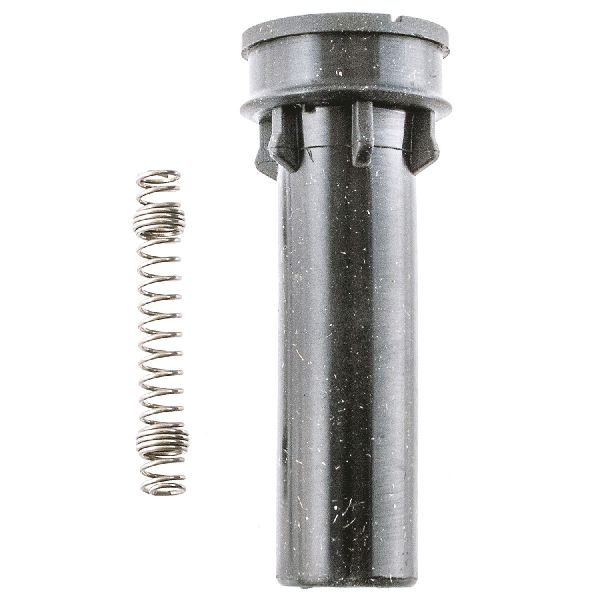

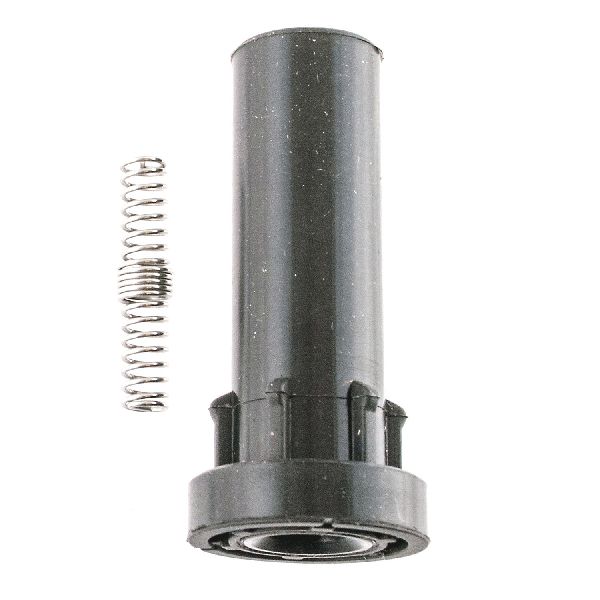

Choosing the Right Aftermarket Coil Boot Kit
For the 2002-2010 Ram 1500, you don't need to buy expensive OEM parts to get reliable performance. The ignition coils themselves are generally robust; it's often just the boots that fail. Replacing only the boots is a cost-effective repair. Here’s a look at the available aftermarket brands:
- Denso: Denso is a massive, highly-respected Japanese parts manufacturer that is an Original Equipment Manufacturer (OEM) for many car brands, including Toyota and sometimes even Mopar's own suppliers. Choosing a Denso boot kit is often equivalent to getting OEM quality without the dealership price tag. They are a top-tier choice for reliability.

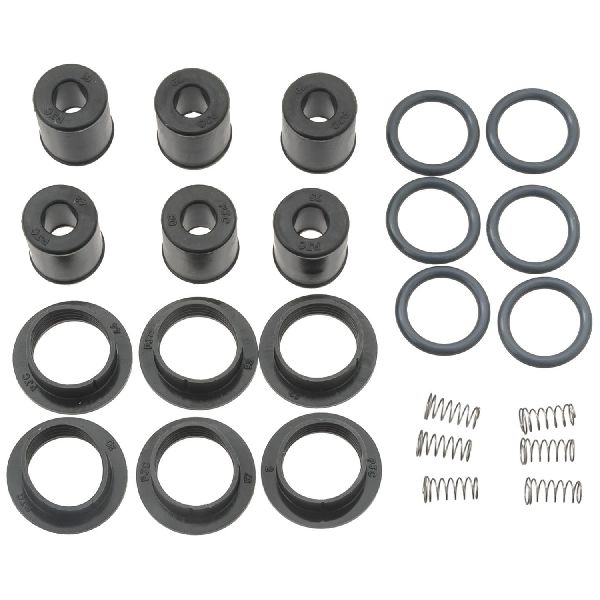

- Standard Motor Products (Standard / SMP): Standard is a well-regarded American aftermarket company that has been around for over 100 years. They manufacture many parts in-house and are known for producing quality replacement components that meet or exceed OEM specifications. They represent a solid, reliable choice for your truck.
Pro Tip: Replace Boots and Plugs Together
Since you have to remove the ignition coils to access the spark plugs, it's highly recommended to replace the spark plugs and the coil boots at the same time. This saves you from doing the same labor twice and ensures the entire ignition path is fresh. Always apply a small amount of dielectric grease to the inside of the new boot where it meets the spark plug and the coil. This keeps moisture out and makes future removal easier.
Cost of Direct Ignition Coil Boot Kits (2002-2010 Dodge Ram 1500)
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket Kit (Denso, Standard) | $34.34 - $86.43 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions
Do I have to replace all the coil boots at once?
It is highly recommended. The boots are all the same age and have been exposed to the same conditions. If one has failed, others are likely to fail soon. Replacing them all as a set is preventative maintenance that saves you time and future headaches.
What's the difference between the coil and the boot?
The ignition coil is the electronic component that transforms the truck's 12-volt power into the high voltage needed for a spark. The boot is simply the insulated rubber tube that connects the coil to the spark plug. On these Ram trucks, the boot can be replaced separately from the coil.
🎬 See how to replace ignition coil boots on a Dodge Ram.Can I reuse my old coil boots if I'm changing the spark plugs?
It's not a good idea. The rubber degrades over time and can develop tiny cracks or holes that cause misfires. Given the low cost of a new boot kit, it's cheap insurance to replace them whenever you do a spark plug job.
Is this a difficult job to do myself?
For most 2002-2010 Ram 1500 models, this is a straightforward DIY job. Access to the coils is generally good after removing the engine cover or air intake resonator. The coils are typically held on by one or two small bolts. The job requires basic hand tools like a ratchet and sockets.
🎬 Follow this step-by-step guide to replace your ignition coils.Helpful Videos
Technical Specifications
Varies by engine (3.7L V6, 4.7L V8, 5.7L HEMI V8). The 5.7L HEMI engine uses two spark plugs per cylinder, but only one coil-on-plug design per cylinder. The boot connects the coil to one of these plugs. The boot material is typically high-temperature silicone.
