A Guide to Replacing Disc Brake Calipers on a 2002-2010 Dodge Ram 1500
Keep your Ram stopping safely and effectively by understanding when and how to replace your brake calipers.
- Sticking or seized calipers are a common issue on 2002-2010 Ram 1500s, leading to pulling and uneven pad wear.
- Always replace calipers in pairs (both fronts or both rears) to maintain balanced braking.
- Consider replacing flexible brake hoses at the same time, as they can cause similar symptoms if they fail internally.
- For trucks in rust-prone areas, choosing an aftermarket caliper with a protective powder or zinc coating can significantly extend its life.
Is it Time to Replace Your Ram 1500's Brake Calipers?
Brake calipers on a heavy truck like the 2002-2010 Ram 1500 work hard. Over time, exposure to heat, moisture, and road salt can cause them to fail. The most common failures are seized pistons or stuck slide pins. A seized piston means the caliper can't apply or release pressure correctly, while stuck slide pins prevent the caliper from moving freely, leading to uneven pad wear. It's important to address caliper issues promptly to ensure your truck's braking performance and safety.
Key Failure Symptoms
- Vehicle Pulling to One Side: When braking, a bad caliper can cause the truck to pull left or right. This happens when one caliper applies more or less force than the other.
- Uneven Brake Pad Wear: If you notice one brake pad is significantly more worn than the other (either inner vs. outer pad on the same wheel, or one side of the truck vs. the other), it's a classic sign of a sticking caliper or slide pins.
- Brake Fluid Leaks: Puddles of fluid near your wheels are a serious sign of a compromised caliper seal. Any fluid leak in the brake system is critical and needs immediate attention.
- Spongy or Soft Brake Pedal: While this can have many causes, a leaking caliper or air in the system from a caliper replacement can lead to a soft pedal feel.
- Grinding or Squealing Noises: A stuck caliper can keep the brake pad in constant contact with the rotor, causing a grinding noise and rapid wear.
Known Issues: Recalls and Service Bulletins
For early models in this generation, specifically the 2002 Ram 1500 4x4, a recall (NHTSA ID: 02V159000, Chrysler No. B20) was issued. The issue involved the rear axle flange weld, which could allow the entire brake caliper assembly to rotate and potentially sever the brake line, causing a loss of rear brakes. Dealers were to install reinforcement collars on the rear axle. While this isn't a caliper failure itself, it's a critical safety issue for owners of these specific trucks to be aware of.
Choosing the Right Aftermarket Caliper
When replacing calipers on your Ram, you have several options. You don't necessarily need to buy from the dealer. Aftermarket brands offer a range of products from standard replacements to performance upgrades, often with features like protective coatings to fight rust.
Aftermarket Brand Tiers for Ram 1500
| Tier | Brands | Description |
|---|---|---|
| Standard Replacement | Cardone, Raybestos, Centric, Dynamic Friction | These brands provide reliable, direct-fit replacements that meet or exceed original specifications. They are a cost-effective choice for daily driving and normal use. Cardone and Raybestos are widely available, though some users report Cardone quality can be inconsistent. Raybestos and Centric are generally well-regarded for standard replacements. |
| Premium / Coated | Cardone ULTRA, Raybestos Element3, PowerStop (Autospecialty) | This tier offers calipers with protective coatings (powder coating or zinc plating) that prevent rust and corrosion, which is a great benefit for trucks in wet or snowy climates. They often come with new hardware and are built to a higher standard than basic remanufactured units. |

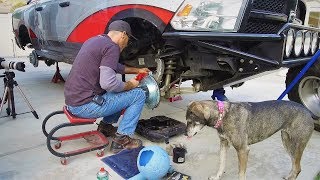

| Performance Upgrade | PowerStop (Z36 Truck & Tow), Baer | For owners who tow, haul heavy loads, or want improved braking performance, brands like PowerStop offer complete kits. These often include powder-coated calipers, drilled and slotted rotors, and carbon-fiber ceramic pads for better heat dissipation and stopping power. | 🎬 See how to install and test a PowerStop performance upgrade.
| OEM-Focused | Crown Automotive | Crown specializes in parts for Chrysler, Dodge, and Jeep vehicles and aims to provide parts that are very close to the original factory design and quality. |
Pro Tip: Loaded vs. Unloaded Calipers
You can buy calipers "loaded" or "unloaded." A loaded caliper comes with new brake pads and all the necessary mounting hardware (brackets, clips, etc.) already installed. An unloaded caliper is just the caliper body itself. For a simpler installation and to ensure all components are fresh, a loaded caliper is often the best choice for a DIY replacement.

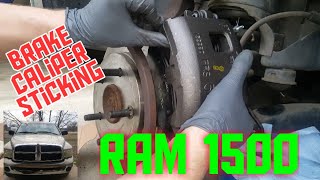

🎬 Watch this step-by-step guide on replacing your front brake calipers.Frequently Asked Questions
Should I replace calipers in pairs?
Yes, it is highly recommended. Just like brake pads and rotors, calipers should be replaced in pairs (both front or both rear) to ensure even braking performance and prevent pulling. Replacing only one can lead to an imbalance in braking force.
What are the most common mistakes when ordering?
The biggest mistake is getting the wrong part for your specific truck. There are differences between 2WD and 4WD models, and front vs. rear calipers. Also, ensure you get the correct side 🎬 Learn how to properly replace the rear brakes on your Ram. (driver vs. passenger). A critical installation error is installing a caliper on the wrong side, which places the bleeder screw on the bottom. The bleeder screw MUST be at the top to properly bleed air from the system.
Do I need to replace the brake hoses at the same time?
It's a very good idea, especially on an older truck. Over time, the internal lining of rubber brake hoses can collapse or degrade, acting like a one-way valve. This can trap hydraulic pressure and cause the caliper to stick, mimicking a seized caliper. Replacing the hoses is a relatively low-cost preventative measure.
What is a "core charge"?
Most remanufactured calipers have a core charge. This is a deposit you pay when you buy the part. You get this deposit back when you return your old, worn-out caliper to the store. This allows the manufacturer to remanufacture your old part for a future customer.
Helpful Videos
Technical Specifications
OEM Part Numbers: R5104758AA R5104759AA
Brake calipers for the 2002-2010 Dodge Ram 1500 are typically cast iron floating calipers. Front calipers are dual-piston designs, while rear calipers are single-piston. Brackets and piston materials (phenolic vs. steel) can vary by year and manufacturer.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
