A Ram Owner's Guide to the 2002-2010 Intake Manifold Gasket Set
Coolant leaks, rough idling, and poor performance on your Ram 1500 could all point to a failed intake manifold gasket.
- Symptoms often include coolant leaks, overheating, a rough idle, and a Check Engine Light with lean codes (P0171, P0174).
- For V8 engines (4.7L/5.7L), it is critical to also replace the plenum 'belly pan' gasket to fix common oil consumption issues.
- Aftermarket gaskets from brands like Fel-Pro, Victor Reinz, and Cometic often provide a more durable seal than the original factory parts.
- This is a manageable DIY job for an experienced home mechanic, but requires careful cleaning of surfaces and correct torque procedures.
Is Your Ram's Intake Manifold Gasket Failing?
The intake manifold gaskets on the 2002-2010 Ram 1500 are known weak points, especially with age and repeated heat cycles. The original gaskets can become brittle, flatten, and lose their ability to seal properly. This can lead to several noticeable problems.
🎬 Watch: A breakdown of common intake manifold gasket failure symptomsCommon Failure Symptoms
- Coolant Leaks: This is one of the most common signs. You might notice puddles of green, yellow, or red fluid under the front of your truck. The leak often occurs at the corners of the intake manifold where it meets the cylinder heads.
- Engine Overheating: A significant coolant leak will cause the engine to run low on coolant, leading to overheating. This is a serious issue that can cause major engine damage if ignored.
- Rough Idle & Misfires: When the gasket fails, it can create a vacuum leak, allowing unmetered air into the engine. This throws off the air-fuel ratio, causing the engine to idle roughly, shake, or misfire. You may hear a distinct hissing or whistling sound from the engine bay.
- Poor Fuel Economy: Your truck's computer will try to compensate for the extra air from a vacuum leak by adding more fuel, causing your gas mileage to drop.
- Check Engine Light: A vacuum leak will often trigger a Check Engine Light with lean condition codes like P0171 and P0174, or misfire codes like P0300.
A Special Note for V8 Owners: The "Belly Pan" Gasket
On V8 engines like the 4.7L and 5.7L, there's another gasket on the bottom of the intake manifold called the plenum pan gasket, or "belly pan." It's known to leak, but it leaks oil, not coolant. This internal leak allows oil from the crankcase to be sucked into the intake manifold, leading to increased oil consumption and spark knock (pinging) during acceleration. When replacing your main intake gaskets, it is highly recommended to replace this plenum gasket as well. Aftermarket kits often include an improved, thicker aluminum plate to replace the original steel one, which helps prevent future leaks.
Choosing the Right Aftermarket Gasket Set
When it's time for a replacement, you'll find that aftermarket gaskets are often a significant upgrade over the original factory parts. Many use improved materials that are more resistant to heat and modern coolants. Here's a look at some of the brands available:
- Standard/OEM Quality (Victor Reinz, Mahle): Brands like Victor Reinz and Mahle are often original equipment manufacturers for many car companies. They provide reliable, OEM-quality gaskets that are a dependable choice for a stock replacement. Forum users and mechanics generally hold them in high regard.
- Premium Aftermarket (Fel-Pro): Fel-Pro is a well-trusted name in the aftermarket and a go-to for many professional mechanics. They often engineer their gaskets to solve known factory design flaws and use high-quality materials designed for the repair environment.
- Performance (Cometic, Edelbrock): For modified trucks or those seeking the most robust seal, brands like Cometic and Edelbrock offer high-performance options. Cometic is known for its durable Aramid fiber or Multi-Layer Steel (MLS) gaskets that resist blowouts under high pressure, making them ideal for supercharged or high-compression engines. Edelbrock also provides high-quality gaskets designed for optimal flow and sealing.
- Economy (Apex): Apex gaskets are a budget-friendly option for getting your truck back on the road. While they meet basic requirements, they may not offer the same longevity or advanced materials as premium brands.
Pro Tip: Regardless of the brand you choose, make sure you get the correct gasket set for your specific engine (3.7L V6, 4.7L V8, or 5.7L HEMI V8), as they are not interchangeable. Also, plan on replacing the intake manifold bolts. Many are torque-to-yield, meaning they are designed for one-time use and must be replaced to ensure proper clamping force.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $15 - $165 |
| New OEM Gasket Set | $25 - $40 |
| Shop Labor | $220 - $371 |
| Total Professional Replacement | $554 - $795 |
Frequently Asked Questions
Do I need to use sealant on the new gaskets?
Most modern intake manifold gaskets are designed to be installed dry. However, some applications require a small dab of RTV silicone at the corners where the cylinder heads meet the engine block. Always follow the specific instructions included with your new gasket set or consult a repair manual.
Are there any recalls for this issue?
My search did not find any specific safety recalls from the NHTSA for the intake manifold gaskets on the 2002-2010 Dodge Ram 1500. There was a recall for intake manifold corrosion on some models, but it was related to a fire hazard from a potential fuel leak, not the gasket sealing issue itself. There are, however, Technical Service Bulletins (TSBs) related to diagnosing leaks and oil consumption from the plenum gasket.
Can I replace the intake manifold gasket myself?

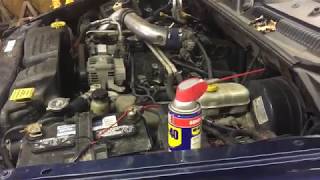

Yes, this is a feasible DIY job for someone with moderate mechanical experience. The process involves draining the coolant, removing the air intake system, disconnecting fuel lines and electrical connectors, and then unbolting the manifold itself. It is critical to clean the mating surfaces on the engine and manifold thoroughly and to tighten the new bolts to the 🎬 Watch: How to replace the intake gasket on a 4.7L correct torque specification in the proper sequence.
What's the difference between the 4.7L and 5.7L HEMI gasket sets?
The gasket sets for the 4.7L V8 and the 5.7L HEMI V8 are different and not interchangeable. The port shapes, sizes, and bolt patterns are unique to each engine design. 🎬 See this step-by-step 5.7L HEMI intake manifold gasket replacement Always verify you are purchasing the correct part number for your truck's specific engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68545089AA
Gasket sets are specific to the 3.7L V6, 4.7L V8, and 5.7L HEMI V8 engines. Materials vary from standard nitrile rubber composites to high-performance Aramid fiber and multi-layer steel (MLS). V8 kits may also include a plenum pan gasket and plate.
