A Mechanic's Guide to the 2002-2010 Dodge Ram 1500 Engine Timing Chain Guide
Don't let a rattling noise turn into a catastrophic engine failure; here's what you need to know about your Ram's timing chain guides.
- A rattling noise from the front of the engine on startup is the #1 symptom of a failing timing chain guide.
- Do not drive your truck if you suspect a timing chain issue; a complete failure can destroy your engine.
- Due to the high labor cost, always replace the guides, chains, and tensioners as a complete kit.
- Quality aftermarket brands like Cloyes, Melling, and INA are trusted alternatives to more expensive Mopar parts.
Is Your Ram's Timing Chain Guide Failing?
The timing chain guides in the 2002-2010 Dodge Ram 1500 are wear items. The original guides are often made of plastic that can become brittle and break apart after many years and heat cycles. When a guide fails, the timing chain loses its support, creating slack. This slack can cause a range of symptoms, from annoying noises to engine-destroying failures.
Symptoms of a Failing Timing Chain Guide
- Rattling Noise on Startup: The most common symptom is a distinct rattling or clattering sound coming from the front of the engine, especially during a cold start. 🎬 Watch: Hear what a failing timing chain rattle sounds like This noise may fade as the engine warms up and oil pressure builds.
- Engine Misfires or Rough Idle: A loose chain can jump a tooth, throwing off your engine's timing. This leads to the engine running rough, misfiring, or feeling sluggish.
- Check Engine Light: If the timing is off, the truck's computer will often detect a problem between the crankshaft and camshaft sensors, triggering a Check Engine Light. A common trouble code associated with this is P0016 (Crankshaft/Camshaft Position Correlation). 🎬 See how to diagnose a P0016 code and low power
- Metal Shavings in Oil: In severe cases, pieces of the broken plastic guide can fall into the oil pan. You might see these plastic or metal shavings during an oil change, which is a sign of serious internal engine wear.
No Official Recalls
As of early 2026, there are no specific NHTSA recalls for timing chain guide failure on the 2002-2010 Dodge Ram 1500. This type of failure is generally considered a maintenance issue related to the age and mileage of the vehicle.

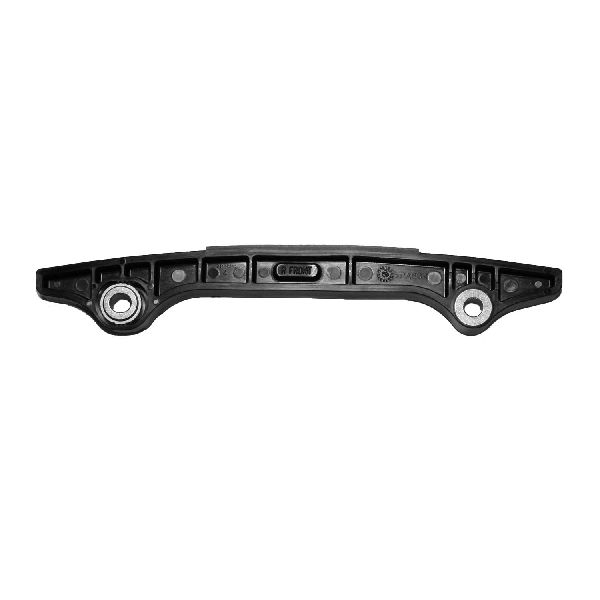

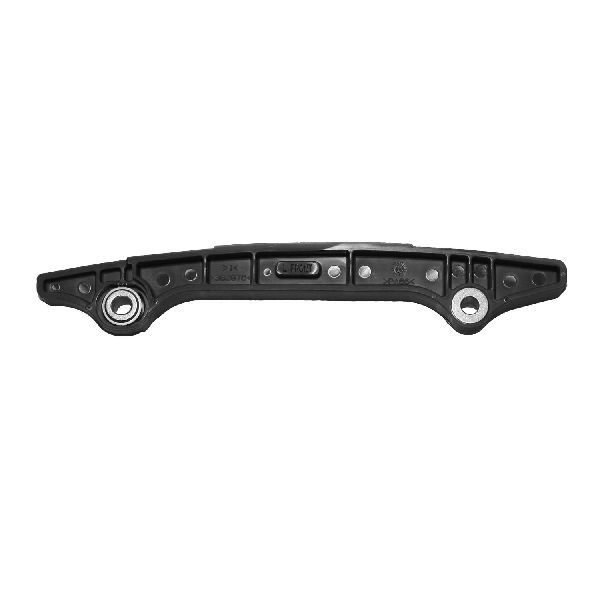

Choosing the Right Aftermarket Timing Chain Guide
When shopping for a new timing chain guide, you have several options that range in quality and price. Since the labor to replace this part is so expensive, it's not a job you want to do twice. Investing in a quality part is highly recommended.
Brand Quality Tiers
- OEM (Mopar): Mopar is the original factory part for your Ram. It guarantees a perfect fit but is the most expensive option. A full Mopar timing kit can cost over $350.
- Premium Aftermarket (Cloyes, Melling, INA): These brands are trusted by many professional mechanics. Cloyes and Melling have a strong reputation in forums for durability and quality that meets or exceeds OEM standards. INA is a well-regarded OEM supplier for many European and domestic brands, known for its precision engineering. These brands offer excellent performance and are a reliable choice for a long-lasting repair.
- Standard Aftermarket (Crown Automotive): Crown Automotive provides direct-fit replacement parts that offer a good balance of value and quality. They are a solid budget-friendly option if you need to get your truck back on the road without the high cost of OEM parts.
Pro Tip: Replace the Whole Timing Set
Replacing a timing chain guide is a very labor-intensive job that requires removing the entire front of the engine. Because of the high labor cost, it is strongly recommended to replace all timing components at once. This includes the timing chains, all guides, the tensioners, and the crankshaft and camshaft sprockets. This is also the perfect time to inspect and consider replacing the water pump and oil pump.
Timing Chain Guide Replacement Cost
The majority of the cost for this repair is labor. The part itself is relatively inexpensive compared to the time it takes to access it.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $650 - $950 |
| New OEM (Mopar) Kit | $350 - $500+ |
| New Aftermarket Kit | $95 - $300 |
| Total Professional Replacement | $1,400 - $1,900+ |
Frequently Asked Questions (FAQ)
What happens if I don't replace a broken timing chain guide?
Ignoring a broken guide is extremely risky. The chain can skip time, causing bent valves and piston damage. If the chain breaks completely, it will lead to catastrophic engine failure, requiring a complete engine replacement.
Is this a DIY job?
This is an advanced repair. It requires specialized tools, like a harmonic balancer puller, and a deep understanding of engine timing. Mistakes can destroy the engine. For most owners, this job is best left to a professional mechanic.
🎬 Watch this full walkthrough of the 4.7L timing chain replacementShould I replace just the one broken guide?
No. The high labor cost makes it impractical to only replace one part. If one guide has failed due to age and heat, the others are likely in similar condition. Always replace the guides, chains, and tensioners as a complete kit to ensure a reliable, long-term repair.
Do the 3.7L, 4.7L, and 5.7L engines all have the same problem?
Yes, all three engines used in this generation of Ram 1500 use timing chains with plastic guides that can become brittle over time. The fundamental design and potential for failure are similar across all of these engines, though the specific parts are different.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53021168AA 4893429AA 53021292AB 53020910
Fitment and material vary by engine (3.7L V6, 4.7L V8, 5.7L V8). Guides are typically made of high-grade polymer (plastic) or a combination of plastic and metal. Always verify the part number with your truck's VIN and specific engine before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
