Engine Water Pump Guide for the 2002-2010 Dodge Ram 1500
Keep your Ram's engine from overheating by understanding when and how to replace a failing water pump.
- Look for coolant leaks, overheating, and whining noises as primary signs of failure.
- Replacing the water pump is a manageable DIY job, but keeping bolts organized is critical.
- Always use the correct HOAT (G-05) coolant to prevent damage to the new pump.
- Consider replacing the thermostat and serpentine belt at the same time for preventative maintenance.
Is Your Ram's Water Pump Failing?
A bad water pump on your 2002-2010 Dodge Ram 1500 will give you clear warning signs. Ignoring them can lead to major engine trouble, so it's important to act fast. Here’s what to look and listen for:
- Coolant Leaks: This is the most common sign. You might see a puddle of green, orange, or pink fluid under the front-center of your truck. The leak usually comes from a worn-out gasket or a failing seal on the pump itself. Sometimes, you'll just see a white, crusty trail left behind after the coolant evaporates.
- Engine Overheating: If the temperature gauge on your dash starts climbing into the red, your water pump may not be circulating coolant effectively. You might also see steam coming from under the hood. If your engine overheats, pull over immediately to prevent serious damage like a cracked cylinder head.
- Whining or Grinding Noises: A high-pitched whining or a grinding sound from the front of the engine can signal a failing water pump bearing. This noise often changes with engine RPM. 🎬 See how to diagnose and repair a 5.7L Hemi water pump. It's caused by a loose pulley or worn internal bearings.
- Wobbly Pulley: If you can safely inspect the front of the engine (with the truck off), check the water pump pulley. If it feels loose or wobbles, the bearing is shot and the pump needs to be replaced immediately.
Do Not Drive an Overheating Vehicle
Continuing to drive with an overheating engine can cause catastrophic damage, including warped heads and blown head gaskets. If you see steam or the temperature gauge is in the red, stop the engine as soon as it's safe to do so.
Choosing the Right Aftermarket Water Pump
When replacing the water pump on your Ram, you have a choice between OEM (Mopar) and various aftermarket brands. While some owners prefer sticking with genuine Mopar parts, many aftermarket brands offer excellent quality, often at a better price. Here’s a breakdown of available brands:
- Premium Aftermarket (OEM Quality): Brands like Gates and Melling are well-regarded in the industry. Gates is a long-standing company known for quality parts, and Melling is an OE supplier that emphasizes superior sealing technology to prevent common failures. 🎬 Learn more about Melling's specialized water pumps for Hemi engines. These are solid choices for a reliable, long-lasting repair.
- Quality Mid-Range: Dayco and US Motor Works are generally considered to be of similar quality to Gates and offer a good balance of price and performance. Many professional technicians and DIYers use these brands with confidence.
- Value-Oriented: Brands like GMB and WJB are more budget-friendly. While GMB is an OE supplier for some car companies, some forums mention potential issues with their seals when used with certain types of coolant. These can be a viable option if budget is the primary concern, but be aware of mixed reviews.
Pro Tip: Replace More Than Just the Pump
While you have the cooling system drained and the front of the engine apart, it's a smart move to replace the thermostat, radiator hoses, and serpentine belt. This can save you from having to do a similar job again in the near future.
Cost of Replacing a Dodge Ram 1500 Water Pump
The total cost depends on whether you do the job yourself or hire a professional mechanic. The parts themselves are relatively affordable, but labor can add a significant amount to the final bill.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $70 - $483 |
| OEM Mopar Water Pump | $220 - $755 |
| Shop Labor | $210 - $356 |
| Total Professional Replacement | $280 - $1,111+ |
Frequently Asked Questions (FAQ)
Are there any recalls for the 2002-2010 Ram 1500 water pump?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any water pump-specific recalls for the 2002-2010 Dodge Ram 1500. There was a recall (NHTSA 17V-562) for water pumps on 2013-2017 Ram trucks with diesel engines, but this does not apply to the 2002-2010 gasoline models.
Can I replace the water pump myself?
Yes, this is a feasible DIY job for someone with moderate mechanical experience. The process involves draining the coolant, removing the fan shroud and fan clutch, taking off the serpentine belt, and then unbolting the pump. The most challenging part is often removing the fan clutch nut, which has reverse threads on some models. Keeping the numerous bolts organized is crucial, as they are different lengths.
🎬 Watch this step-by-step guide for 2003-2008 Ram water pump replacement.What kind of coolant should I use for my Ram 1500?
It is critical to use the correct type of coolant. For this generation of Ram, you should use a Hybrid Organic Acid Technology (HOAT) coolant, often specified as Mopar G-05. Using the wrong type, like a conventional green coolant, can lead to corrosion and premature failure of the new water pump and other cooling system components.
Should I get a water pump with a metal or composite impeller?
Both metal and composite (plastic) impellers can perform well. Some aftermarket brands like Gates offer options with metal impellers, which some users prefer for durability. However, modern composite impellers are engineered to be lightweight and efficient. The key is choosing a quality brand, as the overall construction and bearing quality are more important than just the impeller material.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53022192AE 53022192AF 68346912AA 53022192AK 53022192AI 53022192AJ

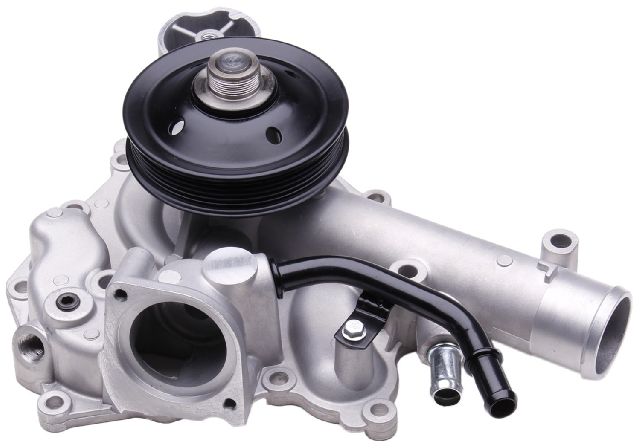

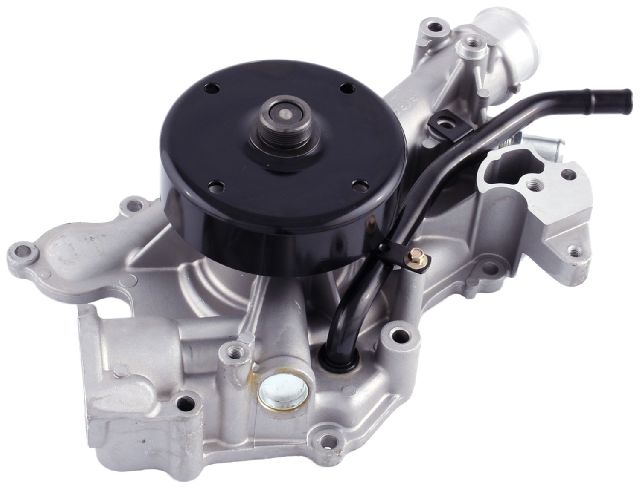

The water pump for the 2002-2010 Dodge Ram 1500 is driven by the serpentine belt. It features a housing typically made of aluminum with multiple mounting bolts of various lengths. The design varies slightly between the 3.7L, 4.7L, and 5.7L Hemi engines.
