Diagnosing and Replacing the Vehicle Speed Sensor on a 2002-2010 Dodge Ram 1500
If your speedometer is acting up or your transmission is shifting poorly, a bad speed sensor is a likely culprit.
- Match your truck's symptoms to the correct sensor: speedometer problems point to the rear differential sensor, while shifting problems point to the transmission sensors.
- This is a simple and inexpensive repair you can do yourself in under an hour with basic tools.
- Quality aftermarket brands like Delphi or Standard Ignition offer reliable performance without the higher cost of an OEM part.
- The input and output sensors on the transmission are often the same part number and can be replaced as a pair for peace of mind.
Which Speed Sensor Does Your Ram Need?
Before buying a part, it's important to know which sensor has failed. Your truck's symptoms are the biggest clue. These trucks have more than one sensor that measures speed, and they do different jobs.
- Rear ABS/Wheel Speed Sensor: This sensor is mounted on top of the rear differential. 🎬 Watch this guide to test and replace the rear sensor. Its main job is to report the vehicle's speed to the speedometer and the ABS control module. If your speedometer is dead or inaccurate and your ABS light is on, this is almost always the sensor that needs replacing.
- Transmission Output Speed Sensor: This sensor is located on the driver's side of the transmission, toward the rear. It tells the powertrain control module (PCM) how fast the transmission's output shaft is spinning, which is essential for proper gear shifting. A failure here will likely cause shifting problems, not a bad speedometer reading.
- Transmission Input Speed Sensor: Also on the driver's side of the transmission, but closer to the front. 🎬 See how to quickly swap out the transmission input sensor. It works with the output sensor to make sure the transmission is in the right gear. Often, the input and output sensors are the exact same part.
Common Symptoms of a Bad Speed Sensor
A failing speed sensor will usually make itself known with obvious performance issues. Pay attention to these signs to know if it's time for a replacement.
Signs of a Failing Rear ABS/Differential Sensor:
- Speedometer is erratic or doesn't work at all.
- ABS and/or BRAKE warning lights are illuminated on the dashboard.
- Cruise control no longer functions.
- Associated trouble code is typically P0500.
Signs of a Failing Transmission Speed Sensor:
- Harsh, erratic, or delayed transmission shifting.
- Truck feels stuck in one gear (limp mode), often second or third gear.
- Check Engine Light is on.
- Associated trouble codes often include P0700, P0720, P0725, or P0733.
Choosing the Right Aftermarket Sensor
You don't need to buy an expensive OEM Mopar part for this repair. Many aftermarket brands offer reliable quality that meets or exceeds original specifications. Here’s how the available brands generally stack up based on reputation and owner feedback.
Premium Aftermarket (OEM-Quality): Brands like Delphi and Standard Ignition (SMP) are well-regarded for their electronics. They are known for being direct OE-replacement suppliers and offer excellent reliability. Choosing one of these is a safe bet for a long-lasting repair.
Specialty & Mid-Grade: Crown Automotive is a known specialist in Mopar parts and is generally considered a good option, though some users report mixed results on electronics compared to mechanical parts. Rostra Powertrain is a dedicated transmission parts manufacturer with a solid reputation for their sensors and solenoids.
Standard & Value: Brands like Holstein, Walker Products, and True Tech offer a more budget-friendly option. They are a good choice if cost is the primary concern. Holstein is noted for often including new mounting hardware, which can be helpful.
Pro Tip: When replacing the sensor, it's a good idea to apply a small amount of dielectric grease to the electrical connector pins to prevent corrosion, and a light coat of clean transmission fluid or motor oil on the o-ring to ensure it seats properly without tearing.
Known Issues, Recalls, and TSBs
There are no major recalls issued by the NHTSA for vehicle speed sensor failure on the 2002-2010 Dodge Ram 1500. Likewise, there are no widespread Technical Service Bulletins (TSBs) for this specific issue within this model year range. The failures are typically due to normal wear and tear, heat cycles, and exposure to the elements over time.
Cost of Replacing a Vehicle Speed Sensor
| Part Type | Cost Range |
|---|---|
| New Aftermarket Sensor | $21.22 - $47.74 |
| New OEM (Mopar) Sensor | $50 - $100 (estimated) |
| Shop Labor Cost | $100 - $150 (estimated) |
Frequently Asked Questions
Can I replace the speed sensor myself?
Yes, this is a very DIY-friendly job for both the rear differential and transmission sensors. Both are held in by a single bolt and have an easily accessible electrical connector. Basic hand tools, like a ratchet and socket, are all that's needed. The job can typically be done in under an hour.
Where is the speed sensor located?
It depends on the sensor. The rear wheel speed sensor is on top of the rear differential housing, in the center. The transmission input and output speed sensors are on the driver's side of the transmission case. The output sensor is toward the rear, and the input sensor is toward the front.
Do I need to replace the input and output sensors at the same time?
Not necessarily, but it's often a good idea. They are the same age and have endured the same conditions. Since they are inexpensive and the part number is often identical for both, replacing them as a pair can prevent you from having to do the same job again in the near future.
Will the check engine light turn off by itself after replacement?
Sometimes. After replacing the sensor, the computer may recognize the valid signal and turn the light off after a few drive cycles. However, the fastest and most reliable method is to clear the codes using an OBD2 scanner or by disconnecting the battery's negative terminal for about 15 minutes.
Helpful Videos
Technical Specifications

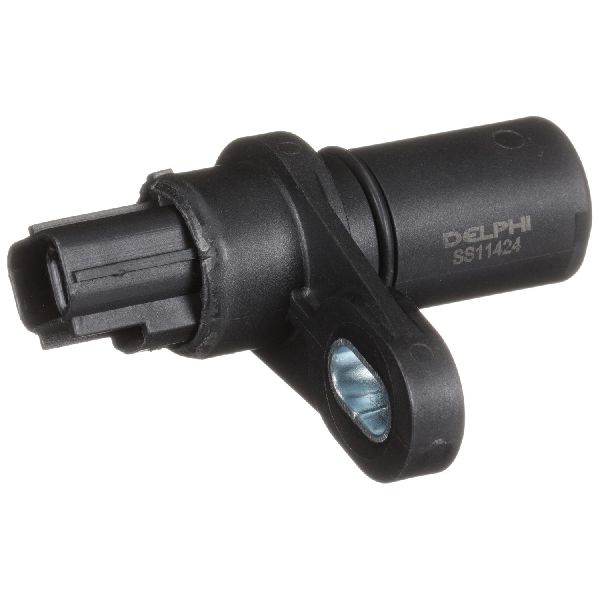

OEM Part Numbers: 5083204AB 5083204AA 68060333AA 68060333AB
Typically a 2-pin magnetic or Hall effect sensor, held in place by a single bolt. The rear differential sensor and transmission sensors are not interchangeable.
