A/C Condenser Guide for the 2002-2010 Ford Explorer
If your Explorer's A/C is blowing warm, the condenser is a likely suspect—here's what you need to know before you buy a new one.
- The most common symptom of failure is warm A/C air, especially when the vehicle is stopped.
- Replacement is not a DIY job for beginners due to the need for special refrigerant handling equipment.
- Always replace the receiver/drier or accumulator at the same time as the condenser to protect the system.
- For reliability, choose a top-tier aftermarket brand like Denso, which offers OEM-level quality.
Is Your Explorer's A/C Blowing Warm Air?
When the air conditioning in your 2002-2010 Ford Explorer stops blowing cold, a failing A/C condenser is one of the most common culprits. Because it sits at the front of the vehicle, it's exposed to constant abuse from road debris like rocks, bugs, and dirt. Over time, this can cause leaks or blockages that prevent it from working correctly.
Common Symptoms of a Bad A/C Condenser
- Warm Air From Vents: This is the number one sign. If the condenser is leaking refrigerant or is clogged, it can't cool the refrigerant, resulting in warm air.
- A/C Only Cools While Driving: 🎬 See a quick fix for common Explorer airflow issues. If the A/C works on the highway but gets warm at a stoplight, it points to a struggling condenser. The extra airflow from driving is helping it do its job, but it can't keep up when the truck is stationary.
- Visible Leaks or Damage: You might see an oily residue on the condenser fins, which is refrigerant oil leaking out. Sometimes, you can see physical damage like bent or crushed fins that block airflow.
- A/C System Shuts Down: If the condenser is severely blocked, pressure can build up, causing the system's safety switches to shut the compressor off entirely.
Known Issues for This Generation
While there are no major recalls for the A/C condenser on the 2002-2010 Explorer, it's worth noting that Ford did issue Technical Service Bulletin (TSB) 06-4-9 for a potential A/C compressor leak on some 2003-2005 models. Additionally, another TSB addresses the A/C drain tube dripping onto the transmission on some 2006-2010 models, which can cause unrelated electrical issues. However, the condenser itself fails most often due to its vulnerable location.
Choosing the Right Aftermarket Condenser
You don't need to pay dealership prices for a new condenser. Aftermarket parts offer good quality for a fraction of the cost, but not all brands are created equal. They generally fall into three tiers.
Tier 1: OEM-Quality Brands
These brands are known for manufacturing parts for automakers and have a strong reputation for fit and performance. They are the safest bet for a long-lasting repair.

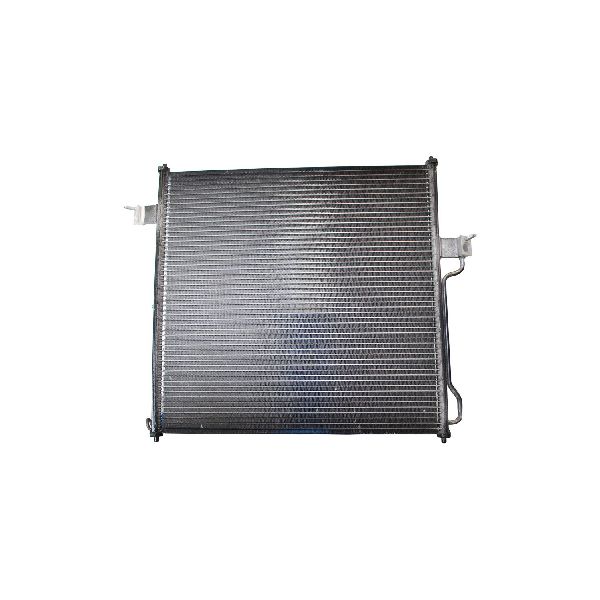

- Denso: Widely considered a top-tier choice. Denso is a major OEM supplier, and their aftermarket parts are often identical to the original factory part. You can expect excellent quality and a perfect fit.
Tier 2: Quality Aftermarket Brands
These brands provide a great balance of price and quality. They are a solid choice for most daily-driven Explorers.

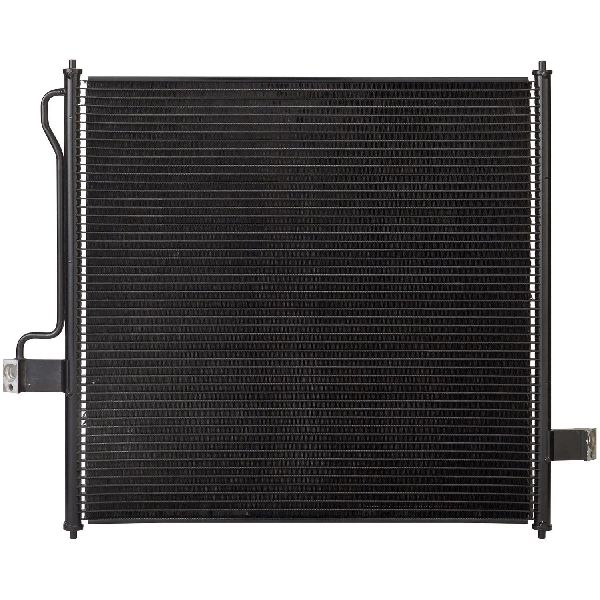

- Spectra Premium: A well-regarded brand that offers good performance and value. Most users report easy installation and reliable cooling.
- CSF Radiator: Known for high-performance cooling products, often featuring robust all-aluminum construction. While their performance parts are well-respected, some reviews mention occasional fitment issues on standard replacement parts, so check the details carefully.
Tier 3: Economy Brands
These brands offer the lowest prices but can be a gamble on quality and longevity. They may be suitable for an older vehicle or if budget is the primary concern.

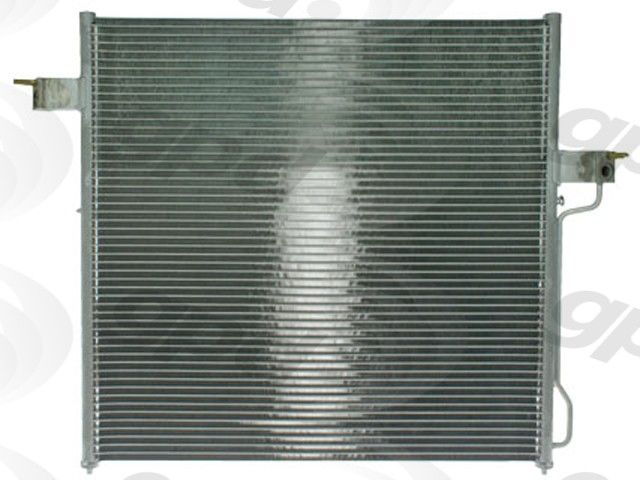

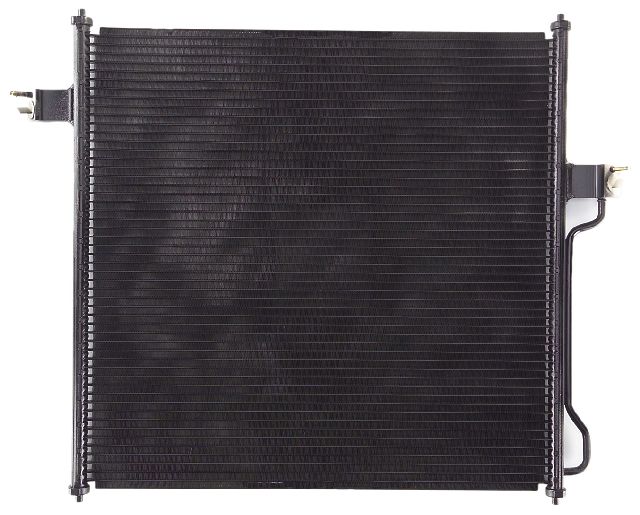

- APDI, Global Parts, One Stop Solutions (UAC): These brands are budget-friendly. However, reviews are often mixed, with some users reporting thinner materials and minor fitment issues.
Pro Tip: Always replace the A/C Receiver/Drier (also called an accumulator) whenever you replace the condenser. This part absorbs moisture from the A/C system. A new one is required to protect your new condenser and compressor, and most warranties require it.
A/C Condenser Replacement Cost for 2002-2010 Ford Explorer
The cost to replace the A/C condenser involves the part itself and the labor to install it, which includes specialized work to handle the refrigerant.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Condenser | $90 - $160 |
| Shop Labor & Refrigerant Service | $350 - $600 |
| Total Estimated Cost | $440 - $760 |
Note: Costs are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Can I replace the A/C condenser myself? 🎬 Watch this step-by-step guide on replacing the condenser yourself.
This is not recommended for beginners. While the physical part replacement is straightforward for a mechanic, the job requires specialized and expensive equipment to safely and legally recover the old refrigerant and recharge the system. 🎬 Watch a demonstration of how to properly recharge the refrigerant. Attempting this without the right tools can damage the A/C system and is harmful to the environment.
Does the condenser for the V6 and V8 Explorer use the same part?
Yes, for the 2002-2010 Ford Explorer, the A/C condenser is generally the same for both the 4.0L V6 and 4.6L V8 engines as they share the same front-end structure. However, always verify the fitment for your specific year and model before ordering.
Why is my new condenser not getting cold?
If a new condenser is installed and the system still blows warm, check for other issues. The system may have been charged with the incorrect amount of refrigerant, there could be a different leak in the system, or another component like the compressor or expansion valve may have also failed.
Do I need to add oil when replacing the condenser?
Yes. When a condenser is replaced, a specific amount of PAG 46 oil is lost and must be replenished to ensure the A/C compressor stays lubricated. Your new condenser's instructions or the vehicle's service manual will specify the correct amount to add.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1L2Z19712AA 6L2Z19712A 6L2Z19712B
Fits 2002-2010 Ford Explorer with 4.0L V6 or 4.6L V8. Refrigerant Type: R-134a. Lubricant Type: PAG 46.
