A Ford Mechanic's Guide to the 2002-2010 F-150 Engine Timing Chain Kit
Tackling the notorious Triton engine rattle and timing issues in your Ford F-150.
- For 2004-2010 5.4L 3V engines, this is not an optional repair; failing components can cause catastrophic engine failure.
- Always buy a complete kit including chains, guides, tensioners, cam phasers, and VVT solenoids.
- Strongly consider upgrading to a high-volume oil pump at the same time to prevent future issues.
- This is a complex, labor-intensive job. Unless you are a very experienced mechanic, this repair should be left to a professional.
The Two F-150 Engine Eras: 2002-2003 vs. 2004-2010
When we talk about the 2002-2010 Ford F-150, we're really talking about two different beasts. The 2002-2003 models with the 2-valve 4.6L and 5.4L Triton engines are generally reliable. However, the 2004-2010 models, especially those with the 5.4L 3-valve Triton engine, are known for significant timing chain problems. These issues are so common that they have their own nickname: the '5.4 Triton Rattle'. The main culprits are often faulty plastic timing chain guides, failing tensioners, and problematic cam phasers.
Known Issues: The 5.4L 3-Valve Triton Engine (2004-2010)

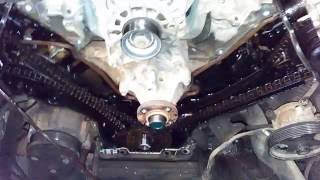

If you own a 2004-2010 F-150 with the 5.4L engine, you need to be aware of its specific weaknesses. The original timing chain tensioners have seals that are prone to blowing out, causing a loss of oil pressure. This lack of pressure prevents the tensioners from keeping the chains tight, leading to a rattling noise, especially on a cold start. The loose chains then slap against the plastic guides 🎬 Watch how loose chains cause guide failure and breakage., causing them to break. Pieces of the broken guides can fall into the oil pan, potentially clogging the oil pump pickup tube and starving the engine of oil, which can lead to catastrophic failure.
OEM vs. Aftermarket Quality
For many parts, OEM (Original Equipment Manufacturer) is the safest bet. However, with the 5.4L 3-valve engine, the original Ford parts had design flaws, like the plastic tensioners that leak. Many high-quality aftermarket kits have addressed these issues. For instance, some kits include updated, more robust tensioners. While some forum users insist on using only Ford/Motorcraft parts, others have had success with reputable aftermarket brands, especially when the OEM design was the source of the problem. 🎬 See a step-by-step guide to resolving these timing chain issues. The key is to choose a complete, high-quality kit from a trusted brand and avoid the cheapest options, which are known to fail prematurely.
Choosing the Right Aftermarket Kit
With a wide price range, choosing a kit can be confusing. The price often reflects the completeness of the kit. A basic kit might only have chains and guides, while a comprehensive master kit will include cam phasers, VVT solenoids, and a new crank sprocket.
- Premium Brands (Cloyes, INA): Cloyes is a well-known aftermarket brand, though some users have reported recent quality control issues, making it crucial to source from a reputable dealer. INA is often an OEM supplier and is generally considered a high-quality choice.
- Mid-Tier Brands (Gates, Dayco): These brands are reputable and offer a balance of quality and value. They are a solid choice for a reliable repair without the premium price tag.
- Budget Brands (Dorman, Store Brands): While tempting, budget kits, including some from Dorman, have a reputation for premature failure in this specific, demanding application. Given the high labor cost of this job, it's not worth the risk of having to do it twice.
Pro Tip: For any 5.4L 3V engine, always buy a complete kit that includes new cam phasers and VVT solenoids. These parts are central to the timing system and are common failure points. Reusing old phasers or solenoids is asking for trouble.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $80 - $843 |
| New OEM Kit | $400 - $900+ |
| Shop Labor | $1,400 - $2,200 |
| Total Job Cost (Aftermarket) 🎬 Learn more about the total costs for this engine repair. | $1,480 - $3,043 |
Frequently Asked Questions (FAQ)
Should I replace the oil pump at the same time?
Yes, it is highly recommended. The original oil pump can struggle to provide adequate pressure, which contributes to timing component failure. Upgrading to a high-volume oil pump (like the Melling M360) is a common and wise upgrade while the timing cover is off. Also, broken guide pieces can clog the original pump's pickup tube.
What are cam phasers and VVT solenoids, and do I need to replace them?
Cam phasers are gears on the camshafts that can change their angle to adjust valve timing. VVT (Variable Valve Timing) solenoids are what control the oil flow to the phasers to make them move. On the 5.4L 3V engine, these are major failure points that contribute to rattling and rough idling. You should ALWAYS replace the phasers and solenoids when doing a timing job on these engines. Ford even issued Technical Service Bulletins (TSBs) related to noisy phasers.
What causes the startup rattle noise?
The infamous startup rattle, which can last for a few seconds, is caused by oil draining out of the timing chain tensioners when the engine is off. When you start the engine, there is no oil pressure for a moment, so the chains are loose and slap against the timing cover and guides. This constant slapping is what breaks the plastic guides over time.
Are there any recalls for this issue?
There have not been any major recalls specifically for the 2002-2010 F-150 timing chain components. However, Ford has issued several Technical Service Bulletins (TSBs), such as TSB 06-19-8, which address issues like knocking noises and VCT phaser problems. There were also customer satisfaction programs for later model years with similar issues, but they do not cover this generation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3L3Z6M280EA 8L3Z6M280A 8L3Z6M280B
Vehicle fitment is highly dependent on the specific engine in your F-150 (4.6L 2V, 5.4L 2V, 4.6L 3V, or 5.4L 3V). The most significant issues are with the 5.4L 3-valve Triton engine, used from 2004-2010. Kits for this engine must include cam phasers and VVT solenoids.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
