Lexus SC430 (2002-2010) A/C Expansion Valve: A Complete Guide
If your SC430's air conditioning is blowing warm, the A/C expansion valve could be the culprit.
- A faulty A/C expansion valve is a common cause of poor cooling in the Lexus SC430, with symptoms like warm air or intermittent cooling.
- The valve is located inside the cabin above the gas pedal, making replacement labor-intensive and expensive.
- Denso is the likely OEM supplier, offering the best quality, while Four Seasons provides a reliable, cost-effective aftermarket alternative.
- Always replace the receiver/drier and have the system professionally evacuated and recharged when replacing the expansion valve to prevent future failures.
Is Your SC430 A/C Not Blowing Cold?
When your Lexus SC430's air conditioning starts to weaken or blow warm air, many owners suspect a refrigerant leak or a bad compressor. While those are possibilities, a faulty A/C expansion valve is a common and often overlooked cause on these vehicles. This small but vital component can get clogged with debris over time or simply fail, leading to a variety of cooling problems. A correct diagnosis is key, as symptoms of a bad expansion valve can mimic other A/C system failures.
🎬 Watch this video to learn more about bad expansion valve symptoms.Symptoms of a Failing A/C Expansion Valve
Look out for these common signs that your SC430's expansion valve may need replacement:
- Weak or Warm Air: The most obvious symptom is a lack of cold air from the vents. A stuck or clogged valve disrupts the refrigerant flow needed for cooling.
- Intermittent Cooling: The A/C might blow cold for a few moments and then turn warm. This can happen if the valve is sticking, causing inconsistent refrigerant flow.
- Frost on Vents or A/C Lines: If the valve is stuck open, it can allow too much refrigerant into the evaporator, causing it to get too cold and even freeze over.
- High and Low Pressure Imbalances: A technician using A/C manifold gauges will notice incorrect pressure readings. For example, abnormally high pressure on both high and low sides can point to a bad expansion valve.
Compressor Damage Risk
Continuing to run your A/C with a faulty expansion valve can cause serious damage. A valve that is stuck closed can starve the compressor of refrigerant and oil, leading to overheating and seizure. A valve that is stuck open can allow liquid refrigerant back to the compressor, causing catastrophic failure. It's best to have the system inspected promptly.
Choosing the Right Aftermarket Expansion Valve
When replacing the A/C expansion valve on your SC430, you have a few options. While an OEM part from Lexus is available, high-quality aftermarket parts offer excellent performance and value.

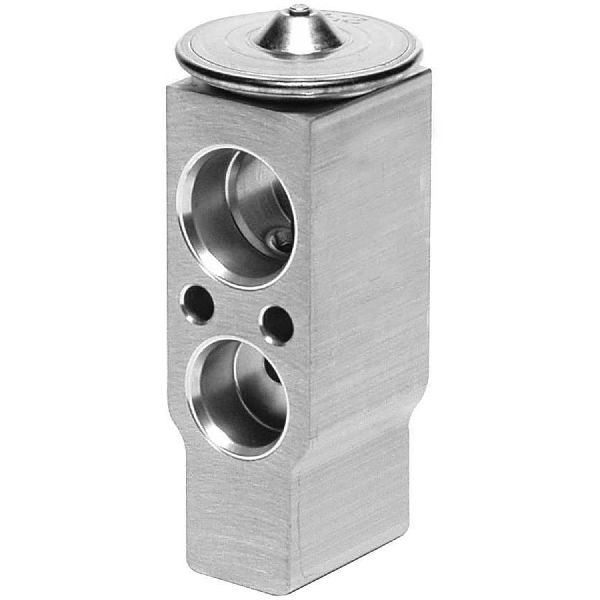

- OEM Supplier (Denso): Denso is widely recognized as the original equipment manufacturer for many Toyota and Lexus A/C components. Choosing a Denso expansion valve is the closest you can get to the original factory part, ensuring excellent fit and performance. It's often the preferred choice for long-term reliability.

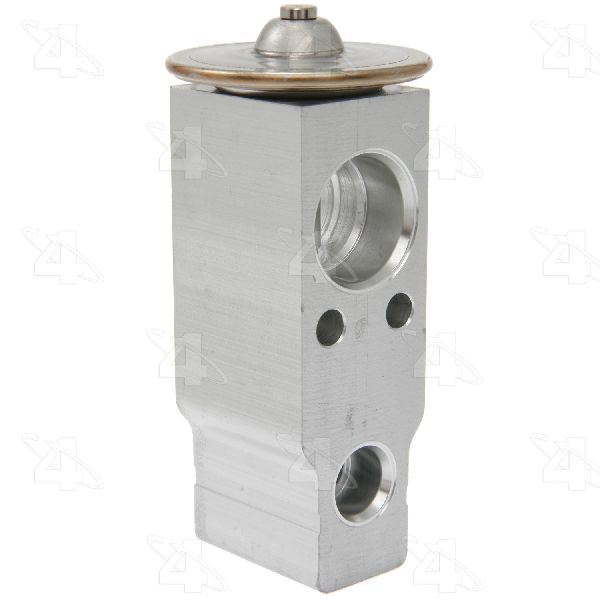

- Trusted Aftermarket (Four Seasons): Four Seasons is a major name in the aftermarket A/C parts industry. Their parts are known to be reliable and cost-effective, making them a popular choice for repairs. While some have mixed opinions on their remanufactured compressors, their new components like expansion valves are generally considered a solid option.

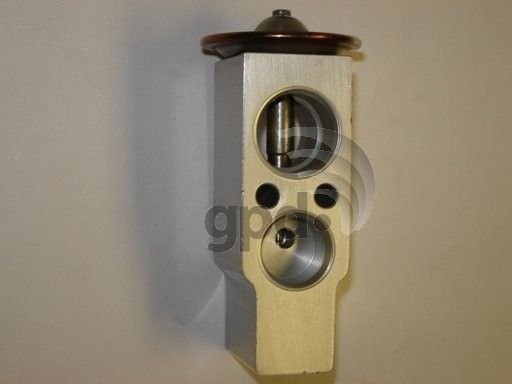

- Budget-Friendly (Global Parts): Global Parts Distributors (GPD) is another large supplier of aftermarket A/C components. They provide a budget-friendly alternative to OEM and other premium aftermarket brands. For a part like an expansion valve, they can be a suitable choice if cost is the primary concern.
Always Replace the Receiver/Drier
Whenever the A/C system is opened for a repair like replacing the expansion valve, it is critical to also replace the receiver/drier (or accumulator). The drier contains a desiccant that absorbs moisture from the system. Once exposed to air, it becomes saturated and can no longer protect your A/C components from corrosion and damage. Failure to replace it will void the warranty on your new parts and likely lead to premature failure of the new compressor or expansion valve.
Cost of Replacing the Lexus SC430 A/C Expansion Valve
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $147 - $201 |
| New Aftermarket Part | $29 - $85 |
| Shop Labor | $634 - $931 |
| Total Professional Replacement | $797 - $1194 |
Note: Costs are estimates and can vary based on your location, the specific parts chosen, and your mechanic's labor rates. The high labor cost is due to the part's location.
Frequently Asked Questions (FAQ)
Where is the A/C expansion valve located on a 2002-2010 Lexus SC430?
The expansion valve is located inside the cabin, in the driver's side footwell, right above the accelerator pedal. It is wrapped in a black, tar-like insulation that needs to be carefully removed. Its location inside the car, behind the firewall, is what makes replacement a labor-intensive job.
Can I replace the SC430 expansion valve myself?
This is an advanced DIY job. While accessing the valve itself involves removing panels in the driver's footwell, the main challenge is that the A/C system must be professionally evacuated of refrigerant before starting and then vacuumed and recharged after the new valve is installed. This requires specialized equipment. Failure to do this correctly can result in poor performance or damage to the system.
Are there any recalls for the SC430 A/C expansion valve?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from Lexus for the A/C expansion valve on the 2002-2010 SC430. A/C component failures are generally considered wear-and-tear issues. The SC430 did have several recalls related to Takata airbag inflators.
Should I flush the A/C system when replacing the expansion valve?
Yes, especially if the old compressor failed. When a compressor fails, it can send metal shavings and debris throughout the system, which will clog a new expansion valve and condenser. Flushing the lines and the evaporator individually is the best way to ensure the system is clean before installing new parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88515-22260 88515-30690
Block Type Expansion Valve.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
