Lexus SC430 (2002-2010) Engine Valve Cover Gasket Set Guide
Stop that burning oil smell and protect your SC430’s engine by choosing the right valve cover gaskets.
- A burning oil smell is the #1 symptom of a leaking valve cover gasket on the SC430.
- Before buying parts, try gently tightening the valve cover bolts; they often loosen over time and can be the source of a minor leak.
- Always buy a complete kit that includes gaskets, spark plug tube seals, and bolt grommets.
- Premium aftermarket brands like Fel-Pro and Beck Arnley offer OEM-quality or better for this specific part.
Is Your Lexus SC430 Leaking Oil?
If you smell burning oil or see smoke from under the hood of your SC430, a leaking valve cover gasket is a likely cause. This is a very common issue on the 3UZ-FE V8 engine as it gets older. The rubber gaskets harden from constant heat cycles and stop sealing properly. Oil then drips onto the hot exhaust manifold below, creating a distinct smell and potential smoke.
First, Check the Bolts
Before you buy parts, check the 10mm bolts on the valve covers. Forum members have found these bolts often come loose over time. Simply tightening them down gently might stop or slow a small leak, giving you time to plan a proper repair. Do not overtighten them, as the bolts are small and can break.
Symptoms of a Failing Valve Cover Gasket
- Burning Oil Smell: This is the most common symptom. Oil leaks onto the hot exhaust and burns off, especially noticeable after a drive.
- Visible Oil Leaks: You may see wet, oily dirt built up on the valve covers, typically on the side of the engine block.
- Smoke from Engine Bay: In cases of a heavier leak, you might see light smoke coming from under the hood when the engine is hot.
- Oil in Spark Plug Wells: When the spark plug tube seals fail, oil can fill the tubes. This can cause engine misfires and a check engine light.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, requiring you to add oil between changes.
Choosing the Right Aftermarket Gasket Set
For the Lexus SC430, you don't always need to buy expensive OEM parts for this job. Several aftermarket brands offer excellent quality, and some are even considered an upgrade. A complete kit is essential; it should include both valve cover gaskets, eight spark plug tube seals, and the bolt grommets.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM-Equivalent / Premium Aftermarket | Fel-Pro, Beck Arnley | Fel-Pro is highly trusted and often improves on the original factory design. Beck Arnley is known for sourcing parts from OEM manufacturers, so you may get a factory-quality part in their box. Both are excellent choices for a long-lasting repair. |
| Standard Aftermarket | Victor Gaskets (Victor Reinz) | Victor Reinz is a major OEM supplier for European cars, but their aftermarket quality can be inconsistent. While some of their gaskets for Japanese cars are reboxed OEM parts, others have reported fitment issues. It's a decent option but might not be as reliable as Fel-Pro or Beck Arnley. |
| Economy Aftermarket | Apex | This brand falls into the budget category. While it will seal the leak initially, its long-term durability may not match the premium brands. Best for those on a tight budget who need a quick fix. |
Make Sure You Get a Complete Kit
Do not reuse the old spark plug tube seals or bolt grommets. The tube seals are critical for preventing misfires, and the grommets ensure the bolts have the correct tension without cracking the valve cover. A kit that includes all these components is the best value and ensures the job is done right once.
Frequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
For a beginner, it can be challenging due to tight spaces, especially on the driver's side. However, it is a straightforward job for someone with basic mechanical experience and the right tools (like a 10mm socket, extensions, and a torque wrench). Many DIY guides are available on forums and video platforms for the 3UZ-FE engine.

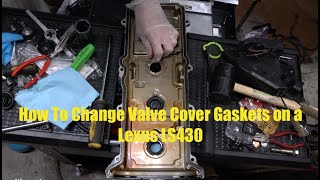

🎬 Watch this detailed walkthrough for replacing gaskets on the 3UZ-FE.How much should a shop charge for this repair?
Shop labor costs are estimated to be between $150 and $300. A price of around $480 for replacing both gaskets, including parts, was considered reasonable by other owners. The job is almost all labor.
Do I need to use sealant on the new gaskets?
Yes. A small amount of Form-in-Place Gasket (FIPG) sealant is required at the sharp corners where the timing cover meets the cylinder head. The Lexus/Toyota service manual specifies exactly where to apply it to prevent leaks from these corner joints.

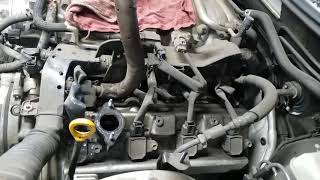

🎬 Watch this quick video summary of the gasket replacement process.Should I replace anything else at the same time?
Yes. Since you'll have everything apart, this is the perfect time to replace your spark plugs. If oil has been leaking into the tubes, the plugs and ignition coil boots may be fouled. It's also a good idea to replace the PCV valve and its grommet, as they are easily accessible.

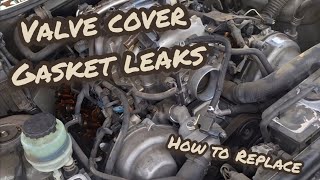

Helpful Videos
Technical Specifications
OEM Part Numbers: 11213-50031 11214-50011 11193-50010 90210-07001
Set includes two (2) valve cover gaskets, eight (8) spark plug tube seals, and sixteen (16) bolt grommet seals. Sealant (FIPG) is required at corner junctions.
