Saturn Vue Ignition System Guide: Replacing Your Coil-on-Plug Boots (2002-2010)
Fix your Saturn Vue's engine misfire and rough idle by understanding and replacing the right ignition coil boot.
- First, confirm you have a V6 or 2.4L engine; the 2.2L engine uses a different ignition system.
- On V6 models, check the spark plug tubes for oil. A leaking valve cover gasket is a very common root cause of boot failure.
- For V6 engines, it is highly cost-effective to replace all six boots and spark plugs at once due to the difficult labor required to access the rear cylinders.
- Always apply dielectric grease inside the new boots to ensure a good seal and prevent future misfires.
Is This The Right Part For Your Vue?
Engine Check Required
Before you buy, you MUST confirm your engine. The 2002-2010 Saturn Vue used different ignition systems.
- This guide is for: V6 engines (3.0L, 3.5L) and 2.4L 4-cylinder engines (approx. 2008-2010) which use individual coil-on-plug boots.
- This guide is NOT for: The 2.2L 4-cylinder Ecotec engine (2002-2007). This engine uses a single, all-in-one Ignition Control Module (ICM) or cassette and does NOT use these individual boots.
Symptoms of a Failing Ignition Coil Boot
A bad coil boot allows the spark to escape before it reaches the spark plug. This creates a misfire. You will notice one or more of these symptoms:
- Check Engine Light: The light may be steady or flashing. A flashing light indicates a severe misfire that can damage other components.
- Rough Idle and Engine Shake: The engine will vibrate or shake, especially at a stop, because one or more cylinders isn't firing correctly.
- Loss of Power: Your Vue will feel sluggish and won't accelerate as quickly as it should.
- Poor Fuel Economy: When a cylinder misfires, unburnt fuel is wasted, causing your gas mileage to drop.
- Gasoline Smell: You might smell raw gas from the exhaust because it's passing through the engine without being burned.
These symptoms are often paired with diagnostic trouble codes like P0300 (Random Misfire) or P0301, P0302, etc., which point to a specific misfiring cylinder.
Known Issue: Leaking Valve Cover Gaskets on V6 Engines
For V6 Saturn Vue models, the most common cause of coil boot failure is not age, but oil contamination. The valve cover gaskets become brittle and leak oil directly into the spark plug tubes. This oil soaks the coil boot, causing the rubber to swell, soften, and degrade. The damaged boot can no longer insulate the spark, leading to a misfire. If you are replacing the boots on a V6, it is critical to first inspect the spark plug tubes for oil. If oil is present, you must replace the valve cover gaskets to prevent the new boots from failing quickly.
Choosing the Right Aftermarket Boot Kit
When it comes to ignition parts, quality matters. You don't need to pay for an OEM part, as high-quality aftermarket brands provide excellent performance and durability. For the Saturn Vue, both Denso and Standard Wires (Standard Motor Products) are well-regarded choices.

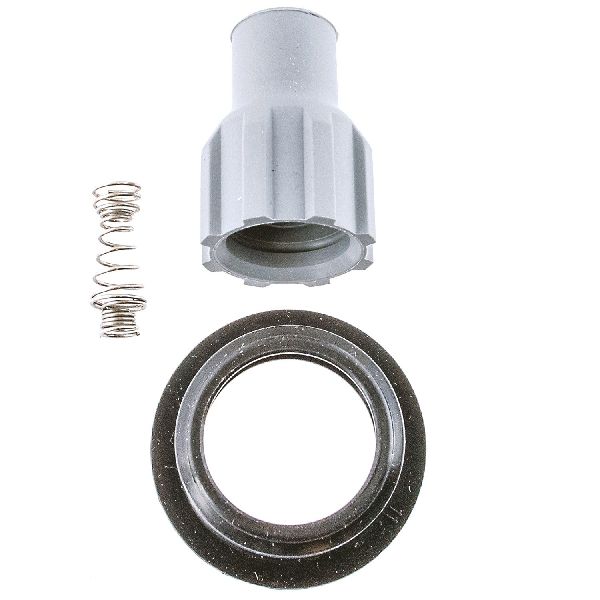

- Denso: A major OEM supplier, Denso's aftermarket parts are known for their high quality and precise fit. They are a trusted option for reliability.

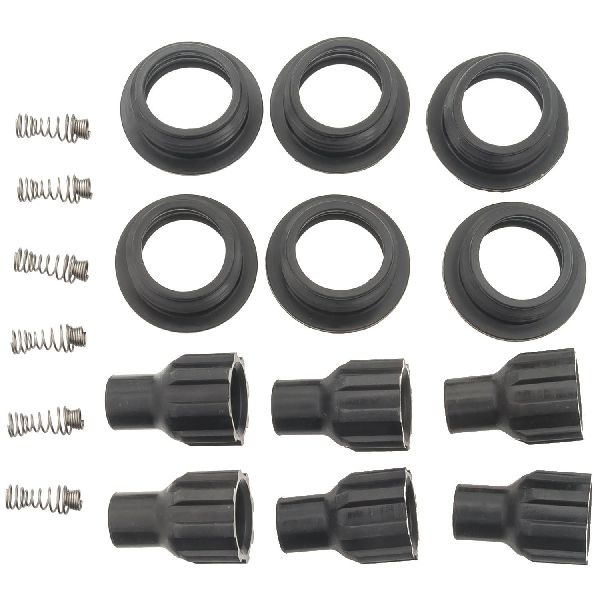

- Standard Wires (Standard Motor Products): A long-standing brand in the aftermarket, Standard offers parts that meet or exceed OE specifications and are a dependable choice for ignition components like coil boots.
Both brands produce boots from high-quality silicone to resist high temperatures and prevent spark loss. Given the choice, either brand is a solid repair option.
Pro Tip: Replace Boots and Plugs Together
It is highly recommended to replace your spark plugs at the same time as the coil boots. The boots must be removed to access the plugs anyway. Furthermore, a worn boot can cause carbon tracking on an old spark plug, and installing a new boot over that old plug can cause the new boot to fail prematurely. For V6 engines, the rear three boots are very difficult to access, requiring removal of the intake manifold. To avoid paying for this difficult labor twice, always replace all six boots and all six spark plugs at the same time.
Cost to Replace Saturn Vue Ignition Coil Boots
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Boot Kit | $25 - $86 |
| Shop Labor (Front Bank Only) | $50 - $100 |
| Shop Labor (All Boots, V6) | $250 - $450+ (due to intake manifold removal) |
Frequently Asked Questions (FAQ)
Why replace just the boot and not the whole ignition coil?
In many cases, especially on the V6 models with oil leaks, the ignition coil itself is still functional. The boot is the part that degrades from heat and oil exposure. Replacing only the boot and spring is a cost-effective way to solve the misfire, provided the coil's electronics are still good.
Do I need to use dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of the boot helps seal it from moisture, prevents it from getting stuck to the spark plug, and improves electrical transfer. A GM technical service bulletin also notes that specific dielectric grease provides better insulation than the powder found in some new boots, preventing arcing and future misfires.
Why is replacing the rear boots on my V6 Vue so expensive?
The rear three cylinders on the V6 engine are located deep under the upper intake manifold. To access them, a mechanic must spend several hours removing this large component. The high labor cost is due to the time and complexity of accessing the rear bank of cylinders.
Are there any recalls for the 2002-2010 Saturn Vue ignition?
Yes, but not for the coil boots. There was a major safety recall (NHTSA Campaign ID: 14V490000) for 2002-2004 models because the ignition key could be removed when the car was not in the 'Off' position, potentially allowing the vehicle to roll away. This was later extended as a special coverage program to include models up to 2007.
Technical Specifications
Material: High-temperature resistant silicone. Kit should include the boot and internal contact spring. Use of dielectric grease (such as Molykote G-5008 or equivalent) is recommended during installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
