Saturn Vue Engine Coolant Thermostat Guide for 2002-2010 Models
Solve overheating or slow warm-up issues by choosing the right thermostat for your Saturn Vue.
- A P0128 trouble code on a Saturn Vue almost always means the thermostat needs replacement.
- Replacement on V6 models is much more difficult than on 4-cylinder models due to its location under the intake manifold.
- Consider replacing the entire thermostat and housing assembly to prevent future leaks from old plastic.
- ACDelco, Gates, and Stant are highly recommended brands for reliability and proper function.
Is Your Saturn Vue's Thermostat Failing?
A bad thermostat can cause frustrating problems. It most often fails in one of two ways: stuck open or stuck closed. A thermostat stuck open will cause your engine to warm up very slowly, poor heater performance, and can trigger a Check Engine Light for code P0128. 🎬 See how to fix a P0128 code on 2.2L engines. A thermostat stuck closed is more serious, as it will prevent coolant from reaching the radiator, leading to rapid engine overheating.
Symptoms of a Bad Thermostat in a Saturn Vue
- Check Engine Light: The most common sign is a Check Engine Light with code P0128 (Coolant Temperature Below Thermostat Regulating Temperature). This almost always points to a thermostat that is stuck open or opening too soon.
- Engine Overheating: If the temperature gauge climbs into the red, your thermostat might be stuck closed. This is a critical issue that requires immediate attention to prevent engine damage.
- Engine Takes Too Long to Warm Up: If your Vue takes a very long time to reach normal operating temperature, or the gauge drops on the highway, the thermostat is likely stuck open.
- Poor Heater Performance: The heater in your car uses hot coolant to warm the cabin. If the engine isn't getting hot enough, your heater will blow cool or lukewarm air.
No Known Recalls or TSBs
As of now, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for engine coolant thermostat failures on the 2002-2010 Saturn Vue. Most issues are related to normal wear and tear.
Choosing the Right Aftermarket Thermostat
For a vehicle like the 2002-2010 Saturn Vue, a quality aftermarket thermostat is a reliable and cost-effective choice. Since General Motors was the parent company, ACDelco is considered an OEM-level part. However, other brands offer excellent quality, often at a better price.
- Tier 1 (OEM & Premium Aftermarket): ACDelco is the original GM parts brand and a trusted choice. Gates and Stant are long-standing, reputable aftermarket brands often recommended by professional mechanics and experienced owners. These brands are known for their reliability and proper fit.
- Tier 2 (Standard Aftermarket): Brands like Motorad and Calorstat offer a good balance of quality and value. They are a solid choice for a daily driver and meet or exceed original specifications.
- Tier 3 (Economy): Brands like Facet are budget-friendly options. While they can perform adequately, long-term durability may not match that of premium brands.
Pro Tip: Many thermostats for the Saturn Vue come as an assembly with the housing. Given the age of the vehicle and the plastic construction of some original housings, it is often a good idea to replace the entire assembly to prevent future leaks.
Estimated Costs for Thermostat Replacement
| Part/Service | Estimated Cost |
|---|---|
| New OEM (GM/ACDelco) Part | $45 - $95 |
| New Aftermarket Part | $19 - $125 |
| Shop Labor | $150 - $350 |
Frequently Asked Questions
Do I need to replace the thermostat housing too?
It's highly recommended, especially on older vehicles. The plastic can become brittle and crack over time. Replacing the thermostat and housing together as an assembly can save you from a future coolant leak and having to do the job twice.
What temperature thermostat should I buy for my Saturn Vue?
Always use the OEM-specified temperature, which is typically 170°F or 180°F depending on your specific engine (2.2L, 3.0L, 3.5L, or 3.6L). Using the wrong temperature thermostat can affect engine performance, fuel economy, and trigger a check engine light.
Is replacing the thermostat a DIY job?
For the 4-cylinder (2.2L/2.4L) engines, it is a moderately easy job for a DIYer 🎬 Watch this step-by-step guide for replacing the 2.4L thermostat. with basic tools. However, on the V6 engines (3.0L/3.5L), the thermostat is located under the intake manifold, making the job significantly more difficult and time-consuming. If you have a V6, you may want to leave this job to a professional unless you are a very experienced mechanic.
Should I replace the coolant temperature sensor at the same time?
It's a good preventative measure. The coolant temperature sensor is inexpensive and often located near the thermostat. Since you are already working in the area and have the coolant drained, replacing it can prevent future diagnostic headaches.
Helpful Videos

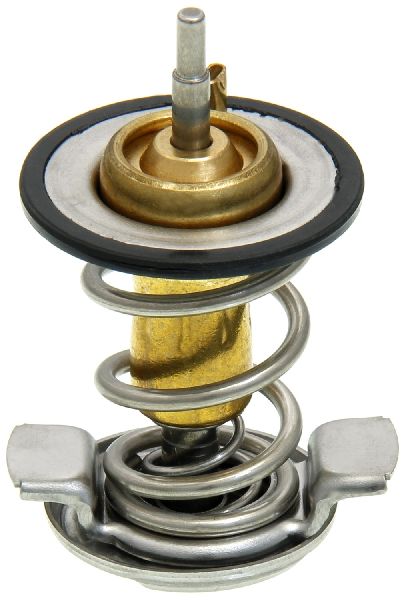

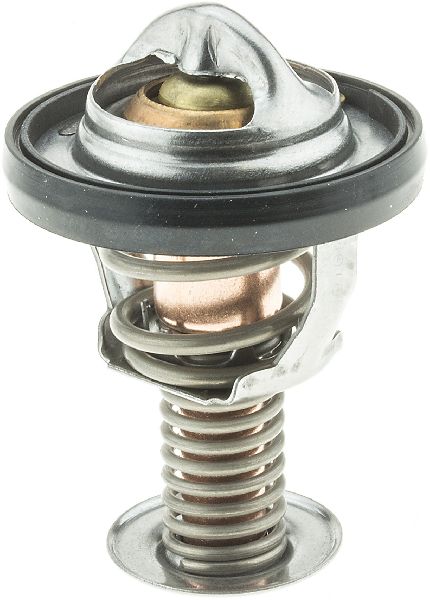

Technical Specifications
OEM Part Numbers: 12581519 12681132 12597172 12591881 55353492 12584898 12581522 21018811
Temperature ratings vary by engine (170°F, 180°F, 185°F). Verify the correct temperature for your specific Vue model and engine (2.2L, 2.4L, 3.0L, 3.5L, 3.6L). Many parts are sold as a complete housing assembly.
