Saturn Vue Engine Mount Guide: Solving Vibration and Noise Issues (2002-2010)
If your Saturn Vue is shaking, vibrating, or making clunking sounds, a bad engine mount is the most likely cause.
- Vibration at idle is the #1 symptom of a bad engine mount on a Saturn Vue.
- For 2002-2007 V6 models, check the front hydraulic mount for fluid leaks, as it's a common failure point.
- For 2008-2010 models, inspect the frame for rust where the mounts attach before ordering parts.
- ACDelco is the premium, longer-lasting brand, while Anchor, DEA, and Westar are budget-friendly options with mixed reviews.
Is Your Saturn Vue Shaking at Idle?
A common complaint from Saturn Vue owners is a noticeable vibration, especially when the vehicle is stopped and in gear. This is a classic sign of a failed engine or transmission mount. The rubber in the mounts cracks and hardens over time, or the fluid inside hydraulic mounts can leak out, making them unable to absorb engine vibrations. You might also hear clunking or thumping noises when you accelerate, brake, or shift gears as the unsecured engine moves around in the engine bay.
Known Issues for the Saturn Vue
Your 2002-2010 Saturn Vue falls into one of two generations, each with its own specific engine mount issues to be aware of:

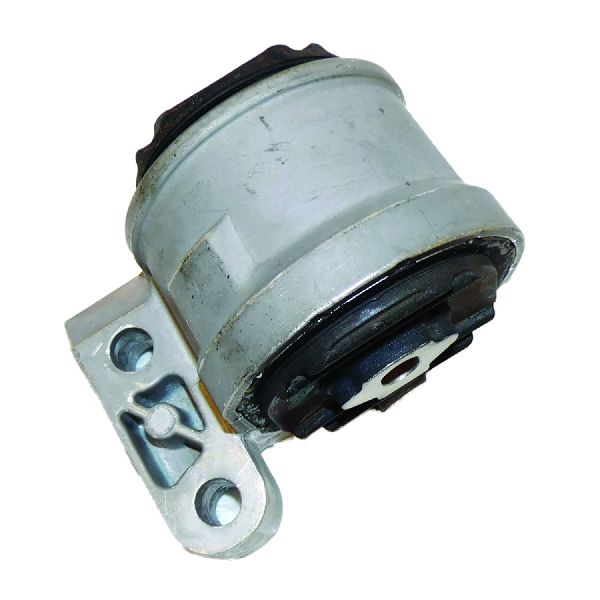

- First Generation (2002-2007): Models with the 3.5L Honda V6 are known for frequent failure of the front, passenger-side hydraulic mount. This mount was reportedly poorly designed for the engine's torque, causing the rubber to tear and the internal fluid to leak out. A visual inspection for dark, oily residue on or below the mount is a clear sign of failure. 🎬 Watch this guide to diagnose and replace Honda-powered Vue mounts. The upper mount, located under the air filter box, is also a common failure point.
- Second Generation (2008-2010): These models, based on a different platform, can also suffer from typical mount failure causing vibration. However, a more serious concern for vehicles in rust-prone areas is corrosion of the frame where the engine mounts are welded. Before buying new mounts, it is critical to inspect the frame itself to ensure there is solid metal to bolt the new parts to. 🎬 Watch this video to learn how to repair rusted frame mounts. 🎬 See how to replace a bad engine mount on 2008 models.
Check for Other Causes of Vibration
While engine mounts are the most common cause of vibration, a Technical Service Bulletin (TSB #08-06-01-006C) was issued for some 2007-2008 V6 models for a vibration or squealing noise caused by a failing crankshaft balancer. If new mounts don't solve the issue, this is the next component to inspect.
Choosing the Right Aftermarket Engine Mount
When shopping for new aftermarket mounts, you'll find a few quality tiers. Since labor can be costly, choosing the right part for your budget and expectations is key.

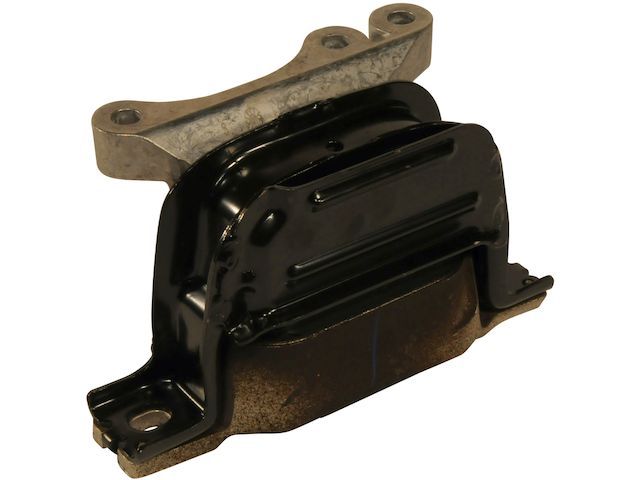

Premium Aftermarket (ACDelco): ACDelco is General Motors' own parts brand, so their products are considered original equipment (OE) or the closest equivalent. For the best fit, performance, and longest life, ACDelco is the top choice, though it comes at a higher price.
Standard / Economy Aftermarket (Anchor, DEA, Westar): These brands offer a much more affordable solution and are widely available. However, owner feedback is very mixed. Some have had these mounts fail in as little as a year, while others have used them without issue. These are a practical choice for a budget repair, but be aware that they may not have the same durability as an OEM or premium part.
Replace Mounts in Sets
Your Vue has multiple engine and transmission mounts (typically 3 or 4). When one fails, it puts extra stress on the others, causing them to wear out faster. While you can replace just the one broken mount, it is often recommended to replace them all as a set for a longer-lasting repair.
Aftermarket Engine Mount Replacement Cost for Saturn Vue
| Part Type | Price Range |
|---|---|
| New Aftermarket Engine Mount (Single) | $82.13 - $133.49 |
| Shop Labor Cost (Single Mount) | $97 - $368 |
| Estimated Total (Single Mount) | $179.13 - $501.49 |
Cost estimates are for a single mount and can vary significantly based on your location, which mount is being replaced, and your vehicle's specific engine.
Frequently Asked Questions
How many engine mounts does a Saturn Vue have?
Most Saturn Vue models have a total of three or four mounts that support the engine and transmission. This includes engine mounts and transmission mounts, which all work together as a system.
Can I replace just one bad engine mount?
Yes, you can replace only the failed mount, and this is a common approach to save money. However, keep in mind that all the mounts are the same age. The new, stiff mount will put additional stress on the remaining older, weaker mounts, which may cause them to fail sooner.
Is an ACDelco mount worth the extra cost over brands like Anchor or DEA?
For this vehicle, yes, in most cases. ACDelco mounts are made to the original GM specification and are expected to last longer and provide better vibration damping. Cheaper aftermarket mounts have a documented history of premature failure and fitment issues in some cases. If you plan to keep your Vue for a long time, ACDelco is a better investment.
Is replacing a Saturn Vue engine mount a DIY job?
For a mechanically inclined person, yes. The upper engine mounts are often accessible after removing the air intake box. The job requires a good set of tools and, most importantly, a floor jack and a block of wood to safely support the engine's weight while you swap the part. The rear and lower mounts can be much more difficult and may require lowering the subframe.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22727637 15801384 22684872 20839833 20831435 25845582
The Saturn Vue uses a combination of solid rubber and hydraulic (fluid-filled) engine and transmission mounts. The exact number and type depend on the model year and engine (2.2L I4, 3.5L V6, 2.4L I4, 3.6L V6). Most configurations use three or four mounts in total to secure the powertrain.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
