Saturn Vue Engine Water Pump: A Guide for 2002-2010 Models
Understanding the different water pumps in your Saturn Vue is the key to a successful repair.
- Identify your engine first; the water pump and replacement job vary drastically between the 4-cylinder, early V6, Honda V6, and late V6 engines.
- For the 3.0L V6 (2002-03) and 3.5L Honda V6 (2004-07), always replace the water pump, timing belt, and tensioners as a complete kit.
- A coolant leak from the 'weep hole' or a grinding noise from the pump means immediate replacement is needed to avoid overheating or a snapped belt.
- Using premium aftermarket brands like Gates, Dayco, or ACDelco is a wise investment, especially on engines with timing belt/chain driven pumps where labor is expensive.
Engine Differences Are Critical for This Repair
When replacing the water pump on a 2002-2010 Saturn Vue, the most important thing to know is which engine your vehicle has. The water pump design and the replacement procedure are completely different depending on the engine. This is not a one-size-fits-all part.
- 2.2L & 2.4L 4-Cylinder (Ecotec): Found in Vues from 2002-2010, this GM engine uses a timing chain-driven water pump. Replacement is complex because it involves accessing the timing chain system. A special holding tool is recommended to keep the timing chain sprocket in place, which saves you from having to remove the entire front engine cover. 🎬 See this walkthrough for replacing the 2.4L Ecotec water pump.

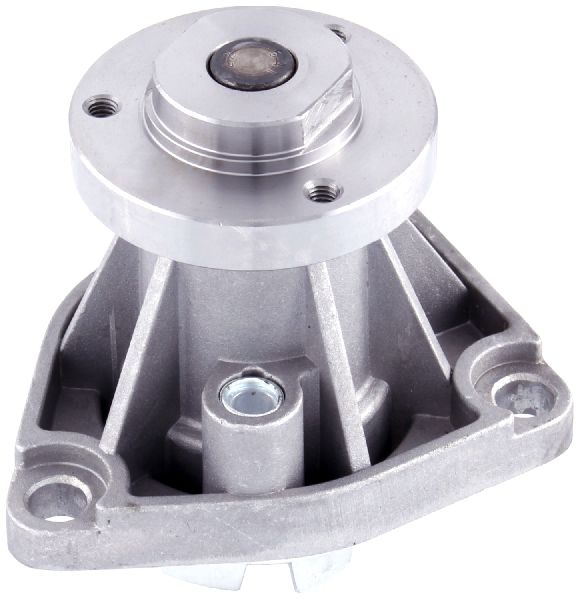

- 3.0L V6 (2002-2003): This early GM V6 uses a timing belt-driven water pump. Like the Honda V6, it is critical to replace the timing belt, tensioner, and pulleys at the same time as the water pump.
- 3.5L V6 (2004-2007): This engine is actually a Honda J35 V6. Its water pump is driven by the timing belt. This is an interference engine, which means if the timing belt breaks, the engine will be destroyed. For this reason, you must replace the water pump, timing belt, tensioner, and idler pulleys as a complete kit. 🎬 Watch: Step-by-step timing belt and water pump replacement for the Honda 3.5L V6.

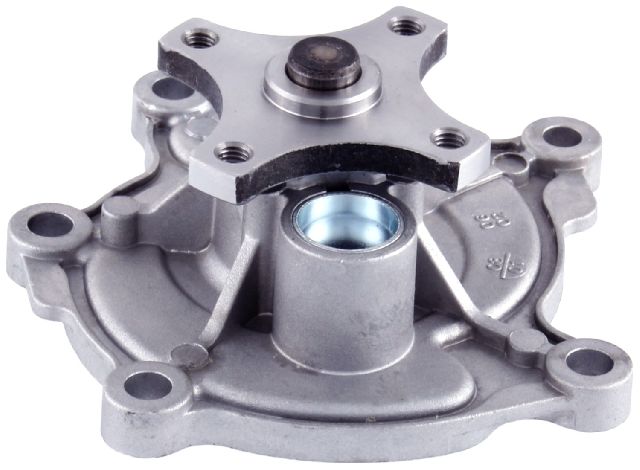

- 3.5L & 3.6L V6 (2008-2010): These later model GM V6 engines use a water pump driven by the serpentine belt. This is the most straightforward design to replace, as it does not require disturbing the engine's timing components.
Interference Engine Warning: 3.0L and 3.5L V6 Models
The 2002-2003 3.0L V6 and the 2004-2007 3.5L V6 are interference engines. A failed water pump bearing can cause the timing belt to skip or break, leading to catastrophic engine damage. Do not postpone this repair. Always replace the timing belt and water pump as a kit.
Choosing the Right Aftermarket Water Pump
For a critical part like the water pump, quality matters. A cheap, poorly made pump can fail quickly, forcing you to pay for the same labor all over again. Here’s a breakdown of available brands to help you choose.
- Premium Brands (Recommended for Timing Belt/Chain Jobs): Gates, Dayco, and ACDelco are highly respected brands that often supply original parts to manufacturers. They frequently offer complete kits (pump, gaskets, belt, tensioners) which are essential for the 3.0L and 3.5L V6 jobs. Beck Arnley and Hella are also solid premium choices known for quality.
- Mid-Grade / OEM-Equivalent Brands: GMB is a well-regarded Japanese manufacturer that is an OEM supplier for some carmakers and offers a great balance of quality and price. Melling, traditionally known for oil pumps, also produces quality water pumps.
- Economy Brands: Brands like US Motor Works, Airtex, and Skyward offer a budget-friendly option. While functional, they may not have the same longevity as premium brands. They are best considered for simpler serpentine-belt-driven applications where labor for a future replacement is less intensive.
Pro Tip: For any engine where the water pump is driven by the timing belt or chain (all Vues except 2008-2010 V6 models), investing in a premium kit from Gates, Dayco, or ACDelco is the smartest choice. The cost of labor is too high to risk using a lower-quality part.
Estimated Cost for Saturn Vue Water Pump Replacement
Costs vary significantly based on your engine. The table below shows estimated costs for the part and professional installation.
| Engine | Aftermarket Part Cost | Estimated Shop Labor | Total Estimated Cost |
|---|---|---|---|
| 2.2L / 2.4L I4 | $45 - $150 | $400 - $650 | $445 - $800 |
| 3.0L V6 (Timing Belt) | $150 - $350 (Kit) | $600 - $900 | $750 - $1250 |
| 3.5L V6 (Honda Engine) | $180 - $400 (Kit) | $700 - $1100 | $880 - $1500 |
| 3.5L / 3.6L V6 (2008-10) | $41 - $180 | $200 - $350 | $241 - $530 |
Frequently Asked Questions
Do I have to replace my timing belt with the water pump?
If you have the 2002-2003 3.0L V6 or the 2004-2007 3.5L V6, the answer is yes. The water pump is driven by the timing belt, and the labor to access it is the same. Replacing them together as a kit is standard practice to prevent a future failure and save you from paying for the same expensive job twice.
Are there any recalls on the Saturn Vue water pump?
No, there are no specific recalls from the NHTSA for the engine water pump on any 2002-2010 Saturn Vue. Most failures are due to normal wear and tear over time.
What kind of coolant should I use in my Saturn Vue?
Your Saturn Vue was factory-filled with DEX-COOL long-life coolant. It is an orange or pink-colored Organic Acid Technology (OAT) coolant. It is highly recommended to stick with a DEX-COOL compatible coolant to prevent cooling system problems.
Is a noisy water pump always a sign of failure?
Often, yes. A grinding, whining, or chirping noise from the front of the engine that changes with engine RPM is a classic sign of a failing water pump bearing. Sometimes, the noise could be from a belt tensioner or idler pulley, so it's wise to inspect the whole system. However, any noise from the pump itself means it needs to be replaced soon.
🎬 Watch: Learn the most common symptoms of a failing water pump.Helpful Videos
Technical Specifications
OEM Part Numbers: 12624936 12591894 12585226 24467301 12645176 12739553
Drive Type: Timing Chain (2.2L/2.4L), Timing Belt (3.0L, 3.5L 2004-07), or Serpentine Belt (3.5L/3.6L 2008-10). Gasket material is typically rubber or metal depending on the application.
