Saturn Vue Ignition Coil Guide (2002-2010): Beyond the Basics
Solving misfires in your Saturn Vue often involves more than just replacing the ignition coil.
- For V6 engines, check for oil in the spark plug tubes before replacing coils; a leaking valve cover gasket is a very common root cause.
- For 2.2L Ecotec engines, random misfires are often caused by a failed Ignition Control Module (ICM), not just the coils.
- Accessing the rear ignition coils on V6 models is difficult and requires removing the intake manifold.
- Using trusted brands like ACDelco, Delphi, or NGK is recommended for reliability and to avoid repeat failures.
Understanding Your Vue's Ignition System
When shopping for ignition coils for your 2002-2010 Saturn Vue, it's important to know which engine you have. The ignition system is different between the 4-cylinder and V6 models, and they have very different common problems.
- 2.2L 4-Cylinder (Ecotec): These engines use a single component called an ignition coil cassette or module. This part sits directly on top of the spark plugs and houses both the ignition coils and the ignition control module (ICM). Failure of the ICM is a very common source of misfires on these engines.

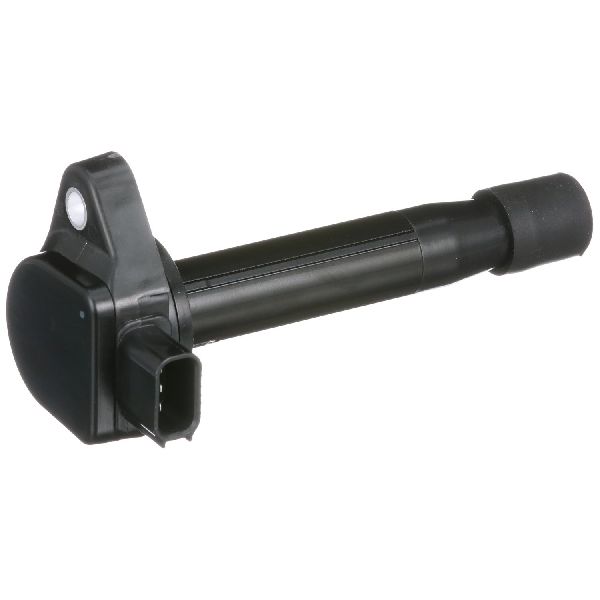

- 3.0L, 3.5L, and 3.6L V6: These engines use a more modern "Coil-On-Plug" (COP) system. Each spark plug has its own individual ignition coil sitting on top of it. This allows for more precise spark control but also means there are six separate coils that could potentially fail.
Is It Really a Bad Coil? Common Saturn Vue Issues
Before you spend money on new coils, be aware of these vehicle-specific problems that often get misdiagnosed as simple coil failure.
V6 Engines: Check for Oil Leaks First!
A very common problem on V6 Saturn Vues is a leaking valve cover gasket. Oil seeps into the spark plug tubes and soaks the bottom of the ignition coil boot. This oil causes the rubber boot to swell and degrade, allowing the spark to escape and ground against the cylinder head instead of reaching the spark plug. This causes a misfire. In many cases, the coil itself is perfectly fine; the real problem is the oil-soaked boot 🎬 See why oil in the spark plug wells causes misfires. and the leaking gasket. Replacing the coil without fixing the oil leak will only lead to the new coil failing prematurely.
2.2L Ecotec: Suspect the Ignition Control Module (ICM)
If you have a 2.2L engine with a random misfire (code P0300), the Ignition Control Module is a frequent culprit. Since the ICM is integrated into the coil cassette, the entire assembly is usually replaced as one unit. Trying to diagnose a single coil within the cassette is difficult, so replacing the whole module is the standard repair.
🎬 Watch: How to replace the ignition control module on your Ecotec.Choosing the Right Aftermarket Ignition Coil
While OEM is an option, quality aftermarket parts provide excellent value. Here’s how to choose:
- Top-Tier Brands (Recommended): Brands like ACDelco (the original GM part), Delphi (often the original equipment manufacturer), NGK, and Bosch are trusted choices. They are engineered to meet or exceed original specifications and offer the best durability. For a critical component like an ignition coil, spending a little more for a top-tier brand is a wise investment to avoid future headaches.
- Mid-Tier Brands: Brands like Standard Motor Products (SMP), Spectra, and Walker Products offer a good balance of quality and price. They are reliable alternatives to the premium brands and are a solid choice for most daily drivers.
- Economy Brands: While brands like DriveWire or other unbranded coils on sites like eBay are the most affordable, their quality can be inconsistent. They may use lower-grade materials, which can lead to a shorter service life. If your budget is the primary concern, they can get your vehicle running, but be aware that you might be replacing them again sooner than you would with a higher-quality part.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Coil (Single, V6) | $37 - $120 |
| New Aftermarket Coil Cassette (2.2L) | $80 - $265 |
| Shop Labor (per hour) | $85 - $150 |
| Total Job Cost (DIY) | $40 - $270 |
| Total Job Cost (Professional) | $185 - $450+ |
Note: Costs are estimates. V6 models requiring intake manifold removal for rear coil access will be at the higher end of the labor cost range.
Frequently Asked Questions (FAQ)
Do I need to replace all the coils at once on my V6?
While you can replace only the failed coil, it's often recommended to replace them all, especially if they are original and the vehicle has high mileage. The other coils have been subjected to the same heat and wear and may fail soon. If you are paying for labor to remove the intake manifold to access the rear coils, it is much more cost-effective to replace all three rear coils at the same time.
Were there any recalls for the Saturn Vue ignition coil?
No. There were safety recalls (NHTSA Campaign 14V490000) for the ignition switch on 2002-2007 models, which could allow the key to be removed while the car was not in park. This recall is unrelated to the ignition coils or module that generate spark for the engine.
What are the symptoms of a bad ignition coil on a Saturn Vue?
The most common symptoms include a flashing or solid Check Engine Light, engine shaking or vibrating (misfiring), rough idling, a noticeable loss of power, and reduced fuel economy. You will typically have a diagnostic trouble code like P0300 (random misfire) or P0301-P0306, indicating which cylinder is misfiring.
How difficult is it to replace the ignition coils myself?
For the 2.2L 4-cylinder engine, it is a relatively easy job that most DIYers can handle. The coil cassette is on top of the engine and held on by a few bolts. For V6 engines, the three coils on the front of the engine are also easy to access. However, the three coils on the rear bank are under the intake manifold, which must be removed for access. 🎬 Watch this walkthrough for removing the intake to reach rear coils. This makes the job significantly more difficult and time-consuming.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12590990 12610626 12618542 9118115 12632479 UF391 UF400 UF569
Varies by engine. 4-cylinder models use a single ignition coil/module cassette assembly. V6 models use individual Coil-On-Plug (COP) units.
