A Guide to Replacing the Starter Motor on Your 2002-2010 Saturn Vue
Before you buy a new starter for your Saturn Vue, make sure you know which of the six possible engines you have.
- You must correctly identify your engine (2.2L, 2.4L, 3.0L, 3.5L, or 3.6L) to get the right starter.
- Always test the battery and check cable connections first, as symptoms often overlap with a bad starter.
- Replacement difficulty and location vary significantly by engine; V6 models are generally more difficult than 4-cylinders.
- A single 'click' with no crank is the most definitive sign of a failed starter or solenoid.
Is Your Saturn Vue Starter Failing?

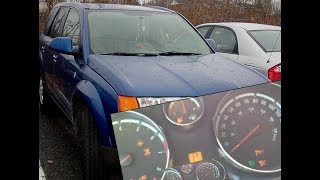

A starter motor problem often begins with small, intermittent issues before failing completely. If you notice any of these signs, it's time to inspect your starting system. 🎬 Watch: A visual guide to common bad starter symptoms Ignoring them can leave you with a vehicle that won't start at all.
- Single Loud Click: When you turn the key, you hear a single, sharp "click" but the engine doesn't turn over. This often means the starter's solenoid is engaging, but the motor itself isn't spinning.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. While a weak battery is a common cause, a failing starter can also draw too much power and produce the same symptom.
- Intermittent No-Start: Your Vue starts fine some days, but refuses to crank on others. This can get progressively worse over time.
- Grinding Noise: A grinding or whirring sound during or after cranking can indicate the starter gear is not meshing properly with the engine's flywheel or is not retracting correctly.
- Heat Soak (V6 Models): Some owners of V6 models, particularly the 3.0L, report the vehicle starts fine when cold but won't restart after it has been driven and is hot. This is a classic symptom of heat soak, where high engine temperatures affect the starter's internal electronics.
Pro Tip: Check the Battery First
Many starter problems mimic a weak or dead battery. Before replacing your starter, make sure your battery is fully charged and its terminals are clean and tight. Most auto parts stores offer free battery and charging system tests.
Engine Type is Everything
The 2002-2010 Saturn Vue used several different engines, and the starter is not one-size-fits-all. The part itself and the replacement procedure are different for each. You must identify your engine before ordering a part.

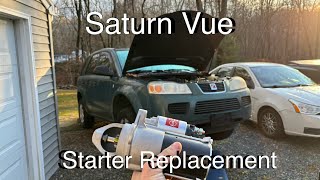

- 2.2L 4-Cylinder (2002-2007): Starter is located at the back of the engine, accessed from underneath.

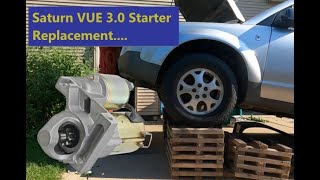

- 3.0L V6 (2002-2003): Starter is at the rear of the engine; the alternator must be removed to access it.
- 3.5L V6 (2004-2007): This is a Honda engine. The starter is on the driver's side, tucked between the engine and battery tray. Hoses may need to be moved for access.
- 2.4L 4-Cylinder (2008-2010): Starter is located low on the engine, accessible from below.

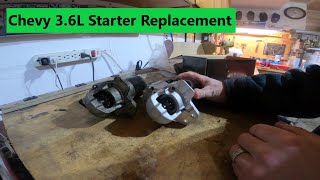

- 3.6L V6 (2008-2010): Starter is located at the front of the engine, underneath the exhaust manifold. 🎬 Watch: 3.6L starter replacement without removing the exhaust manifold
Choosing the Right Aftermarket Starter
Since Saturn is a discontinued GM brand, genuine OEM parts are scarce and expensive. New aftermarket starters offer a reliable and cost-effective solution. The key is choosing a quality brand.
Premium Aftermarket: ACDelco
ACDelco is GM's own parts brand, and their aftermarket components are engineered to meet or exceed original specifications. An ACDelco Gold starter is an all-new part, not remanufactured, and undergoes rigorous testing for durability and fit. For a former GM vehicle like the Vue, ACDelco is the closest you can get to original equipment quality in the aftermarket, offering peace of mind and excellent reliability.
Standard Aftermarket: MPA
MPA (Motor Parts of America) is a large, reputable manufacturer of aftermarket starters and alternators. They produce new and remanufactured parts that are sold under various store brand names. A new starter from MPA is a dependable, budget-friendly option that provides a balance of quality and value for daily driving.
Known Issues & Bulletins
No specific recalls have been issued by the NHTSA for the starter motor on the 2002-2010 Saturn Vue. However, owners on forums frequently report that electrical issues, such as poor battery cable connections or bad grounds, can cause no-start problems that seem like a bad starter. Additionally, a special coverage program was issued for the ignition switch on 2002-2007 models, which could allow the key to be removed without the vehicle being in Park. Always ensure your vehicle is in Park before exiting.
Saturn Vue Starter Replacement Costs
The cost to replace the starter can vary based on your engine type and whether you do the job yourself or hire a professional mechanic.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $135 - $215 |
| New Aftermarket Starter | $103 - $294 |
| New OEM Starter | $260 - $580 |
| Total Professional Replacement | $390 - $795 |
Frequently Asked Questions
Can I replace the starter on my Saturn Vue myself?
For experienced DIYers, this is a manageable job. However, the difficulty varies greatly by engine. The 4-cylinder models are generally more straightforward. V6 models can be challenging due to tight spaces and the need to remove other parts like the alternator, exhaust components, or coolant hoses. You will need a good socket set, extensions, and potentially a breaker bar for tight bolts.
Is it my battery, alternator, or starter?
A single click usually points to the starter or a bad connection. Slow cranking can be any of the three. If your headlights are bright but the car won't crank, the battery is likely okay. If jump-starting the car works, you may have a battery or alternator issue. The best way to know for sure is to have the starting and charging system tested.
Why is the starter location so different on V6 models?
Saturn used V6 engines from two different manufacturers. The 2002-2003 models used a 3.0L GM V6. The 2004-2007 models used a 3.5L V6 made by Honda. The 2008-2010 models used different GM V6 engines (3.5L and 3.6L). Each engine design has a unique layout, which dictates where accessories like the starter are mounted.
Do I need to buy a starter with a new solenoid?
Yes. All new aftermarket starters come as a complete assembly with the solenoid already attached. The solenoid is the smaller cylindrical part on top of the starter motor that acts as a powerful switch. It is almost always replaced along with the motor.

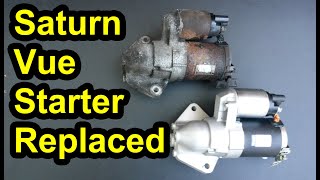

Helpful Videos
Technical Specifications
OEM Part Numbers: 12582045 12593701 31200RDMA02 10465551 12564089
Voltage: 12V. Rotation: Clockwise. Type: Permanent Magnet Gear Reduction (PMGR) or Direct Drive, depending on application.
