BMW 323i (2002-2011) Engine Oil Pressure Switch: A Complete Guide
Don't let a small, inexpensive sensor cause catastrophic damage to your BMW's engine.
- Never ignore a red oil pressure warning light; stop the engine immediately and check the oil level.
- A faulty switch is a common, inexpensive, and easy part to replace on a 2002-2011 BMW 323i.
- Oil leaking from the switch or into its electrical connector is a sure sign it needs replacement.
- For this part, a quality aftermarket brand like CRP, Vemo, or Standard Ignition is a reliable and cost-effective alternative to OEM.
Symptoms of a Failing Oil Pressure Switch
A faulty oil pressure switch can give false readings, either by failing to warn you of a real problem or by warning you of a problem that doesn't exist. The most common sign is an issue with the oil pressure warning light on your dashboard.
- Flickering Oil Light: The light may flicker, especially during turns, acceleration, or braking. This can indicate the sensor is failing or that the oil level is truly low.
- Oil Light Stays On: If the light stays on constantly, you should first check your oil level. If the level is correct, the switch may be bad, but you should not drive the car until you confirm the engine has proper oil pressure.
- Oil Light Never Comes On: The switch can also fail in the 'off' position, meaning it will never warn you of a low-pressure situation. This is dangerous as you have no warning before engine damage occurs. 🎬 Watch: 5 telltale signs of a bad oil pressure sensor
- Oil Leaks: The switch itself can develop leaks over time. You might see oil residue around the sensor or drips on the ground below it. A common failure on BMWs is for oil to leak through the sensor and into the electrical connector, causing connection problems.
Choosing the Right Aftermarket Part
For a simple but critical part like an oil pressure switch, you don't necessarily need to buy a Genuine BMW part. Several reputable aftermarket brands offer quality replacements at a lower price. Here’s a look at the brands available:
| Brand Tier | Brands | General Assessment |
|---|---|---|
| OEM / Premium Aftermarket | CRP (Rein), Vemo | CRP is a well-regarded supplier for European cars, often providing parts that meet or exceed OEM standards. Vemo is also a German brand known for quality parts, though like many companies, some production may be in China. These are solid choices for peace of mind. |
| Standard Aftermarket | Standard Ignition (SMP) | Standard Motor Products is a long-standing American company. They are a major supplier for many auto parts stores and are generally considered a reliable, quality brand for electrical components. |
| Economy / Lesser-Known | Rostra Powertrain, True Tech | Rostra primarily focuses on transmission components and other powertrain controls. Information on their sensor quality is limited. True Tech is a more budget-oriented brand. For a critical sensor like this, it's often better to stick with a more established brand. |
A Note on BMW Generations (E46 vs. E90)
The 2002-2011 year range for the 323i spans two different BMW chassis: the E46 (ending around 2005) 🎬 See this E46 oil pressure sensor replacement walkthrough and the E90 (2006-2011). The location and replacement procedure for the oil pressure switch are very similar, but always verify the part number for your specific vehicle before ordering.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on my 323i?
On both E46 and E90 generation 6-cylinder engines, the oil pressure switch is located on the oil filter housing. 🎬 Watch: How to locate and replace the sensor on E90 models You will need to remove the plastic engine cover to see it. It's a small sensor threaded into the side of the aluminum housing.
Is it difficult to replace the oil pressure switch?
No, this is a very straightforward DIY job for most home mechanics. It requires minimal tools (typically a 24mm deep socket or wrench) and can be done in under an hour. Simply remove the engine cover, unplug the electrical connector, and unscrew the old switch. A small amount of oil will leak out, so have a rag ready.
Can I drive with a bad oil pressure switch?
It is strongly recommended not to. If the switch is faulty, you have no way of knowing if your dashboard warning light is indicating a false alarm or a real, catastrophic loss of oil pressure. Driving without oil pressure can destroy an engine in minutes. It's best to have the vehicle towed or to replace the sensor immediately.
My oil light is on, but my oil level is full. Is it the switch?
It's very likely. If you have confirmed the oil level is correct, the most common cause for the light remaining on is a failed oil pressure switch. However, it could also indicate a more serious problem like a failing oil pump or clogged oil passages. Replacing the switch is an inexpensive first step in diagnosing the problem.
Do I need a special tool to replace this switch?
You will need a 24mm deep socket or a 24mm wrench to remove and install the switch. Access is generally good after removing the top engine cover. No other special BMW tools are required for this specific job.
Helpful Videos
Technical Specifications

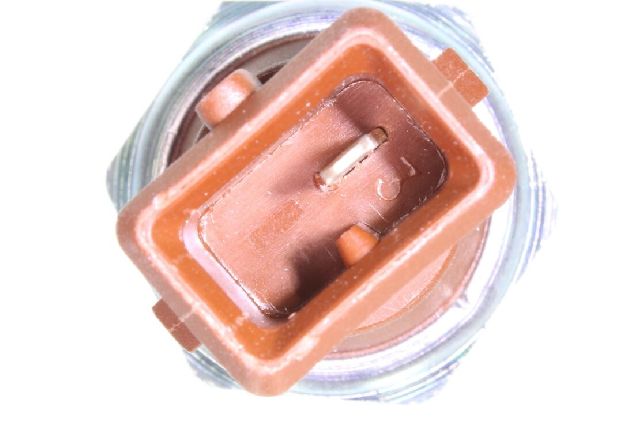

OEM Part Numbers: 12618611273 12617568480 12612367061 12617620512 12611710509
Location: Engine oil filter housing. Tool Required: 24mm deep socket or wrench.
