Ford Crown Victoria Ignition Knock Sensor Guide (2002-2011)
Understand, diagnose, and replace the knock sensor on your 4.6L V8 Panther Platform vehicle.
- A bad knock sensor will trigger a Check Engine Light (P0325) and cause poor performance and fuel economy.
- The sensors are located under the intake manifold, making replacement a significant job. Always replace both sensors at once.
- Due to the high labor cost, choosing a quality aftermarket brand like Bosch, Delphi, or NGK is a smart investment.
- There are no specific recalls for this part, but wiring can become brittle and should be inspected during replacement.
Is a Bad Knock Sensor a Serious Problem?
A failing knock sensor on your 2002-2011 Crown Victoria can lead to noticeable issues. When the sensor stops working, the engine's computer can no longer detect harmful detonation. To protect the engine, the computer will often default to a "safe mode," which retards the ignition timing. This protective measure results in reduced engine power, sluggish acceleration, and worse fuel economy. While you can usually still drive the car, ignoring the problem for too long could risk engine damage if a real knock condition occurs and goes undetected.
Key Failure Symptoms
🎬 Watch this video to see common signs of sensor failure.- Check Engine Light: The most common sign, often with code P0325.
- Reduced Power & Acceleration: The car may feel sluggish or hesitate, especially under load.
- Worse Fuel Economy: The engine runs less efficiently as the computer adjusts timing to be safe.
- Engine Pinging or Knocking: In some cases, you may hear a metallic pinging sound, which is the detonation the sensor is supposed to detect.
Choosing the Right Aftermarket Knock Sensor
For the Crown Victoria, the knock sensors are located in the valley under the intake manifold, making replacement a labor-intensive job. Because of the difficulty in accessing them, it is highly recommended to replace both sensors at the same time and to choose a quality part to avoid doing the job twice. While OEM Motorcraft is always a safe bet, several aftermarket brands offer a good balance of quality and value.
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Top Tier / OEM Equivalent | Bosch, Delphi, NGK/NTK | These brands are often original equipment suppliers to many automakers. They have a strong reputation for quality and reliability, making them a trusted choice, especially for a critical and hard-to-reach sensor. |
| Mid-Grade / Reliable Aftermarket | Standard Ignition (SMP), Walker Products | Standard Motor Products is a well-known aftermarket manufacturer. Walker Products also provides a wide range of sensors. These brands can be a cost-effective alternative to top-tier brands while still offering reliable performance for most owners. |
| Economy | Global Parts, Holstein | These brands typically represent the most budget-friendly options. While they meet basic fit and function requirements, their long-term durability and sensor accuracy may not match that of higher-priced brands. Given the labor involved in this specific repair, opting for a higher-tier brand is often recommended. |
Pro-Tip: Replace in Pairs
The 4.6L V8 engine in the Crown Victoria has two knock sensors. Since replacing them requires removing the entire intake manifold, it is strongly advised to replace both sensors at the same time, along with the wiring harness if it appears brittle or damaged. This saves you from having to repeat a difficult and time-consuming repair in the near future.
Frequently Asked Questions (FAQ)
Where is the knock sensor located on a 2002-2011 Crown Victoria?
The two knock sensors are located on the engine block, in the valley underneath the intake manifold. Accessing them requires removing the air intake, throttle body, fuel rail, and the intake manifold itself, making it a moderately difficult job.
🎬 See a step-by-step guide on how to replace these sensors.Can I drive my Crown Victoria with a bad knock sensor?
Yes, but it is not recommended for long periods. The engine computer will likely reduce power to protect the engine, leading to poor performance and fuel economy. If a severe knock condition develops, it could go undetected and cause engine damage.
What does a knock sensor replacement cost for a Crown Victoria?
Aftermarket sensors range from about $35 to $95 each. The main cost is labor due to the location. A professional shop may charge between $400 and $600 for labor to remove the intake manifold and replace the sensors.
🎬 Learn more about symptoms and typical replacement costs.Are there any recalls for the Crown Victoria knock sensor?
No, there are no specific recalls from the NHTSA for the ignition knock sensor on 2002-2011 Ford Crown Victoria models. Always check for any Technical Service Bulletins (TSBs) which may relate to the sensor or its wiring.
Helpful Videos
Technical Specifications
OEM Part Numbers: XL3Z12A699AA XL3F12A699AA

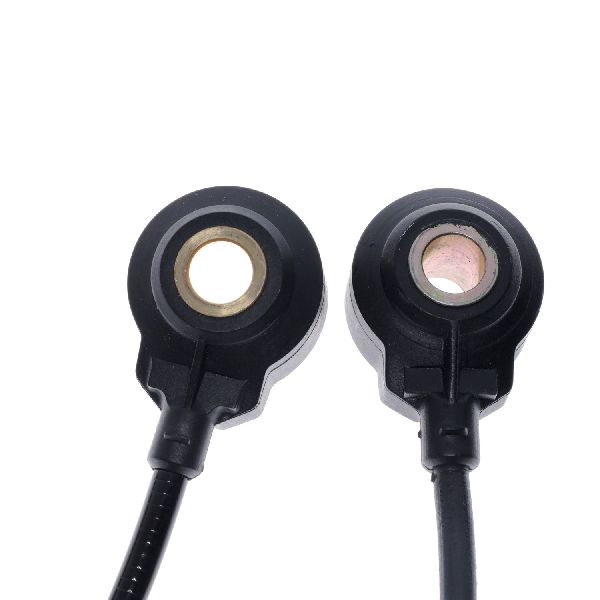

The Ford 4.6L V8 engine uses two knock sensors, which are located in the engine valley beneath the intake manifold. They are secured with a single 10mm bolt and use a 2-pin electrical connector.
