Ford Explorer Door Lock Actuator Guide for 2002-2011 Models
If one of your Ford Explorer doors won't lock or unlock electronically, this guide is for you.
- A single failed door lock is the classic sign of a bad actuator; if all locks fail, check fuses first.
- For the 2002-2011 Explorer, the actuator is part of the door latch assembly and they are replaced as one unit.
- The repair is DIY-friendly for those with basic tools, but requires working in a tight space inside the door.
- When ordering, you must specify the exact door location (e.g., Front Driver Side) as parts are not interchangeable.
Is Your Explorer's Door Lock Acting Up?
A common problem on the 2002-2011 Ford Explorer is the failure of a power door lock actuator. One day, you hit the lock button on your key fob and notice one door didn't lock with the rest. Or maybe you hear a strange buzzing or grinding noise coming from inside the door. These are classic signs that the actuator motor has worn out. This is a very common issue due to the age of these vehicles and the constant use of the door locks.
Symptoms of a Failing Door Lock Actuator
A bad actuator usually only affects a single door. If all your locks stop working at once, the problem is likely a fuse or a deeper electrical issue. But if the problem is isolated to one door, a bad actuator is the most likely cause. Look for these signs:
🎬 Watch: Common symptoms of a failing door lock actuator- Power locks don't work on one door: The door won't lock or unlock using the key fob or the interior lock switch.
- Strange noises from the door: You might hear a buzzing, clicking, or grinding sound when you try to lock or unlock the doors. This is the sound of the small electric motor inside the actuator struggling or failing.
- Erratic operation: The lock may work sometimes and not others, or it might get stuck in the locked or unlocked position.
- Door Ajar Light: In some cases, a faulty switch inside the actuator assembly can make the vehicle think the door is open when it's not, causing the 'Door Ajar' light to stay on and draining the battery.
Known Issues for Ford Explorers
While Ford has issued massive recalls for door latch problems on newer Explorers (specifically 2013-2015 models), the 2002-2011 generation was not part of these large-scale safety actions for latches that could open while driving. The failures on 2002-2011 models are typically related to the actuator motor wearing out from normal use, which is a reliability issue rather than a large-scale safety defect covered by a recall.
Choosing the Right Aftermarket Actuator
When shopping for a new door lock actuator, you'll find OEM (Original Equipment Manufacturer) parts and several aftermarket brands. For a vehicle of this age, a quality aftermarket part offers the best balance of price and reliability.

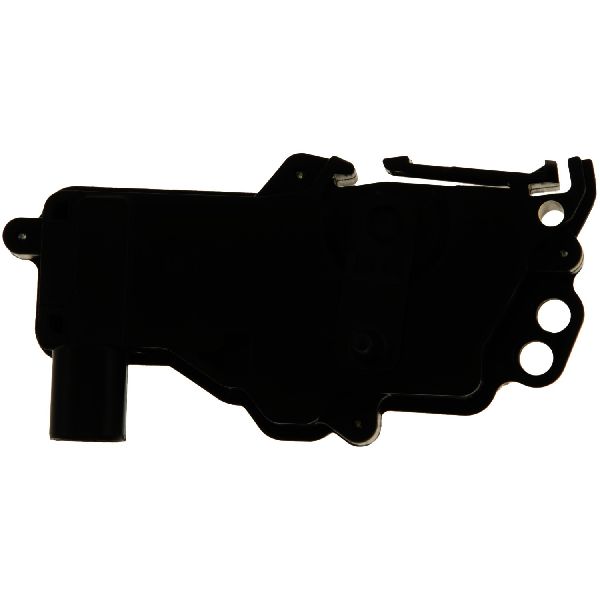

On your Explorer, the actuator is part of the latch assembly. You will be replacing the entire unit. Here’s a look at the brands available:

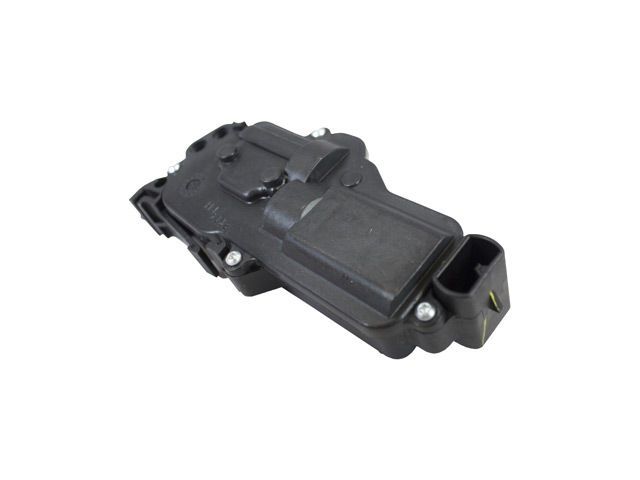

- Motorcraft: This is Ford's own parts brand. It's the OEM part, so you can expect a perfect fit and original quality. However, it is the most expensive option.
- Standard Ignition (SMP): A well-respected brand in the aftermarket for electrical components. They are known for quality control and producing parts that meet or exceed original specifications. A solid choice for reliability.
- Continental: Another top-tier aftermarket manufacturer known for producing OEM-quality parts for many car brands. Their products are a reliable alternative to the dealer part.
- Replacement: This is often a budget-friendly option. Quality can vary, but they provide a low-cost solution to get the job done. They are a good choice if your main concern is budget.
Cost of Replacing a Door Lock Actuator
The cost depends on whether you do the job yourself or take it to a shop. With parts readily available and plenty of online tutorials, many owners find this is a manageable DIY project.
🎬 See this step-by-step guide for replacing the driver's side actuator| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $25 - $150 |
| New OEM (Motorcraft) Actuator | $220 - $280 |
| Shop Labor | $160 - $255 |
| Total (Shop Repair) | $380 - $535 |
Frequently Asked Questions
Can I replace just the motor or do I need the whole assembly?
For the 2002-2011 Ford Explorer, the actuator motor is integrated into the door latch assembly. While some videos for other vehicles show motor-only swaps, the standard and most reliable repair is to replace the entire latch/actuator unit. This also replaces the latch mechanism and door ajar switch, which are other potential points of failure.
Is this a difficult job to do myself?
It is considered an intermediate-level DIY repair. You will need basic tools like a socket set, screwdrivers, and trim removal tools. The process involves removing the interior door panel, carefully peeling back the weather barrier, and working in the tight space inside the door. It typically takes 1.5 to 3 hours for one door.
Will a bad actuator drain my battery?
Yes, it can. If the actuator fails in a way that causes the 'Door Ajar' switch to malfunction, the vehicle's computer may think a door is always open. This can keep the interior lights on and prevent the vehicle's modules from going into 'sleep' mode, leading to a drained battery.
All my door locks stopped working at once. Is it the actuators?
No. If all doors fail simultaneously, the problem is not the individual actuators. It is more likely a blown fuse, a bad relay, or an issue with the Body Control Module (BCM). An actuator failure is almost always isolated to a single door.
Helpful Videos
Technical Specifications
OEM Part Numbers: SW-8718 SW-6953 SW-8552 SW-6952 SW-6951
For the 2002-2011 Ford Explorer, the door lock actuator is an integrated component of the door latch assembly. It includes the electric motor, mechanical latch, and the door ajar sensor in a single unit. Replacement requires removing the interior door panel and disconnecting mechanical rods and electrical connectors. Tools commonly required include a trim panel removal set, socket set (7mm, 8mm, 10mm), and a Torx T27 bit.
