A Ford Explorer Owner's Guide to Ignition Coils (2002-2011)
If your Explorer is running rough, misfiring, or losing power, a bad ignition coil is a likely culprit—here's how to choose the right replacement.
- A flashing check engine light means stop driving to avoid expensive catalytic converter damage.
- For the 4.6L 3V V8 engine, be aware of the potential for spark plugs to break during removal; it's a well-known issue.
- Replacing all coils at once is recommended for long-term reliability, as they tend to fail around the same time.
- Using dielectric grease on the new coil boot is essential to prevent moisture damage and ensure a good connection.
Is Your Explorer Showing Signs of a Bad Ignition Coil?
Ignition coil failure is a common issue on Ford Explorers as they age. The constant heat from the engine can cause the coil's internal windings and external plastic housing to break down. When a coil starts to fail, it can't deliver the powerful spark the engine needs, leading to noticeable performance problems.
The most common symptoms include:
- Engine Misfires: The engine may shake or stumble, especially when idling or accelerating.
- Flashing Check Engine Light: This is a serious warning. A flashing light indicates a misfire severe enough to potentially damage your expensive catalytic converter. You should stop driving as soon as it's safe.
- Rough Idle: Your Explorer may feel shaky or vibrate abnormally when stopped in gear.
- Loss of Power & Poor Acceleration: The vehicle may feel sluggish and struggle to get up to speed.
- Reduced Fuel Economy: An inefficient spark means wasted fuel, so you'll find yourself at the gas station more often.
⚠️ Critical Warning for 4.6L V8 Owners (2006-2010)
If you have the 4.6L 3-valve V8 engine, be aware that the original equipment two-piece spark plugs have a known issue where they can break off in the cylinder head during removal. Since you must remove the ignition coil to access the spark plug, this is a major consideration. Many mechanics recommend replacing the plugs at the same time as the coils. If you are doing this job yourself, proceed with extreme caution and consider using a special removal tool.

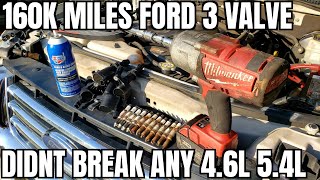

🎬 Learn the best method for removing these plugs without breaking.Choosing the Right Aftermarket Ignition Coil
When it comes to ignition coils for your Explorer, you get what you pay for. While budget options are tempting, they often have higher failure rates. Here’s a breakdown of your choices:
- OEM (Motorcraft): Ford's own brand, Motorcraft, is the benchmark for quality and reliability. They are engineered specifically for your vehicle and are the safest bet for long-term performance, though they are the most expensive option.
- Premium Aftermarket (e.g., NGK, Delphi, Denso, Bosch): These brands are often original equipment suppliers for many automakers and are known for producing high-quality parts that meet or exceed OEM specifications. They offer a great balance of performance, reliability, and price.
- Quality Aftermarket (e.g., Standard Motor Products, Hitachi): These brands have a solid reputation and are a dependable choice for a repair that won't break the bank.
- Budget Brands: Many low-cost coils are available online. While the initial price is low, they are a gamble. Forum discussions and mechanic reviews often point to a much shorter lifespan and a higher likelihood of premature failure, which could leave you stranded and replacing the part again sooner than you'd like.
Pro Tip: Replace in Sets?
If one coil has failed due to age and heat, the others are likely not far behind. While you can replace just the single failed coil to save money upfront, many mechanics recommend replacing all 6 (for the V6) or 8 (for the V8) at the same time. This prevents you from having to do the same repair again in a few months and ensures consistent performance across all cylinders.
How Much Does an Ignition Coil Replacement Cost?
Replacing an ignition coil on a 2002-2011 Explorer is a relatively straightforward job. The coils are located on top of the engine and are easy to access. This makes it a great DIY task for those with basic tools.
| Item | Cost (Single Coil) | Cost (Set of 6 or 8) |
|---|---|---|
| New Aftermarket Coil | $22 - $90 | $130 - $650 |
| New OEM (Motorcraft) Coil | $47 - $80 | $350 - $640 |
| Shop Labor | $80 - $150 | $150 - $300 |
| DIY Total (Aftermarket) | $22 - $90 | $130 - $650 |
| Shop Total (Aftermarket) | $102 - $240 | $280 - $950 |
*Cost estimates are approximate and can vary based on location, brand, and vehicle engine (V6 vs. V8).
Frequently Asked Questions
How do I find which ignition coil is bad?
If your check engine light is on, an OBD-II code scanner will point you to the specific cylinder that's misfiring. Codes P0301 through P0308 indicate a misfire on the corresponding cylinder (e.g., P0304 is cylinder 4). Codes P0351 through P0358 point directly to a fault in the ignition coil circuit for that cylinder. If you don't have a scanner, you can try swapping the suspected bad coil with a known good one from another cylinder. If the misfire follows the coil, you've found your problem.

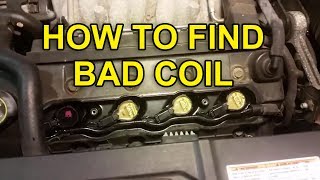

🎬 Watch this guide on diagnosing and replacing a bad coil.Should I replace the spark plugs at the same time?
It is highly recommended. The ignition coil has to be removed to access the spark plug anyway, so you save on future labor. A worn spark plug can also put extra strain on a new ignition coil, causing it to fail prematurely. This is especially critical for the 4.6L V8 with its problematic spark plug design.
Is this a difficult job to do myself?
For most 2002-2011 Explorers, this is a beginner-friendly job. The coils are on top of the engine and held in by a single small bolt (usually 7mm or 8mm). The process is simply to unplug the electrical connector, unbolt the coil, pull it off the spark plug, and reverse the process with the new part. The passenger side rear coils can be a little tight to reach, but it is very manageable with a socket extension.

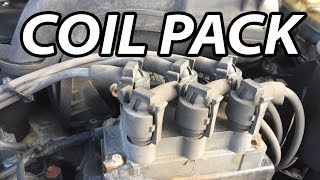

🎬 See how to replace the coil pack on a V6 engine.Do I need to put dielectric grease on the new coil?
Yes. Applying a small amount of dielectric grease to the inside of the new coil boot is a crucial step. This grease helps seal out moisture, prevents the boot from getting stuck to the spark plug, and ensures a good electrical connection. Many new coils come with a small packet of grease.
Helpful Videos
Technical Specifications
OEM Part Numbers: DG508 DG511 DG521 FOTZ-12029-A 3W7Z-12029-AA 1L2Z-12029-AA
The 2002-2011 Ford Explorer uses two main engine types, each with a different ignition coil setup. The 4.0L V6 uses a single ignition coil pack with spark plug wires. The 4.6L V8 uses a Coil-On-Plug (COP) system with 8 individual coils. Both systems are controlled by the Powertrain Control Module (PCM).
