Ford Ranger Ignition Lock Cylinder Guide (2002-2011)
If your Ranger's key is stuck, won't turn, or the truck won't start, your ignition lock cylinder has likely failed.
- Replacement is very easy and can be done in under 30 minutes without removing steering column trim.
- You must address the PATS key programming; either program the new keys or keep an old key near the ignition.
- Common failure symptoms include the key getting stuck, being hard to turn, or the truck failing to start.
- Brand quality matters; Motorcraft and Standard are top choices, while Dorman offers a good value alternative.
Is Your Ranger's Ignition Giving You Trouble?
A failing ignition lock cylinder is a common problem on the 2002-2011 Ford Ranger. Over time, the small metal tumblers and springs inside the cylinder wear out from thousands of key turns. This wear can cause a variety of frustrating symptoms, from the key feeling sticky to the truck not starting at all. Fortunately, this is a straightforward and affordable repair you can often do yourself.
Symptoms of a Bad Ignition Lock Cylinder
When the lock cylinder starts to fail, it will give you clear warning signs. Ignoring them can leave you stranded. Look out for 🎬 Watch: How to get a stuck key out of the ignition these common issues:
- Key is Hard to Insert or Remove: You might feel resistance or have to jiggle the key to get it in or out of the ignition. This is caused by worn tumblers binding inside the cylinder.
- Key Won't Turn: The most common failure is the key getting stuck and refusing to turn to the 'ON' or 'START' position. This happens when the tumblers are so worn they no longer align correctly.
- Truck Won't Start: You can turn the key, but the engine doesn't crank. The lock cylinder isn't properly engaging the electronic ignition switch behind it.
- Key Gets Stuck in the Ignition: You can start and stop the truck, but you can't turn the key back to the 'OFF' position to remove it. This can be a mechanical failure inside the cylinder or an issue with the shift interlock system.
The PATS Key System
Most 2002-2011 Rangers use a Passive Anti-Theft System (PATS) with a chip in the key. The ignition lock cylinder itself is purely mechanical and does not contain any electronics. However, when you replace the cylinder, it will come with new keys. You cannot use your old chipped key in the new cylinder. You will need to either have the new keys programmed to your truck or keep an old key on your keychain near the ignition to be recognized by the PATS transceiver ring. Some aftermarket kits, like certain ones from Dorman, include tools to re-key the new cylinder to match your original keys.
🎬 See how to re-key a Dorman cylinder to your original keyChoosing the Right Aftermarket Lock Cylinder
You have several options when buying a new lock cylinder. Quality can vary, so it's important to know the difference.
Tier 1: OEM-Equivalent Brands
- Motorcraft: This is Ford's official parts brand and the original equipment manufacturer. It offers a guaranteed fit and the highest quality, but it is also the most expensive option. If you want a part that matches what came from the factory, choose Motorcraft.
- Standard Motor Products (Standard Ignition): A well-respected aftermarket brand known for making high-quality parts that often meet or exceed original specifications. Mechanics trust SMP for its reliability and durable construction, making it a strong alternative to Motorcraft.
Tier 2: Quality Aftermarket Brands
- Dorman: Dorman is a popular aftermarket choice that offers good value. They are known for creating kits that sometimes improve on the original design or include helpful tools, like re-keying kits for certain models. While generally reliable, quality can sometimes be inconsistent compared to top-tier brands.
Tier 3: Budget-Friendly Options
- Replacement: This category includes various house brands and value-focused manufacturers. These parts are the most affordable and will get the job done, but may not have the same long-term durability or precision fit as more expensive brands. They are a good option for a quick, budget-conscious repair.
Cost of Replacing a Ford Ranger Ignition Lock Cylinder
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard, Replacement) | $33 - $154 |
| New OEM (Motorcraft) | $75 - $125 |
| Shop Labor | $75 - $150 |
DIY Replacement is Easy
Replacing the ignition lock cylinder on a 2002-2011 Ranger is a very simple job that usually takes less than 30 minutes. You do not need to remove the steering column covers. Simply insert the key, turn it to the 'ON' position, and push a small pin or probe up through a hole on the underside of the steering column cover to release the cylinder. Then, you can pull the old cylinder straight out.

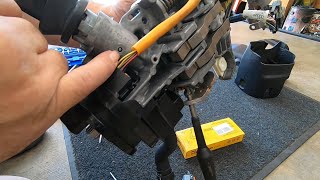

🎬 Watch: This quick video shows the 60-second replacement processFrequently Asked Questions
Do I need to remove the steering wheel to replace the lock cylinder?
No. On the 2002-2011 Ford Ranger, you do not need to remove the steering wheel or even the plastic covers around the steering column. The cylinder can be accessed and removed through a small hole on the bottom of the column cover.
Will I need to program my new keys?
Yes, if your truck has the PATS anti-theft system. The new lock cylinder comes with new keys that do not have a programmed chip. You will either need a locksmith or dealer to program the new keys, or you can keep one of your old, programmed keys on the same keychain so the truck's anti-theft transceiver can read its chip.
What tools are needed for the replacement?
You typically only need a thin, sturdy tool like a small screwdriver, an awl, or a center punch to press the release pin. You will also need the key for the old cylinder to turn it to the 'ON' position for removal.
Can I use my old key with the new lock cylinder?
No, the new lock cylinder is keyed differently and comes with its own set of keys. However, some Dorman kits come with instructions and parts to allow you to re-tumble the new cylinder to match your old key, which can be a great way to avoid key programming issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1L3Z-11582-A 1L3Z-11582-AB F69Z-11582-AA F6DZ-11582-AA
Steering column mounted, mechanical lock cylinder. Most aftermarket kits include two new keys. Note that these are typically non-transponder keys.
