A Guide to the 2002-2011 Mercury Grand Marquis Engine Timing Set
Address that engine rattle in your 4.6L V8 before it leads to a catastrophic failure.
- The primary failure point is the original plastic timing chain guides and tensioners, which become brittle and break.
- A rattling noise on startup is the key symptom and should be addressed immediately to prevent catastrophic engine damage.
- This is a complex, labor-intensive repair; professional installation is highly recommended for most owners.
- When replacing, use a complete, high-quality kit and consider upgrading to one with metal tensioners for improved durability.
The Weak Link in Your 4.6L V8
The 4.6L 2V engine in the 2002-2011 Mercury Grand Marquis is known for its durability, but it has one very common weak point: the timing chain system. The original factory timing chain guides were made of plastic. After tens of thousands of miles and countless heat cycles, this plastic becomes brittle, cracks, and eventually breaks apart. When a guide breaks, the timing chain becomes loose. This causes a distinct rattling or slapping noise, especially on a cold start 🎬 Watch: Hear what a dangerous 4.6L startup rattle sounds like. when oil pressure is low. The broken plastic pieces can fall into the oil pan, get sucked into the oil pump pickup tube, and starve the engine of oil, leading to major damage.
Choosing the Right Aftermarket Timing Set
Because this is such a well-known issue, replacing the timing set is a common repair. While you can get original equipment (OEM) parts from Ford, many high-quality aftermarket kits offer a significant upgrade. The primary failure point is the plastic components, so choosing a kit with improved materials is a smart investment.
When shopping for a new aftermarket timing set, you will find several brands available. For a job this critical and labor-intensive, it is best to invest in a quality kit.
- INA: INA is a major OEM supplier for many car manufacturers and is known for producing high-quality bearings and valvetrain components. An INA kit is considered a reliable, premium choice that meets or exceeds factory specifications.
- Melling: Melling is another top-tier brand, highly regarded for its timing components. Many mechanics and owners prefer Melling kits because they often include upgraded parts, such as cast-iron timing chain tensioners, which are far more durable than the original plastic-bodied ones.
Pro Tip: Upgrade Your Components
Given that the original plastic guides and tensioners are the root cause of the problem, strongly consider an aftermarket kit that specifically includes upgraded materials like metal-bodied tensioners. This is a significant durability improvement over the stock design.
What Else to Replace at the Same Time
Replacing the timing set is a very labor-intensive job that requires removing the engine's front cover. To save hundreds or even thousands of dollars in future labor costs, it is highly recommended to replace other accessible parts "while you're in there."
- Water Pump
- Oil Pump (especially if you've found plastic in the oil pan 🎬 Watch: See how bad timing guide failure can actually get.)
- Front Crankshaft Seal
- Thermostat and Gasket
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $299.60 |
| Shop Labor | $900 - $1,500 |
| Total Professional Job | $1,200 - $1,800+ |
Note: Costs are estimates and can vary significantly based on your location and repair shop rates. The job is labor-intensive.
Frequently Asked Questions (FAQ)
When should I replace my timing set?
Unlike timing belts, timing chains do not have a scheduled replacement interval. You should replace the timing set as soon as you notice symptoms of failure, such as a rattling noise on startup. Many owners of high-mileage vehicles (100,000+ miles) choose to replace them as a preventive measure to avoid catastrophic failure.
Can I just replace the one broken guide or tensioner?
No. The cost of this repair is almost entirely labor. Since all the timing components have the same amount of wear and are prone to failure, you should always replace the entire set at once. This includes both chains, all guides, both tensioners, and the sprockets.
Is this a DIY job?
For most owners, this is not a DIY job. It is a complex repair that requires a deep understanding of engine mechanics, significant disassembly of the engine front, and potentially special tools to hold the camshafts in position. Professional installation is strongly recommended.
🎬 See this full walkthrough of the timing chain replacement process.Are there any recalls for this issue?
No, there are no official NHTSA safety recalls for timing chain failure on the 2002-2011 Mercury Grand Marquis. The problem is widely documented but is considered a wear-and-tear or maintenance issue by the manufacturer.
What happens if the timing chain breaks?
If a timing chain breaks or jumps several teeth while the engine is running, the pistons will likely collide with the engine valves. This is an "interference engine" design. This collision causes catastrophic damage, often requiring a complete engine replacement. This is why addressing the warning signs early is so important.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3R3Z-6A257-DA F6AZ-6L266-DA F6AZ-6L266-CA F8AZ-6M274-AA 2L1Z-6K297-AA 4L3Z-6M256-AA XL3Z-6306-AA

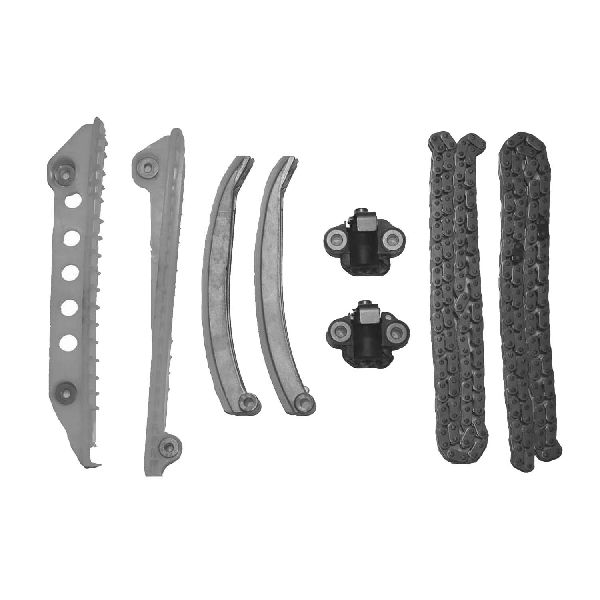

Fits 4.6L SOHC 2-Valve V8 (Non-VVT) engines. Complete kits typically include 2 timing chains, 2 tensioners, 2 tensioner arms, 4 timing guides, 1 crankshaft sprocket, and 2 camshaft sprockets.
