A Deep Dive into the 2002-2012 Honda Civic Vehicle Speed Sensor
Understand the common failures, symptoms, and replacement options for your Civic's speed sensor.
- A faulty VSS on a 2002-2012 Civic will cause an erratic speedometer and poor automatic transmission shifting.
- Check for codes P0500 or P0720 to help confirm the VSS is the problem.
- Replacement is a simple DIY job for most, located on the transmission and accessible after removing the airbox.
- Before replacing the sensor, always inspect the wiring and connector, as they are a known point of failure.
Understanding Vehicle Speed Sensor Failure in Your Civic
When the Vehicle Speed Sensor (VSS) in a 2002-2012 Honda Civic begins to fail, it doesn't always happen at once. You might first notice your speedometer needle jumping erratically or dropping to zero while you're driving. For automatic transmission models, you may experience harsh or delayed shifting, as the car's computer doesn't know the correct speed to command a gear change. These symptoms often trigger a Check Engine Light, with diagnostic trouble codes like P0500 or P0720 being the most common indicators.
🎬 Watch: Learn more about the signs of a bad VSS.Input vs. Output Speed Sensors
Automatic transmission Civics have both an input and an output speed sensor. The output sensor (VSS) is the primary cause of speedometer and shifting issues. The input sensor measures the speed of the transmission's input shaft. 🎬 See this walkthrough for replacing the input speed sensor. While they are separate parts, some mechanics recommend replacing them in pairs, especially on higher-mileage vehicles, as they are similar in age and wear.
Choosing the Right Aftermarket VSS for Your Civic
When it comes to replacing the VSS, you don't always have to buy the expensive OEM part from the dealer. Many aftermarket brands offer quality replacements. However, quality can vary, so it's important to choose wisely.
Tier 1: OEM-Quality Aftermarket Brands
These brands are known for manufacturing parts that meet or exceed original equipment specifications. They are a reliable choice for a long-lasting repair.
- Delphi: A well-respected OEM supplier for many car manufacturers, known for high-quality electronics.
- Standard Motor Products (SMP): A long-standing brand in the aftermarket with a reputation for producing dependable sensors.
- Beck/Arnley: Specializes in sourcing parts that match the original form, fit, and function for import vehicles like Honda.
Tier 2: Reputable Value Brands
These brands offer a good balance of quality and price, making them a solid choice for budget-conscious repairs.

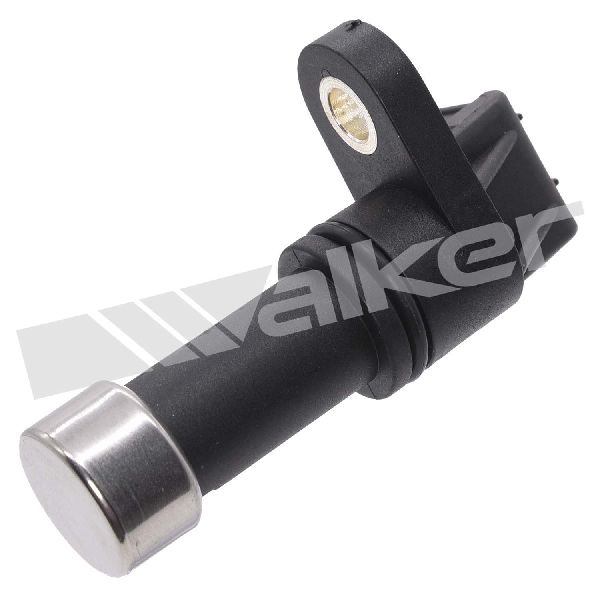

- Walker Products: A known manufacturer of engine management sensors.
- Holstein: Provides a range of sensors that are tested to ensure performance and reliability.
- Vemo: Often seen as a quality option in the aftermarket.
Pro Tip: Forum discussions among Honda owners suggest that wiring harness issues can sometimes be the real problem, not the sensor itself. Before replacing the sensor, inspect the connector and wiring for any signs of corrosion or damage. Sometimes, simply cleaning the connection or replacing a damaged pigtail connector can solve the problem.
Cost of Replacing a Honda Civic Vehicle Speed Sensor
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $45 - $90 |
| New Aftermarket Part | $25 - $234 |
| Shop Labor | $80 - $150 |
| Total Professional Replacement | $105 - $384 |
Frequently Asked Questions
Where is the VSS located on my 2002-2012 Civic?
The VSS is located on the top or back of the transmission housing. For the 8th generation Civic (2006-2011), you will likely need to remove the air filter box to access it. 🎬 Watch: Step-by-step guide to replacing the output speed sensor. The sensor is typically held in by a single 10mm or 12mm bolt.
Can I replace the VSS myself?
Yes, this is a very DIY-friendly repair for most home mechanics. It usually requires basic hand tools like a ratchet and sockets. The main challenge can be accessing the sensor, which may require removing the air intake assembly. The sensor itself can sometimes be stuck in the transmission housing and may require gentle wiggling with pliers to remove.
What are the error codes for a bad VSS?
The most common trouble code is P0500, which directly indicates a Vehicle Speed Sensor Malfunction. For automatic transmissions, you might also see P0720, which points to a problem with the Output Speed Sensor Circuit.
Are there any recalls for this part on my Civic?
Yes, there was a safety recall for some 2006-2007 Honda Civics related to the rear ABS wheel speed sensors. An improperly installed sensor could allow water to enter and damage the wheel bearing, potentially causing a wheel to fall off. While this is a different sensor from the transmission-mounted VSS that controls the speedometer, it's important to ensure this recall work was performed on your vehicle if it falls within the affected range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28820-PCJ-014 28820-RPC-003 28810-5DJ-004
The VSS for the 2002-2012 Honda Civic is typically a 3-pin magnetic sensor that mounts to the transmission housing. It is held in place by a single bolt. Automatic transmission models use distinct input and output sensors, which may differ in length and connector style.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
