Jeep Liberty 2002-2012 Disc Brake Hardware: A Complete Guide
Solve common brake noise and sticking issues on your Jeep Liberty by understanding this critical, often-overlooked part.
- Always replace your disc brake hardware kit when changing brake pads to prevent common Jeep Liberty issues like noise and sticking.
- Sticking or dragging brakes are a frequent problem for the Liberty, often caused by corroded caliper slide pins which are part of the hardware.
- Use a high-temperature silicone-based grease on the caliper slide pins to ensure smooth operation and prevent future seizing.
- Quality aftermarket brands like Raybestos, Centric, and Dynamic Friction offer excellent value and performance for this part.
Is Your Jeep Liberty's Brake Hardware Failing?
For the 2002-2012 Jeep Liberty (both KJ and KK generations), many braking issues that are blamed on pads or calipers actually start with old, corroded hardware. Because these Jeeps are known to be susceptible to rust, especially in the "salt belt," the small steel clips and pins of the brake system are often the first to fail. When this hardware rusts or gets clogged with brake dust, it can cause serious problems.
Key Failure Symptoms
- Dragging or Sticking Brakes: This is a very common complaint from Liberty owners. You might feel like the Jeep is sluggish or fighting against itself, especially after it has warmed up. After a drive, you may notice one wheel is significantly hotter than the others and emits a burning smell. This is often caused by seized caliper slide pins, which are unable to move freely due to rust or old, hardened grease.
- Brake Noise: Squealing, scraping, or grinding sounds are a clear sign of a problem. While often a sign of worn pads, it can also mean the hardware isn't allowing the pads to retract properly. A Technical Service Bulletin (TSB-05-001-04) was issued for early models regarding a "rear brake moan" in cold weather, highlighting the platform's sensitivity to brake noise.
- Uneven Brake Pad Wear: If you find the inner brake pad is much more worn than the outer pad (or vice-versa), it's a tell-tale sign of sticking slide pins or improperly seated pads. The hardware is responsible for ensuring even pressure and movement.
Choosing the Right Aftermarket Hardware Kit
For a part like a brake hardware kit, you do not need to buy expensive OEM parts. Quality aftermarket kits often meet or exceed OEM specifications and can offer better materials, such as stainless steel, for a lower price. When you perform any brake service on your Liberty, replacing the hardware is a cheap and effective way to prevent future problems.
Brand Tiers for Your Jeep Liberty
- Premium Aftermarket (Raybestos, Dynamic Friction, Centric): These brands are well-regarded in owner forums and by mechanics. Dynamic Friction (DFC) is often noted for using stainless steel components, which offer superior corrosion resistance—a major plus for the Liberty. Raybestos and Centric are trusted names that provide reliable, quality kits that are a significant step up from reusing old hardware.
- Standard Aftermarket (Carlson, Dorman): These brands offer a dependable and affordable replacement. They are widely available and provide all the necessary components for a complete hardware refresh. While they may use standard plated steel instead of stainless, they are still a massive improvement over worn-out original parts.
Cost of Replacing Your Disc Brake Hardware
The hardware kit itself is inexpensive. The cost comes from the labor involved, as it's replaced during a full brake pad and rotor job. The prices below reflect the cost for a single axle (front or rear).
| Part Category | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $6 - $32 |
| Shop Labor (as part of a brake job) | $120 - $250 |
Frequently Asked Questions
Can I just replace the brake pads and not the hardware?
It is strongly advised against. Old hardware is the primary cause of noise and sticking calipers. A new hardware kit is very cheap and ensures your new pads and rotors work correctly and last their full service life. For a Jeep Liberty, which is prone to rust, new hardware is essential.
Is there a difference between KJ (2002-2007) and KK (2008-2012) hardware?
Yes, the brake systems differ between the KJ and KK generations, and sometimes even within the same year for front and rear axles. Always enter your exact vehicle year and sub-model to ensure you are purchasing the correct front or rear hardware kit. Fitment is not interchangeable.
My brakes are sticking. Is it the caliper or the hardware?
It's often both, but the problem usually starts with the hardware. The rubber boots for the caliper slide pins (part of the hardware kit) tear or fail, allowing moisture and dirt in. This causes the pins to rust and seize, which leads to a "stuck" caliper. Replacing the hardware and properly lubricating the pins during a brake job is the best prevention.
Are there any recalls for the brake hardware on my Liberty?
No, there are no specific NHTSA recalls for the disc brake hardware itself. There was a recall for the parking brake lever on some 2008 models with manual transmissions and major recalls for suspension corrosion, but these do not involve the service brake hardware.
Technical Specifications

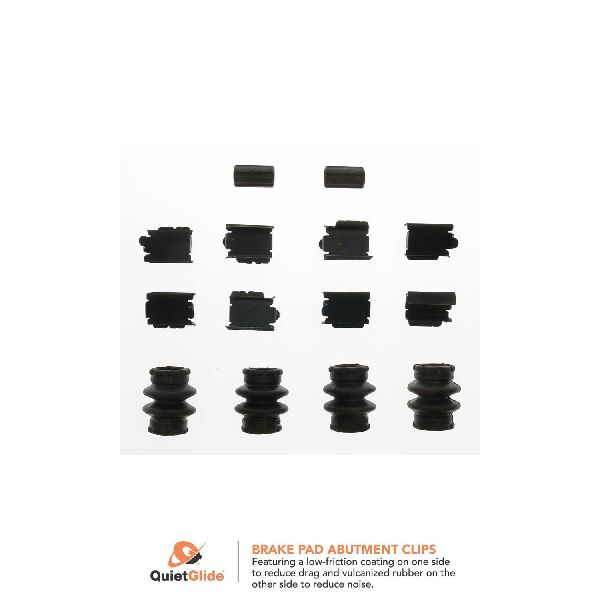

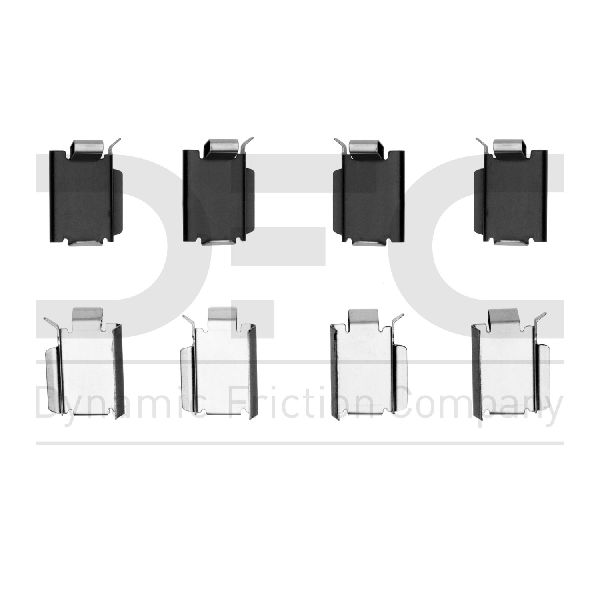

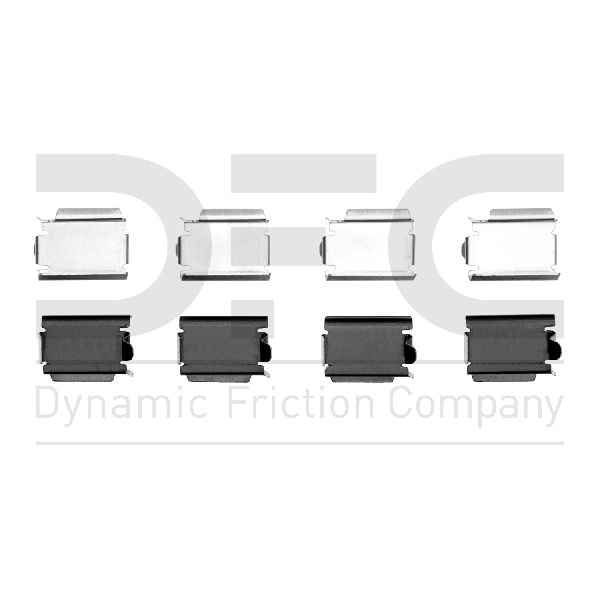

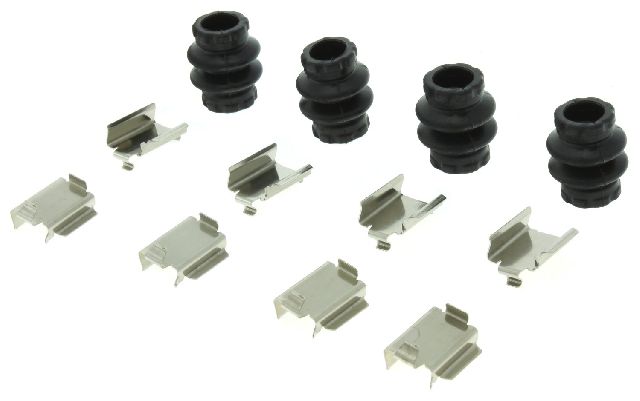

Kit components vary by axle (front/rear) and year. Kits typically include abutment clips (anti-rattle clips), caliper slide pin boots, and sometimes springs or retaining clips. Stainless steel clips offer the best corrosion resistance.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
