Jeep Liberty Speed Sensor Guide: Solving Speedometer and Shifting Problems (2002-2012)
Fix your Jeep's faulty speedometer or erratic shifting by identifying the correct speed sensor for your specific year.
- For 2002-2007 models, the speedometer is controlled by the sensor on the rear differential, not the transmission.
- For 2008-2012 models, the speedometer is controlled by the ABS wheel speed sensors.
- Harsh shifting is caused by the transmission speed sensors, which are separate from the speedometer sensor.
- Always inspect the wiring harness to the rear differential sensor for damage before buying a new part.
Which Sensor Does Your Jeep Liberty Need?
Before buying a part, it's critical to know which sensor has failed. Your Jeep's year and symptoms are the key. Making the wrong choice is a common and frustrating mistake.
- If your SPEEDOMETER is not working (and you have a 2002-2007 model): You likely need the Rear Differential Speed Sensor.
- If your TRANSMISSION is shifting harshly or stuck in gear (any year with automatic transmission): You likely need the Transmission Input/Output Speed Sensors.
- If your SPEEDOMETER is not working (and you have a 2008-2012 model): The problem is with one of your ABS Wheel Speed Sensors, not a single vehicle speed sensor.
Symptom 1: Speedometer and Odometer Failure (Code P0501)
For 2002-2007 Jeep Liberty (KJ) models, the most common cause of a dead speedometer, odometer, and non-functioning cruise control is a failed Rear Differential Speed Sensor. This failure often triggers a Check Engine Light with code P0501. In some cases, it can even cause the engine to stall when you slow down.
Check the Wiring First!
Before replacing the sensor, inspect its wiring harness. 🎬 See how to fix a rear wheel speed sensor circuit and wiring. The wires run near the parking brake cable and can easily get chafed or damaged, causing a short. Repairing the wiring may fix the problem without needing a new sensor.
Known Issue: 2005 Jeep Liberty TSB
A Technical Service Bulletin (TSB) was issued for some 2005 models because the wrong type of fluid was used in the rear differential from the factory. This fluid could damage the speed sensor over time. The official fix was to drain the fluid, clean the differential, and replace the sensor.
Symptom 2: Harsh Shifting and Limp Mode (Code P0720)
If your Liberty's speedometer works fine but the automatic transmission is shifting hard, delaying shifts, or is stuck in one gear (known as 'limp mode'), the problem is likely the Transmission Output Speed Sensor. This sensor tells the transmission control module (TCM) how fast to shift. A failure here will usually set a P0720 trouble code.
🎬 Watch this walkthrough for fixing a P0720 output shaft sensor code.Replace as a Pair
The 42RLE transmission used in the Liberty has both an input and an output speed sensor located on the driver's side of the transmission case. Many mechanics and experienced owners recommend replacing both sensors at the same time to ensure reliability, as they are a common failure point.
Choosing the Right Aftermarket Speed Sensor
While OEM Mopar sensors are always an option, quality aftermarket parts can offer reliable performance for less money. However, forum discussions suggest the 42RLE transmission can be sensitive, with many owners preferring Mopar sensors for transmission-related issues to guarantee compatibility.
- Premium Aftermarket (Delphi, Standard Ignition): These brands are often suppliers to original manufacturers and have a strong reputation for quality and reliability. They are a solid choice if you want near-OEM performance without the dealer price tag.
- Standard Replacement (Holstein, Walker Products, Rostra): These brands provide a good balance of quality and value. They are dependable replacements for a daily driven vehicle and meet original specifications.
- Budget-Friendly (Crown Automotive): Crown is well-known in the Jeep community for offering a wide range of affordable parts. For a simple sensor like the rear differential VSS, this can be a cost-effective solution.
Typical Replacement Costs
This table reflects costs for the most commonly replaced part, the Rear Differential Speed Sensor.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $23 - $48 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $73 - $148 |
Frequently Asked Questions
I replaced the sensor on my transmission, but my speedometer still doesn't work. Why?
On 2002-2007 models, the speedometer gets its signal from the sensor on the rear differential, not the transmission. You likely replaced the transmission output sensor, which only affects shifting. You need to replace the rear differential sensor to fix the speedometer.
Where is the speed sensor on my 2010 Jeep Liberty?
Later model (2008-2012) Jeep Libertys do not have a single vehicle speed sensor for the speedometer. Instead, the computer uses the signals from the four ABS wheel speed sensors to determine how fast the vehicle is going. If your speedometer is out, you'll need a scanner that can read ABS codes to find which wheel sensor has failed.
🎬 Watch: How to replace a rear ABS sensor on 2008-2012 models.What's the difference between the transmission output sensor and the rear differential sensor?
The transmission output sensor's only job is to tell the transmission computer when to shift gears. The rear differential sensor's only job is to tell the speedometer and cruise control how fast the Jeep is moving. They are not interchangeable and fix completely different problems.
Can I just clean the sensor?
These sensors are magnetic and can become covered in fine metal shavings over time. You can try removing the sensor and cleaning the tip. If it temporarily solves the problem, it confirms the sensor was the issue, but replacement is still recommended for a long-term fix.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028187AD 56028187AC 56028187AB 4800879 4800878

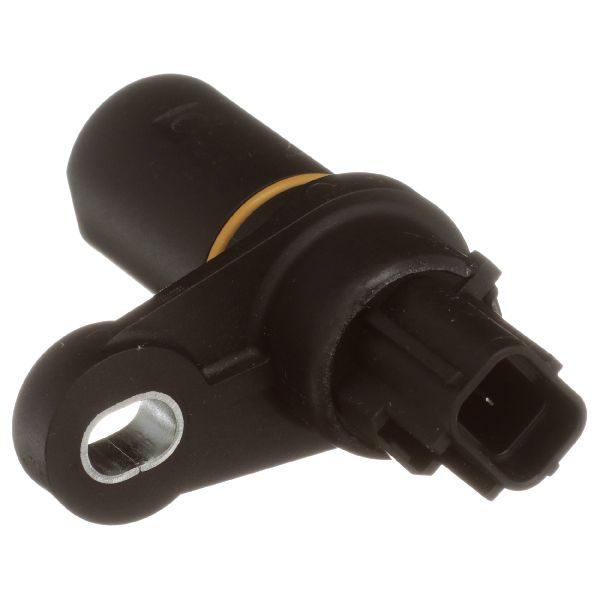

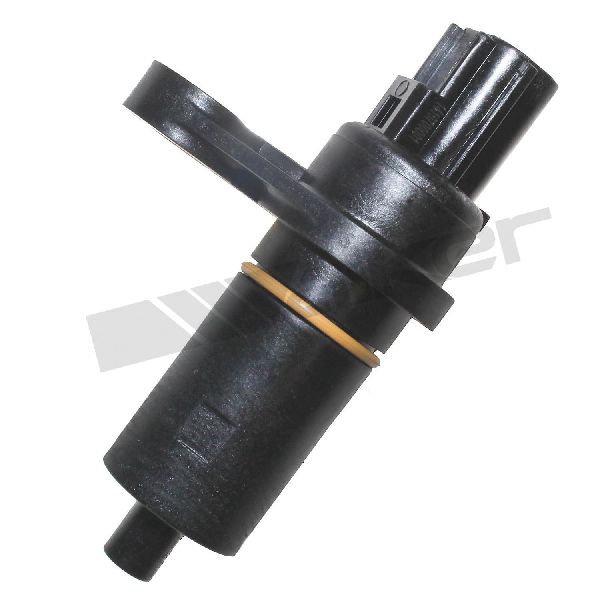

The primary 'Vehicle Speed Sensor' for the speedometer on 2002-2007 models is a 2-pin magnetic sensor located on the rear differential housing. The transmission uses separate input/output sensors located on the driver's side of the transmission case.
