Toyota RAV4 Ignition Lock Cylinder Guide: 2002-2012
Is your RAV4 key stuck, hard to turn, or not working? This guide explains the problem and how to fix it.
- The most common failure is the key getting stuck or being hard to turn due to worn internal parts.
- This is a common wear item; aftermarket brands like Dorman and Standard Ignition offer cost-effective replacements.
- Your RAV4 uses a transponder key; the new keys with the cylinder must be programmed or the chip from an old key must be swapped over.
- If your key won't turn, try wiggling the steering wheel first before assuming the cylinder has failed.
Is Your RAV4 Key Giving You Trouble?
If you own a 2002-2012 Toyota RAV4, you might eventually face a common problem: the key becomes difficult to use in the ignition. This is usually not a sign of a major engine problem, but rather a failure of the ignition lock cylinder. 🎬 Watch a 2002 RAV4 key cylinder replacement walkthrough. Over years of use, the small metal pins (called tumblers) inside the cylinder wear down from the key rotating against them. Eventually, they wear out so much that they no longer line up correctly with your key, causing it to stick or not turn at all.
Common Symptoms of a Failing Ignition Lock Cylinder
- Key is hard to insert or remove: You feel resistance or have to jiggle the key to get it in or out.
- Key won't turn: The key goes in but you can't turn it to the 'ON' or 'START' position. Before assuming the cylinder is bad, try wiggling the steering wheel back and forth, as the steering lock can sometimes bind the ignition.
- Key gets stuck in 'ACC' position: You can start the car, but you can't turn the key all the way back to 'LOCK' to remove it. This can drain your battery overnight.
- Car won't start: The key turns, but nothing happens. While this can be many things, a failed lock cylinder can prevent the ignition switch from getting the signal to start the car.
Don't Force It!
If your key is stuck, avoid using excessive force or pliers. This can break the key off inside the cylinder, turning a straightforward repair into a much more complicated and expensive one.
Choosing the Right Aftermarket Part

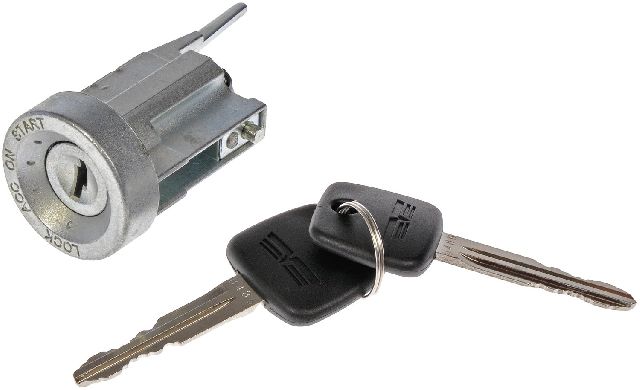

For the 2002-2012 RAV4, you don't need to pay high dealer prices for a new ignition lock cylinder. Aftermarket options offer a good balance of quality and cost. Your main choices are typically between brands like Dorman and Standard Ignition (also known as Standard Motor Products).
- Standard Ignition (SMP): Often considered a premium aftermarket brand. They use high-quality materials like brass tumblers and die-cast zinc cores, aiming to meet or exceed the original factory specifications. Mechanics often trust this brand for its reliability.
- Dorman: A well-known brand that produces a huge range of replacement parts. Their goal is to provide a direct-fit replacement that works like the original, often at a lower price point. For a common part like this, Dorman is a very popular and budget-friendly choice.
Both brands will provide a reliable replacement for a worn-out original cylinder. The choice often comes down to budget and availability.
A Critical Detail: The Transponder Key
Your 2002-2012 RAV4 has an engine immobilizer system, which means your key has a small security chip inside it called a transponder. An aftermarket lock cylinder will come with new keys. These new keys must be programmed to your RAV4's computer, or the engine will not start, even if the key turns. You can have a locksmith or a shop with the right tools do this. 🎬 See how to program your new transponder chip key. DIY Tip: You can sometimes avoid programming by carefully removing the tiny chip from your original key and transferring it to the new key. This can be delicate work, so be careful not to damage the chip.
Cost to Replace a Toyota RAV4 Ignition Lock Cylinder
Here are typical cost estimates for the US market. Prices can vary based on your location and the specific product chosen.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $102 - $258 |
| New OEM Part | $208 - $226 |
| Shop Labor | $80 - $120 |
| Total Professional Replacement | $287 - $342 (using aftermarket part) |
Frequently Asked Questions
Can I just lubricate my sticky ignition lock?
You can try, but it's usually a temporary fix. If the problem is caused by worn-out metal tumblers, lubricant won't restore them. Using a dry graphite lubricant is better than a wet lubricant like WD-40, which can attract more dirt and gum up the lock over time.
Is there a recall on the 2002-2012 RAV4 ignition lock cylinder?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any safety recalls or Technical Service Bulletins (TSBs) specifically for the ignition lock cylinder on the 2002-2012 Toyota RAV4.
Can I replace the ignition lock cylinder myself?
Yes, if you have basic tools and some patience. The job involves removing the plastic covers around the steering column, turning the old key to the 'ACC' position, pressing a small release pin, and sliding the cylinder out. 🎬 Watch this video for the easy way to swap cylinders. However, if your key is completely stuck and won't turn to 'ACC', the job becomes much harder and may require drilling, which is best left to a professional.
Will I need new keys for my doors?
Yes. When you replace the ignition lock cylinder, it will come with a new set of keys that will not match your original door locks. You will have to carry two keys: one for the ignition and your old one for the doors and trunk.
Helpful Videos
Technical Specifications
OEM Part Numbers: 69057-42200 69057-42220 69057-52870 69057-52840 69057-0T020
Vehicle requires a transponder key for engine start. Aftermarket cylinders come with new keys that require programming.
