Volkswagen Jetta Engine Valve Stem Oil Seal Set: 2002-2012 Replacement Guide
Seeing a puff of blue smoke when you start your Jetta? Your valve stem seals might be the culprit.
- The primary symptom of failing valve stem seals is a puff of blue smoke from the exhaust on startup.
- This is a very difficult repair; for most owners, it is not a DIY job and should be done by a professional.
- Due to the high labor cost, use high-quality OEM-supplier brands like Elring or Victor Reinz.
- For 2.0T engines, be aware that severe oil consumption is often caused by piston rings, a more serious issue.
Is Your Jetta Burning Oil? Understanding Valve Stem Seal Failure
If you own a 2002-2012 VW Jetta, you might be familiar with adding oil between changes. While some oil consumption can be normal, failing valve stem seals are a common cause of increased oil use. The most classic sign is a distinct puff of blue or grayish smoke from the exhaust pipe right after you start the engine, especially after it has been sitting for a while. This happens because oil seeps past the worn seals while the car is off, pools in the cylinder, and is burned away on startup. 🎬 Watch: See what worn valve seals look like on a Jetta You might also notice a consistent drop in your oil level without any visible leaks on the ground.
A Note on 2.0T Engines and Oil Consumption
For Jetta models equipped with the 2.0T (EA888) engine, typically from 2008.5 onwards, be aware that excessive oil consumption is often caused by faulty piston rings, not just valve stem seals. This was a widespread issue that led to a class-action lawsuit. While replacing valve stem seals might help slightly, it may not solve a major oil consumption problem on these specific engines. Volkswagen considers oil consumption of up to 0.5 quarts per 600 miles to be within their standard, according to their technical bulletins.
Choosing the Right Aftermarket Valve Stem Seals
Replacing valve stem seals is a labor-intensive job, so you don't want to do it twice. The quality of the parts you choose is extremely important. Here’s a breakdown of the available brands:

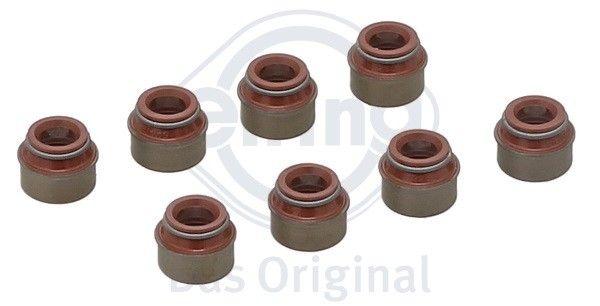

- Tier 1: OEM Quality (Elring, Reinz): Both Elring and Victor Reinz are well-regarded German brands that are often the original equipment (OEM) suppliers for Volkswagen. This means their aftermarket parts are made to the same standards as the ones your car came with from the factory. For a critical and difficult job like this, choosing one of these brands is highly recommended for reliability and longevity.
- Tier 2: Budget-Friendly (Apex): Apex is generally known as a more budget-focused brand. While the price might be tempting, there is very little specific information available regarding the quality and durability of their valve stem seals for Volkswagen engines. Given the high labor cost of this repair, saving a few dollars on the seals themselves is a significant risk.
Pro Tip: Match the Seals to Your Engine
The 2002-2012 Jetta was available with many different engines (2.0L 8-valve, 1.8T 20-valve, 2.5L 10-valve, 2.0T 16-valve, etc.). The number of seals you need, and the specific part itself, will change depending on your engine. Always verify the fitment for your exact year and engine code before ordering. For example, a 1.8T engine needs 20 seals, while a 2.0L base engine only needs 8.
Cost to Replace Volkswagen Jetta Valve Stem Seals
The cost is dominated by labor due to the complexity of the job. A professional mechanic may need to remove the camshafts and use special tools to perform the replacement with the cylinder head on the car. Some shops may even require removing the cylinder head entirely, 🎬 See how to replace seals without removing the cylinder head which significantly increases labor time and requires additional parts like a head gasket and head bolts.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Seal Set | $10 - $71 |
| Shop Labor | $800 - $1,800+ |
| Total Estimated Cost | $810 - $1,871+ |
(Cost estimates are for parts and labor and can vary based on local labor rates and the specific engine in your Jetta.)
Frequently Asked Questions
Can I drive with bad valve stem seals?
You can, but it's not recommended for long. Continuing to drive will lead to consistently low oil levels, which can cause severe engine damage. It also causes increased emissions and can eventually damage your catalytic converter and oxygen sensors, leading to more expensive repairs.
Will replacing valve stem seals stop my Jetta from smoking?
If the smoke is a puff of blue smoke only on startup, then yes, new valve stem seals will likely fix the problem. If your car smokes continuously while driving, you may have a more serious issue like worn piston rings or a failing turbocharger.
Is this a DIY job?
This is an advanced DIY repair. It requires specialized tools like a valve spring compressor, precision, and a significant amount of engine disassembly. Mistakes can lead to dropped valves, which would require removing the cylinder head. For most owners, this job is best left to a professional mechanic 🎬 Watch: A complete DIY walkthrough for 1.8T valve seal replacement experienced with Volkswagen engines.
Do I need to replace anything else at the same time?
Since the job requires removing the valve cover and camshafts, it is an excellent time to replace the valve cover gasket and camshaft chain tensioner gasket (if applicable). If your timing belt or chain is due for service, this is also the perfect opportunity to do it, as much of the labor overlaps.
Helpful Videos
Technical Specifications
OEM Part Numbers: 036-109-675-A
Seal material is typically Viton or Polyacrylic to withstand high temperatures. The number of seals required varies by engine: 8 (2.0L SOHC), 10 (2.5L), 16 (2.0T DOHC), or 20 (1.8T).
