Guide to the 2002-2013 Cadillac Escalade EXT A/C Clutch Cycle Switch
If your Escalade's A/C is blowing warm, this small, easy-to-replace switch is a common and inexpensive culprit.
- A faulty A/C clutch cycle switch is a very common cause for the A/C blowing warm air in 2002-2013 Escalade EXTs.
- Replacement is a simple, 15-minute DIY job that does not require evacuating the A/C system.
- Before replacing the switch, confirm the system has a proper refrigerant charge, as low refrigerant can cause similar symptoms.
- ACDelco is the OEM brand, while Four Seasons and Global Parts are reliable and cost-effective aftermarket alternatives for this specific part.
Is Your Escalade's A/C Acting Up?
When the air conditioning in your 2002-2013 Cadillac Escalade EXT stops blowing cold, it's easy to think the worst, like a failed compressor. However, a much simpler and cheaper part is often the real problem: the A/C clutch cycle switch. This sensor is a common failure point that can cause several frustrating symptoms. Understanding these signs can help you diagnose the problem correctly and avoid unnecessary, expensive repairs.
Symptoms of a Failing A/C Clutch Cycle Switch
A bad A/C clutch cycle switch can show itself in several ways. Pay attention to these common signs in your Escalade EXT:
- A/C Blows Warm Air: This is the most obvious symptom. If the switch fails completely, it won't send the signal for the compressor to turn on. As a result, the refrigerant doesn't circulate, and you get no cold air.
- Intermittent Cooling: The A/C might blow cold for a while, then switch to warm, and back again. This happens when the switch is failing and sending incorrect signals to the compressor, causing it to cycle on and off when it shouldn't. 🎬 Watch this diagnosis of an A/C system that randomly stops working.
- Compressor Clutch Doesn't Engage: You can often hear a distinct "click" when the A/C compressor engages. If you turn on the A/C and hear nothing, and the center part of the compressor pulley isn't spinning, 🎬 See how to diagnose a compressor that won't engage. the cycle switch may not be telling it to turn on.
- Rapid Clicking Noises: A faulty switch can cause the compressor clutch to engage and disengage rapidly, creating a series of clicking sounds from the engine bay.
Check Other Issues First
While the cycle switch is a common problem, these symptoms can also be caused by low refrigerant levels, a bad relay, or other electrical issues. It's always a good idea to have the refrigerant charge checked before replacing parts.
Choosing the Right Aftermarket Switch
For a simple electronic part like a pressure switch, you have good options between OEM and aftermarket. The key is balancing cost and quality.
- ACDelco: As the original equipment (OE) supplier for General Motors, ACDelco parts are engineered to the exact factory specifications for your Escalade. Choosing ACDelco is the safest bet for a perfect fit and long-term reliability, though it often comes at a higher price.

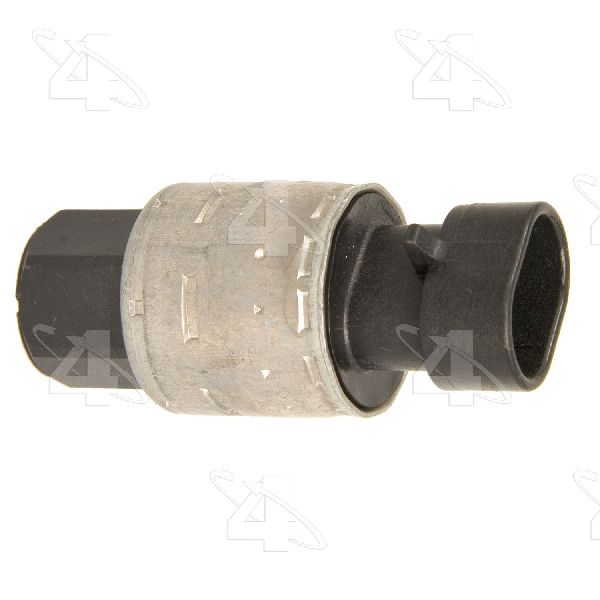

- Four Seasons: Four Seasons is a major, well-regarded aftermarket brand for A/C components. They manufacture parts to meet or exceed OE specifications and offer a good balance of quality and affordability. They are a popular choice for both DIYers and professional shops.
- Global Parts (GPD): Global Parts Distributors is another aftermarket option, often focused on providing a strong value. While some users have reported issues with more complex components like compressors, a simple switch is generally a safe purchase from this brand.
OEM vs. Aftermarket for this Part
For a non-critical, easy-to-replace sensor like the A/C clutch cycle switch, a quality aftermarket brand like Four Seasons or Global Parts offers excellent value. If you prefer the peace of mind of using the exact original part, ACDelco is the way to go. For this specific part, the performance difference is likely negligible.
Estimated Replacement Costs
Replacing the A/C clutch cycle switch is one of the more affordable A/C repairs you can encounter.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (ACDelco) Switch | $45 - $75 |
| New Aftermarket Switch | $24 - $65 |
| Shop Labor | $50 - $120 |
| Total Professional Installation | $74 - $185 |
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch located on my Escalade EXT?
The switch is located in the engine bay. It is typically screwed onto the A/C accumulator, which is a metal canister near the firewall on the passenger side of the engine compartment.
Do I need to drain the refrigerant to replace the switch?
No. On these GM trucks, the switch is mounted on a Schrader valve, which is similar to the valve on your tires. This allows you to unscrew the old switch and install the new one without losing the system's refrigerant. A small, brief hiss of gas may escape, which is normal.
Is this a difficult repair for a DIYer?
No, this is one of the easiest A/C repairs you can perform. It requires only a basic wrench and takes less than 30 minutes. The switch simply unplugs and unscrews.
🎬 Watch this quick walkthrough on replacing the pressure switch.Could my problem be a blend door actuator instead?
Yes, that's another common issue on these trucks. If your A/C is cold on one side but warm on the other, or if it's cold in the rear vents but warm in the front, the problem is more likely a blend door actuator, not the cycle switch.
Are there any recalls for this part?
No recalls were found specifically for the A/C clutch cycle switch on the 2002-2013 Cadillac Escalade EXT. Searches of NHTSA data show recalls for this vehicle primarily related to airbags.
Helpful Videos
Technical Specifications

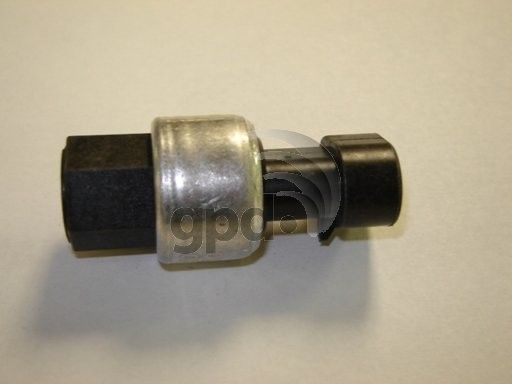

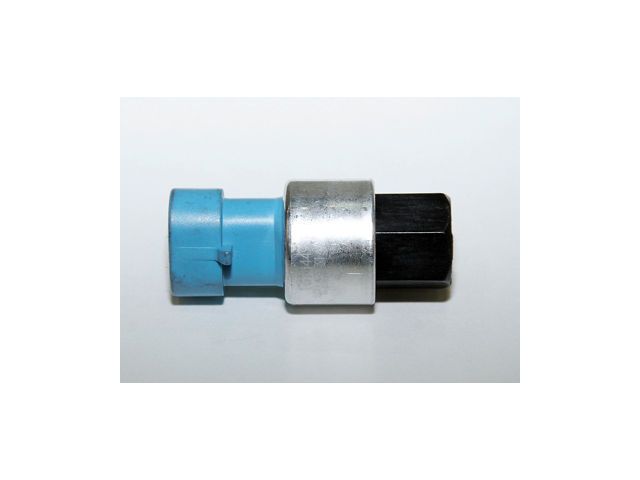

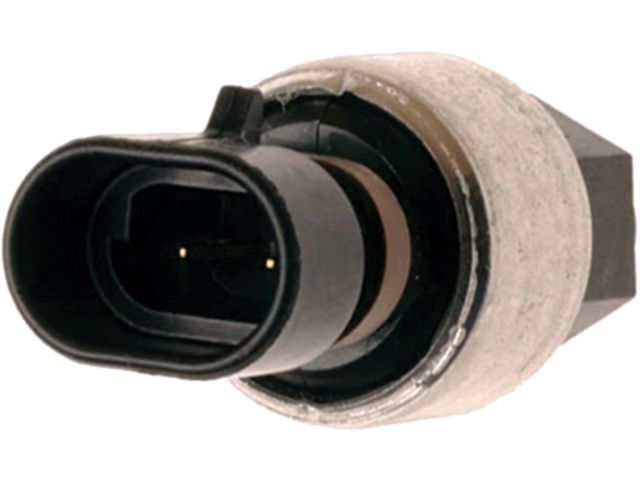

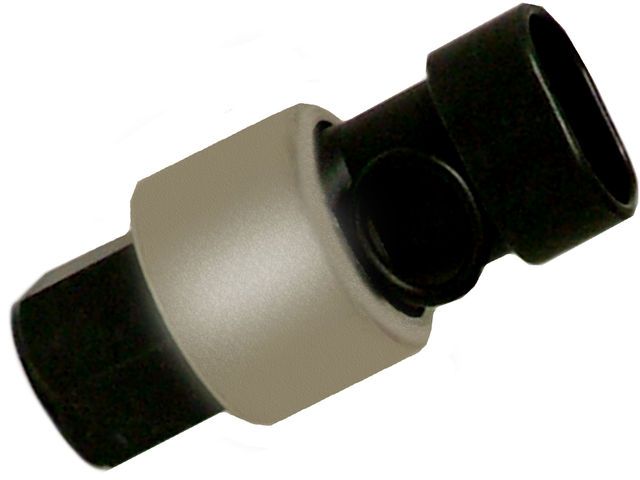

OEM Part Numbers: 15-50156 15-5715 19331491
Low-Pressure Cut-Out Switch, typically with a 2-pin or 3-pin connector. Mounts to a Schrader valve on the A/C accumulator.
