A Complete Guide to the 2002-2013 Cadillac Escalade EXT A/C Condenser
If your Escalade EXT's A/C is blowing warm, the condenser is one of the most likely culprits. Here’s what you need to know before you buy a replacement.
- The most common failure is a leak due to road debris damage or corrosion.
- You MUST replace the receiver-drier/accumulator and orifice tube anytime the condenser is replaced.
- While you can swap the part yourself, a professional with proper equipment must legally handle the refrigerant evacuation and recharge.
- High-quality aftermarket brands like Denso and Spectra offer reliable, cost-effective alternatives to the OEM part.
Is Your Escalade EXT's A/C Losing Its Cool?
A failing A/C condenser is a common problem on the 2002-2013 Cadillac Escalade EXT. The most frequent cause of failure is a leak. Because the condenser sits at the very front of the vehicle, it is vulnerable to being hit by rocks and road debris, which can puncture the thin aluminum tubes. Over time, corrosion can also cause small pinhole leaks to develop. When refrigerant leaks out, the A/C system can no longer create cold air.
Common Symptoms of a Bad A/C Condenser

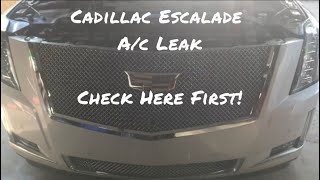

- Warm Air from Vents: This is the most obvious sign. 🎬 Watch: A quick guide on what to check first when your A/C blows warm. The system may blow slightly cool at first but will get warmer as refrigerant escapes.
- A/C Works While Driving, But Not When Stopped: If the A/C gets warm in traffic but cools down on the highway, it can point to a condenser that isn't cooling efficiently. Airflow from driving helps it work, but a faulty cooling fan or blocked fins can cause issues at low speeds.
- Visible Leaks or Oily Residue: You may be able to see a wet, oily patch on the condenser by looking through the front grille. The A/C system's oil circulates with the refrigerant, so an oily spot indicates a leak. Technicians often add a UV dye to the system, which will glow under a black light to pinpoint the exact leak location.
- Compressor Won't Turn On: Your A/C system has pressure sensors that prevent the compressor from running if the refrigerant level is too low. This is a safety feature to prevent the compressor from destroying itself.
Check for "Black Death"
If your A/C compressor failed internally, it can send metal shavings (a contamination known as "black death") throughout the entire system. These particles will clog and destroy a brand-new condenser instantly. If your old compressor has failed, you MUST replace the condenser, accumulator/receiver-drier, and orifice tube, and have a professional flush the entire system.
Choosing the Right Aftermarket Condenser
You don't need to go to the dealer for a quality replacement. The aftermarket offers several good options that provide excellent value. Here’s a breakdown of the brands available.
Brand Quality Tiers
- Tier 1: OEM-Equivalent (ACDelco, Denso): ACDelco is GM's official parts brand, ensuring a direct fit and factory-level performance. Denso is a top-tier OEM supplier for many automakers and is highly respected for its quality, precision, and durability, often meeting or exceeding factory specs. You can't go wrong with either of these brands.
- Tier 2: Quality Aftermarket (Spectra, CSF Radiator): Brands like Spectra Premium and CSF are well-regarded in the cooling industry. They offer a great balance of quality, fit, and price, making them a popular choice for shop and DIY repairs.
- Tier 3: Economy (APDI, Global Parts, Pro Parts): These brands are typically the most budget-friendly. However, forum discussions show mixed reviews, with some users reporting issues with fit and long-term durability. They can be a viable option for a budget repair, but careful inspection upon arrival is recommended.
Generation and Option Differences

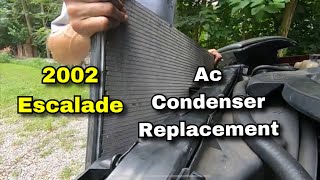

The 2002-2013 Escalade EXT covers two vehicle generations (2002-2006 and 2007-2013). 🎬 See this step-by-step condenser replacement walkthrough for 2002-2006 models. The condenser design may differ between these generations. Always verify the part fits your specific model year before ordering.
🎬 Watch: How to replace the condenser on 2007 and newer GM trucks.Estimated Replacement Costs
The total cost depends on the part you choose and local shop rates. Remember, this job requires specialized equipment to handle the refrigerant.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Condenser | $97 - $177 |
| New OEM A/C Condenser | $250 - $400+ |
| Shop Labor (incl. Evacuate & Recharge) | $250 - $540 |
| Total Estimated Cost | $350 - $720+ |
Frequently Asked Questions (FAQ)
Can I replace the A/C condenser myself?
While an experienced DIY mechanic can physically swap the condenser, the A/C system must be legally and safely evacuated and recharged by a certified professional using specialized equipment. You can replace the part yourself to save on labor, but you will need to take it to a shop for the final evacuation and recharge service.
Do I need to replace any other parts at the same time?
Yes, this is critical. Any time the A/C system is opened, you MUST replace the A/C receiver-drier (also called an accumulator) and the orifice tube. The receiver-drier contains a desiccant material that absorbs moisture. Once exposed to air, it is ruined. Failing to replace these components will cause your new condenser or compressor to fail prematurely and will void the part's warranty.
Was there a recall on the Escalade EXT A/C condenser?
No, there were no specific recalls for the A/C condenser on the 2002-2013 Cadillac Escalade EXT. A well-known GM Special Coverage program for leaking condensers only applied to much newer 2015-2017 models and does not cover this generation.
What kind of refrigerant does my 2002-2013 Escalade EXT use?
All 2002-2013 Escalade EXT models use R-134a refrigerant. You should always verify the specific refrigerant type and capacity on the sticker under your hood.
Helpful Videos
Technical Specifications
Vehicle uses R-134a refrigerant. Condenser design may vary between the 2002-2006 (GMT800) and 2007-2013 (GMT900) generations. Some aftermarket condensers come as an assembly with the receiver/drier already attached.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
