Cadillac Escalade EXT HVAC Blend Door Actuator Guide (2002-2013)
Fix the constant clicking from your dash and get your heat and A/C working properly again.
- A repetitive clicking from the dash is the number one sign of a failed blend door actuator.
- Your Escalade has multiple actuators; you must identify the correct failed part before ordering, usually by locating the source of the noise.
- Replacement difficulty varies greatly by location; some are easy DIY jobs, while others may require professional help due to dashboard disassembly.
- After replacement, you MUST perform an HVAC system recalibration for the new part to function correctly.
Is Your Escalade EXT's Climate Control Acting Up?
A very common problem on the 2002-2013 Cadillac Escalade EXT is a failed HVAC blend door actuator. The plastic gears inside these small motors wear out and break over time. This leads to symptoms that are hard to ignore and affect your comfort inside the cabin.
Top Symptoms of a Failing Actuator
When an actuator fails, the internal gears often strip. The motor will keep trying to turn the door, causing distinct symptoms.
- Clicking or Tapping Noises: The most common sign is a repetitive clicking or tapping sound coming from behind the dashboard. 🎬 Watch this 2002-2006 actuator replacement walkthrough for older models. This noise is most obvious when you start the truck or change the temperature settings. It's the sound of broken plastic gears trying to engage.
- Incorrect Temperature: You may get hot air on the driver's side and cold air on the passenger's side, or vice-versa. The air temperature might not change at all when you adjust the controls.
- Wrong Airflow Direction: If air is stuck blowing from the defrost vents and won't switch to the dash or floor, a mode door actuator has likely failed.
- Inconsistent Temperatures: The air coming from the vents may fluctuate between hot and cold even when you haven't touched the controls.
Your Escalade Has Multiple Actuators
Your truck has several actuators for the front dual-zone climate system and potentially a rear system. There are different actuators for the driver-side temperature, passenger-side temperature, defrost, and floor/vent mode. Before buying any parts, you must identify which specific actuator has failed. 🎬 See this video to locate every actuator in your dashboard. The best way is to listen carefully and pinpoint where the clicking noise is coming from in the dashboard. A professional scan tool can also read codes from the HVAC control module to identify the exact faulty part.
Choosing the Right Aftermarket Actuator
For a vehicle of this age, using an aftermarket actuator is a smart and cost-effective choice. OEM parts are available from the dealer but are significantly more expensive. Since this is a common failure, the aftermarket offers a wide range of options.

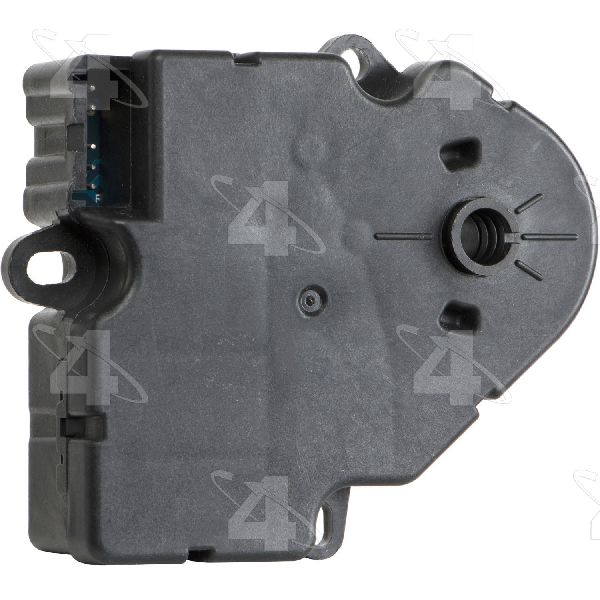

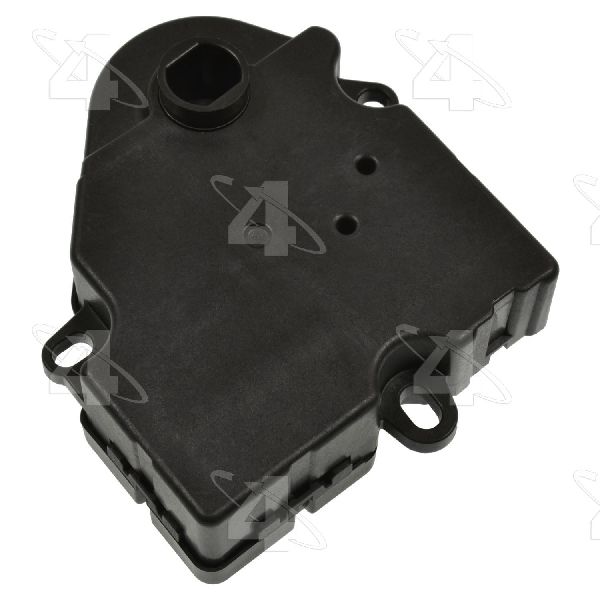

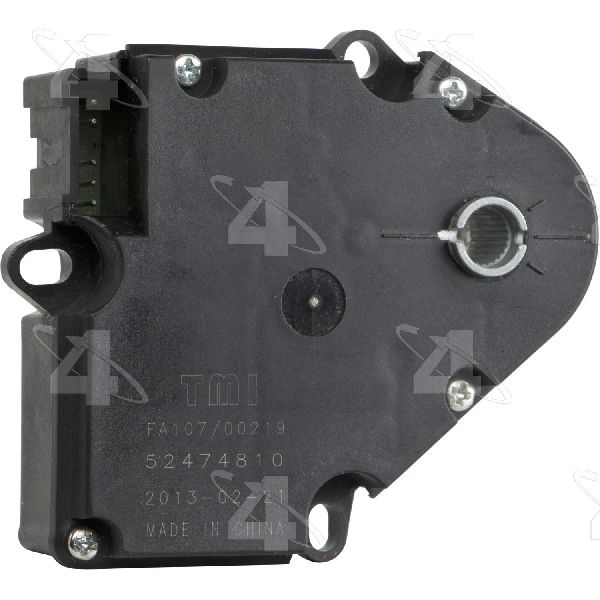

- Premium Aftermarket (e.g., Dorman, Four Seasons): Brands like Dorman and Four Seasons are well-known and widely available. Dorman is a huge player in the aftermarket and sometimes offers redesigned parts to improve on the original factory flaws. Four Seasons is a respected name in HVAC components, with some users noting good build quality. These brands offer a good balance of quality and price.

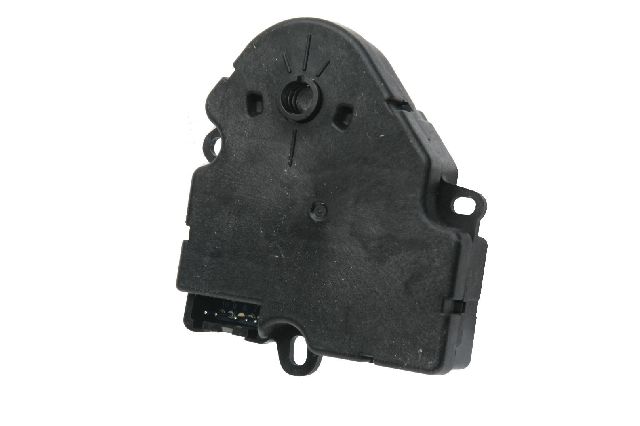

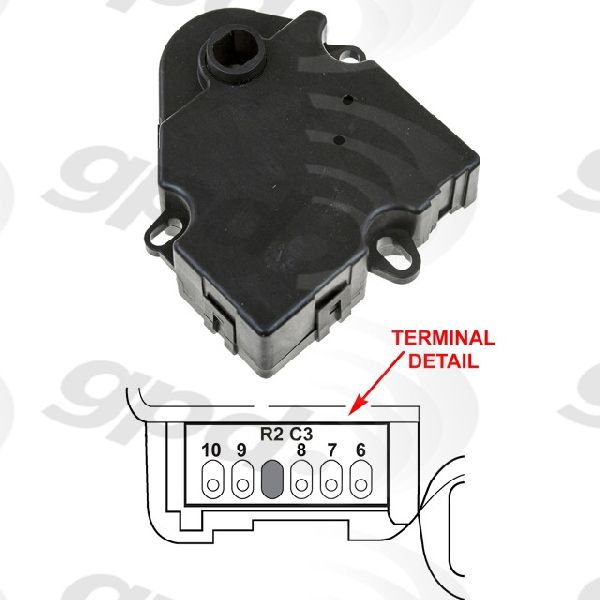

- Standard Aftermarket (e.g., URO Parts, Skyward, Global Parts, Vemo): These brands provide a functional replacement at a lower cost. For an older vehicle, or for an actuator that is easy to access, these can be a very economical choice. The primary difference is often in the quality of internal components and warranty coverage.
Given the difficulty of replacing some actuators, choosing a premium brand may provide more peace of mind against a repeat failure. For easier-to-reach actuators (like the one behind the glovebox), a standard brand can save you money.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $32.45 - $110.95 |
| New OEM (Dealer) Actuator | $240 - $360 |
| Shop Labor | $75 - $750+ |
| Total Professional Repair (Aftermarket Part) | $110 - $860+ |
Note: Labor costs vary dramatically depending on which actuator needs replacement. Some take less than an hour, while others can require removing the entire dashboard.
Installation & Recalibration
Replacing the actuator itself is straightforward: unplug the electrical connector and remove a few small screws (typically 5.5mm or 7mm). The challenge is getting to it. The passenger-side temperature actuator is usually the easiest, located behind the glove box. The driver-side actuators are often much harder to reach.
CRITICAL STEP: Recalibrate the HVAC System
You MUST recalibrate the system after installing a new actuator. Do not skip this, or the new part will not work correctly. The system needs to learn the stopping points of the new motor.
- Install the new actuator fully.
- Disconnect the negative battery terminal for at least one minute.
- Reconnect the battery terminal.
- Turn the ignition to the 'ON' position (do not start the engine).
- DO NOT TOUCH any HVAC controls for 2-3 minutes. You may hear the doors cycling as the system calibrates itself.
- Turn the ignition off, wait 30 seconds, then start the truck and test the climate controls.
An alternative to disconnecting the battery is to remove the HVAC/ECAS fuse for 10-30 seconds and then reinstall it before starting the calibration process.
Frequently Asked Questions
Is there a recall for the blend door actuator on the Escalade EXT?
No, there are no recalls for this specific part. The failure is considered normal wear and tear. There was a Technical Service Bulletin (TSB #06024B) for 2007 models for an HVAC software issue in cold weather, but this is unrelated to the mechanical failure of the actuator.
Can I replace just one actuator?
Yes. You only need to replace the actuator that has failed. However, because they are all the same age, it's not uncommon for another one to fail soon after. If you are paying for labor to have a difficult-to-reach actuator replaced, some mechanics may suggest replacing adjacent ones at the same time.
What's the difference between a blend door and a mode door actuator?
They are physically very similar or identical parts, but they perform different jobs. A 'blend door' actuator controls temperature by mixing hot and cold air. A 'mode door' actuator controls airflow direction, switching between the defrost, dash, and floor vents. The symptoms will tell you which one has failed.
Why did the new actuator not fix the problem?
The most common reason is failure to perform the HVAC recalibration procedure after installation. The system doesn't know the new part is there until it's been calibrated. Another possibility is that you replaced the wrong actuator, or there is a problem with the HVAC control module itself, though this is less common.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89018365 52495874 604-106
Common tools required: 5.5mm and 7mm sockets, socket extensions, universal joint/wobble extension.
