A Guide to the ABS Wheel Speed Sensor for the 2002-2013 Jeep Liberty
Understanding and replacing the ABS wheel speed sensor on your Jeep Liberty is easier than you think.
- A lit ABS warning light is the most common sign of failure; your regular brakes will still work, but with no anti-lock safety feature.
- Aftermarket sensors from brands like Delphi, Dorman, and Standard are reliable, cost-effective alternatives to expensive OEM parts.
- Wiring damage is a frequent cause of ABS faults on the Liberty; always inspect the wires for breaks or corrosion before replacing the sensor.
- Sensors can seize in their housings due to rust, potentially complicating the replacement.
Is a Bad ABS Sensor Dangerous on a Jeep Liberty?
When an ABS wheel speed sensor fails on your 2002-2013 Jeep Liberty, your dashboard will likely light up with ABS, and possibly ESP or traction control warnings. While your standard brakes will still function, the anti-lock feature will be disabled. This means your wheels can lock up and skid during hard braking, especially on wet or icy roads, increasing stopping distances and reducing your ability to steer during an emergency stop. It's a safety system you'll want to get working again quickly.
Known Issue: Broken Wires and Corrosion
A very common issue on the Jeep Liberty isn't always the sensor itself, but the wiring leading to it. Wires can become brittle, break internally, or get damaged by road debris, especially for the rear sensors. Before replacing a sensor, it's wise to inspect the wiring harness for any visible damage, as sometimes a simple wire repair is all that's needed. In regions with road salt, sensors can also corrode and become seized in the steering knuckle or differential housing, making removal difficult.
Choosing the Right Aftermarket ABS Sensor
For a part like an ABS sensor, aftermarket options provide excellent value. The technology is straightforward, and many reputable brands produce reliable replacements. You don't necessarily need to pay the premium for a Mopar-branded part unless you prefer to stick with original equipment.
When shopping, you'll find brands like Dorman, Delphi, Standard Ignition (SMP), and Crown Automotive. Dorman and Standard are well-known aftermarket suppliers with a reputation for quality that is often comparable to OEM for this type of part. Delphi is a major OEM supplier for many car manufacturers and is considered a top-tier choice. Crown Automotive and Omix-Ada specialize in Jeep parts and are generally considered good quality, with some owners preferring Crown. Brands like Holstein, NGK, and Walker Products also offer reliable options. Ultimately, any of the available aftermarket brands will restore the function of your ABS system.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $15 - $58 |
| New OEM (Mopar) Sensor | $70 - $150 |
| Shop Labor for Replacement | $100 - $180 per sensor |
Pro Tip: Check Your Connections
Sometimes the ABS light is triggered by a poor connection, not a failed sensor. Before buying a new part, locate the sensor's electrical connector, unplug it, check for any corrosion on the pins, and plug it back in securely. Sometimes, this is enough to fix the problem.
Frequently Asked Questions (FAQ)
🎬 See this step-by-step replacement walkthrough for 2005-2007 models." loading="lazy" style="max-width:100%;height:auto;border-radius:6px;display:block;box-shadow:0 2px 8px rgba(0,0,0,0.1);" />Where is the ABS sensor located on my Jeep Liberty?
Your Jeep Liberty has a sensor at each wheel. The front sensors are mounted on the steering knuckle, behind the brake rotor. The rear sensors are typically located on top of the rear differential (for 2002-2007 models) or on the backing plate behind the rotor on each side (for 2008-2013 models).
🎬 Watch: How to replace the rear ABS sensor on 2008-2012 Jeeps.Can I replace just one bad ABS sensor?
Yes. You only need to replace the sensor that has failed. A proper diagnostic scan tool can read the ABS codes and tell you exactly which wheel sensor is causing the problem 🎬 Watch: How to test your wheel speed sensors and use a manual. (e.g., 'Left Front Wheel Speed Sensor Circuit').
Do I need to reset the computer after replacing the sensor?
Usually, no. After you replace the faulty sensor, the ABS warning light on your dashboard should turn off by itself after driving a short distance. If it stays on, the fault may lie elsewhere, or the codes may need to be cleared with a scan tool.
What if the old sensor is stuck and won't come out?
This is a common problem, especially in areas with rust. The plastic sensor can seize in its metal housing. Technicians often have to carefully drill or break out the old sensor piece by piece, being careful not to damage the housing or the tone ring inside. Applying penetrating oil beforehand can sometimes help.
Helpful Videos
Technical Specifications

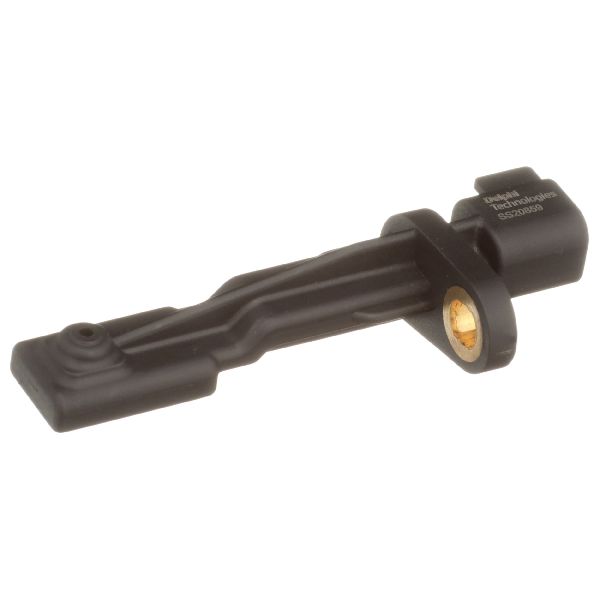

OEM Part Numbers: 56041393AA 52128694AD 56044144AB 56044146AB
The Jeep Liberty uses magnetic-type sensors that read a toothed tone ring. Front and rear sensors are different, and the rear sensor design changed between the KJ (2002-2007) and KK (2008-2013) generations. Always verify the correct part for your specific year and wheel location.
