Ford E-550 Super Duty Power Steering Pump Guide (2003)
Everything you need to know before replacing the power steering pump on your 2003 Ford E-550 Super Duty.
- A failing pump on an E-550 is a critical safety issue because it affects both steering and the Hydro-Boost brakes.
- Always flush the entire system and replace the reservoir with the pump to prevent contamination from destroying the new part.
- You must use the correct fluid, likely MERCON V ATF, not generic power steering fluid. Check your owner's manual.
- A special pulley puller/installer tool is required for the replacement.
Is Your Power Steering Pump Failing?
A bad power steering pump on an E-550 gives clear warning signs. Because this pump also controls your power brakes, you should not ignore these symptoms. Look for these common problems:
- Whining or Groaning Noises: This is the most common sign. The noise gets louder when you turn the wheel or rev the engine. It's usually caused by low fluid, air in the system, or a worn-out pump.
- Stiff Steering: The steering wheel becomes very hard to turn, especially when parking or moving slowly.
- Hard Brake Pedal: If the brake pedal suddenly becomes much harder to press, it's a direct sign that the hydro-boost system is not getting enough pressure from the pump.
- Fluid Leaks: Look for puddles of reddish-brown fluid under the front of your truck. Leaks can come from the pump, hoses, or seals.
- Foamy or Burnt Fluid: Check the fluid in the reservoir. If it looks bubbly, air is getting into the system. If it's dark and smells burnt, it's contaminated and needs to be changed. Shiny metal flakes in the fluid are a critical sign the pump is grinding itself apart internally.
Safety Warning: Brake System Impact
A failing power steering pump on a Super Duty with hydro-boost is a major safety risk. A sudden loss of pump pressure can lead to an immediate loss of both power steering and power brake assist. This makes the vehicle extremely difficult to control and stop. It is not safe to drive with severe symptoms.
Choosing the Right Aftermarket Pump
When replacing the pump on your E-550, you have a choice between OEM (Motorcraft) and various aftermarket brands. For a part this critical, quality matters more than price.
- OEM (Motorcraft): This is the part your truck was built with. It's the most expensive option but generally offers the best reliability and fit. Many mechanics prefer OEM to avoid the job coming back with problems.

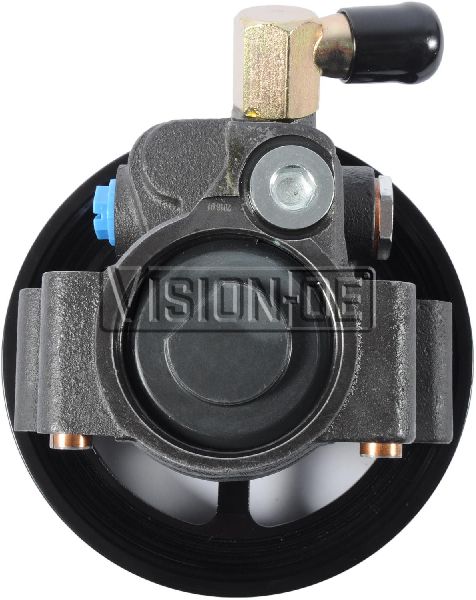

- New Aftermarket: Brands like BBB Industries and Mapco offer new pumps. These are a middle-ground option. While they should meet original specs, quality can vary. There is limited specific feedback on these brands for this exact truck, but new parts are generally a safer bet than remanufactured ones.
- Remanufactured Aftermarket (Cardone, BBB Industries): These are old pumps that have been rebuilt. They are the cheapest option, but their quality is very inconsistent. Forum discussions frequently mention remanufactured pumps from brands like Cardone failing quickly or being defective right out of the box. While you might get a good one, there is a significant risk of leaks, noise, or early failure.
Mechanic's Advice
For a heavy-duty work truck like the E-550, the power steering pump is not a part where you want to cut corners. The risk of a remanufactured pump failing and taking out your steering and brakes is too high. If you can't afford a new OEM Motorcraft pump, a new aftermarket pump is a much better choice than a remanufactured one.
Known Issues, Recalls, and Bulletins
Searches of the NHTSA database did not show any specific recalls for the power steering pump on the 2003 Ford E-550 Super Duty. However, other model years of Super Duty and E-Series vans have had recalls and customer satisfaction programs for related parts like leaking power steering hoses. This shows that the hydraulic steering system on these trucks can be a weak point, so it's important to inspect all hoses and connections when replacing the pump.
Estimated Replacement Costs
The cost to replace your power steering pump will vary based on the parts you choose and who does the work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $79.89 - $252.30 |
| Remanufactured Aftermarket Pump | $50 - $150 |
| New OEM (Motorcraft) Pump | $200 - $400+ |
| Shop Labor | $250 - $500 |
Frequently Asked Questions (FAQ)
Can I replace the E-550 power steering pump myself?
Yes, if you are an experienced DIY mechanic. The job requires special tools, including a power steering pulley puller/installer, which you may be able to rent. Access is tight, and you will likely need to remove the serpentine belt and alternator. Because the system powers the brakes, it must be done correctly.
Why is my new power steering pump whining?
The most common reason for a new pump to whine is air trapped in the system. The system must be properly bled by turning the steering wheel from lock to lock many times with the engine off, and then again with the engine on, while keeping the fluid level full. A noisy, defective pump is also a possibility, especially with remanufactured units.
What kind of fluid should I use?
Fluid type is critical. Most Ford trucks of this era do not use standard power steering fluid. They use Automatic Transmission Fluid (ATF), typically MERCON V. Using the wrong fluid can quickly damage the new pump and other parts of the system. Always check your owner's manual or the cap on the fluid reservoir to be 100% sure.
Do I have to replace the pulley and reservoir with the pump?
It is highly recommended. The old pulley can be very difficult to remove without damage, and a new one ensures a proper fit. The old reservoir can hold metal shavings and other gunk from the failed pump. If you don't replace it, those contaminants will flow right into your new pump and cause it to fail early.
Technical Specifications
OEM Part Numbers: 5C3Z-3A674-BRM 7C3Z-3A674-B 7C3Z-3A674-D STP-219
Hydraulic pump with integrated Hydro-Boost brake assist functionality. Requires specific pulley puller/installer tool for service. System fluid is typically MERCON V ATF.
