2003-2004 Isuzu Ascender Fuel Pressure and Your Engine
Hard starting or poor performance in your Ascender could point to a fuel system issue, but the fix may not be what you think.
- The fuel pressure regulator on a 2003-2004 Ascender is inside the fuel tank, as part of the fuel pump module.
- Do not buy the small, standalone regulators often listed for this truck; they are incorrect and will not fit.
- Symptoms of a bad regulator are identical to a failing fuel pump, including hard starts, stalling, and poor performance.
- Replacement requires removing the fuel tank and is a difficult job best left to a professional mechanic.
A Critical Misconception: Locating the Fuel Pressure Regulator
If you're looking for a small, standalone fuel injection pressure regulator on your 2003-2004 Isuzu Ascender's engine or fuel line, you won't find one. Many parts catalogs and online listings incorrectly show a rail-mounted regulator for this vehicle. However, for both the 4.2L I6 and 5.3L V8 engines in these model years, Isuzu used a 'returnless' fuel system. This means the actual fuel pressure regulator is a non-serviceable component of the complete fuel pump module, which is located inside your gas tank.

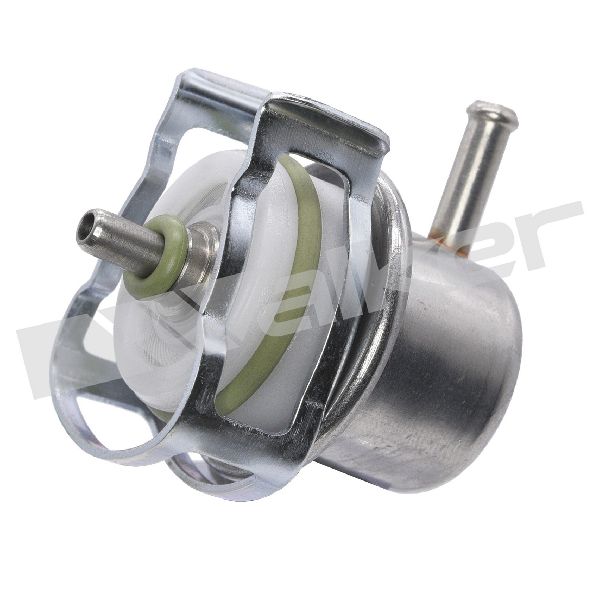

Common Ordering Mistake
The small, separately sold regulators you see online are often for older GM vehicles with a different fuel system design. Buying one of these parts for your 2003-2004 Ascender will lead to frustration, as there is no place to install it. The correct repair for a failed regulator is to replace the entire fuel pump module assembly.
Symptoms of a Failing Fuel Pump Module and Regulator
Since the regulator is part of the fuel pump assembly, its failure symptoms are the same as a weak or failing fuel pump. You should suspect a problem if you experience:
- Long Crank Times: The engine turns over for a long time before it starts. This happens because the system isn't holding pressure when the vehicle is off.
- Engine Stumbles or Misfires: Inconsistent fuel pressure can cause the engine to run rough, hesitate during acceleration, or misfire.
- Poor Performance and Fuel Economy: If the pressure is too low, the engine lacks power. If it's too high, it runs rich, burning more fuel than necessary.
- Stalling: The engine may stall, especially at idle, if fuel pressure drops suddenly.
- Loud Whining from the Fuel Tank: A failing fuel pump motor can often be heard as a loud hum or whine from the rear of the vehicle.
Choosing a New Aftermarket Fuel Pump Module
When replacing the fuel pump module, you have several brand choices. Since this is a labor-intensive job, choosing a quality part is important to avoid doing the work twice.
- Delphi: Delphi is a well-regarded OE (Original Equipment) manufacturer for many GM vehicles and is often considered a top-tier choice for fuel systems. Their modules are known for reliability and using quality materials.
- Standard Ignition (SMP): Standard Motor Products is a reputable aftermarket brand that often provides a good balance of quality and price. They are a common choice in professional repair shops.
- Walker Products: Walker is another established aftermarket brand offering fuel system components.
- True Tech: This brand typically falls into the budget-friendly category. While the initial cost is lower, long-term durability may be a consideration.
Pro Tip: Diagnose Before Replacing
Before dropping the fuel tank, a mechanic should perform a fuel pressure test. This involves connecting a gauge to the fuel rail's test port (Schrader valve) to measure the actual pressure while the engine is running and to see if it holds pressure when turned off. This test confirms whether the fuel pump module is the source of the problem.
🎬 Watch how to test for a bad fuel pressure regulator.Cost of Replacing the Fuel Pump Module
Replacing the in-tank fuel pump module is a significant repair because the fuel tank must be removed from the vehicle to access it. The prices listed below are estimates for the entire job, including parts and labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Module (Part Only) | $150 - $450+ |
| Shop Labor | $324 - $475 |
| Total Professional Replacement | $712 - $1,040+ |
Frequently Asked Questions
Are there any recalls for the 2003-2004 Ascender fuel system?
There have been no specific recalls for the fuel pressure regulator or fuel pump module on the 2003-2004 Isuzu Ascender. There was a special coverage policy for a faulty fuel level sensor on 2005-2007 models, but this does not apply to the 2003-2004 years and is a different component. Other Isuzu fuel-related recalls did not include the Ascender.
Can I replace just the regulator part inside the module?
No. The regulator is built into the fuel pump module and is not designed to be replaced separately. The entire module must be replaced as a single unit.
Is this a DIY-friendly repair?
Replacing the in-tank fuel pump module is a difficult and potentially dangerous job for a home mechanic. It requires safely draining and removing the fuel tank, which is heavy and contains flammable gasoline. Special tools may be needed to disconnect fuel lines and remove the module's locking ring. This job is best left to a professional mechanic.
🎬 See the process for installing a new fuel pump module.Why do so many stores sell a regulator that doesn't fit?
The Isuzu Ascender is mechanically identical to the Chevrolet Trailblazer and GMC Envoy. Some older GM trucks used a rail-mounted regulator that looks like the parts incorrectly listed. This parts-catalog error is common for this vehicle platform, causing significant confusion.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8888941760
The fuel system is a returnless design. The correct replacement part is the complete fuel pump module assembly. The fuel pressure regulator is an integral, non-serviceable part of that assembly.
