Chevrolet SSR Engine Timing Set: A Guide for 2003-2006 Owners
Keep your SSR's V8 engine running in perfect sync with the right timing set.
- The 2003-04 5.3L and 2005-06 6.0L engines require different timing sets; verify fitment.
- Listen for rattling from the front of the engine at startup, as this is a primary symptom of a loose chain.
- Ignoring symptoms can lead to catastrophic engine failure; this is a critical repair.
- While replacing the timing set, it is highly recommended to also replace the oil pump, water pump, and front seals.

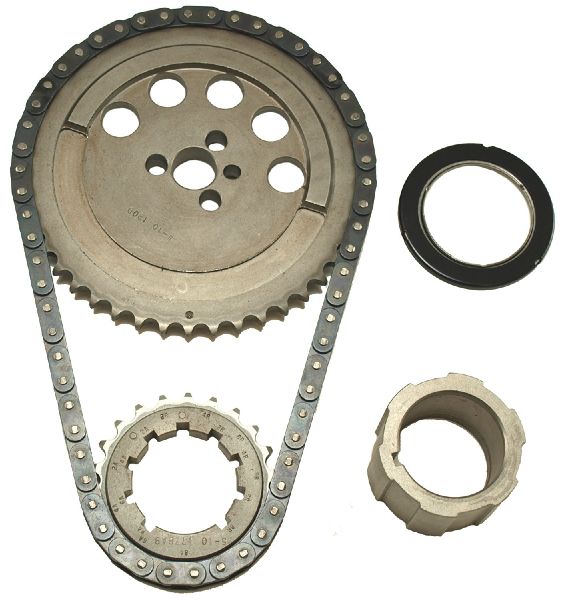

Understanding Your SSR's Timing Set
The Chevrolet SSR, produced from 2003 to 2006, came with two powerful V8 engines: the 5.3L LM4 for 2003-2004 models and the 6.0L LS2 for 2005-2006 models. Both are robust, pushrod-style engines that rely on a timing chain to keep the valvetrain and pistons moving correctly. Unlike timing belts, these chains are designed to last a long time, but they can still wear out. When they do, replacing the entire set—chain, gears, and tensioner—is essential for the health of your engine.
Symptoms of a Failing Timing Set
A worn timing set will give you warning signs. Ignoring them can lead to severe engine damage. Be on the lookout for:
- Engine Rattle: A rattling or clattering noise from the front of the engine, especially noticeable at startup or at idle, is a classic sign of a loose chain.
- Check Engine Light: If the chain stretches and jumps a tooth on a gear, the camshaft and crankshaft will no longer be in sync. This will throw off the engine's timing and trigger a Check Engine Light with codes like P0016, P0017, or P0335.
- Engine Misfires and Rough Running: Incorrect valve timing from a stretched chain can cause the engine to misfire, run poorly, idle roughly, or lose power.
- Metal Shavings in Oil: As the chain and gears wear, tiny metal particles can break off and end up in the engine oil. If you see a metallic shimmer in your oil during an oil change, it's a major red flag.
Critical Warning
If your timing chain breaks while the engine is running, the pistons can collide with the valves, causing catastrophic and expensive engine damage. Do not ignore the symptoms of a failing timing chain.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you have several good aftermarket options. The stock GM timing chains on LS-based engines are generally very durable, but the aftermarket offers parts that meet or exceed OEM quality, often at a better price.
Tier 1: OEM Quality & Daily Driver
These brands are known for producing high-quality parts that are direct replacements for the original components. They are perfect for a stock SSR that is used as a daily driver or for cruising.
- Melling: A highly respected name in engine parts, Melling offers standard replacement and high-volume oil pumps, which are often replaced at the same time. Their timing sets are known for quality and durability.
- Cloyes: Another top-tier brand, Cloyes is a major manufacturer of timing components for both OEM and aftermarket applications. They offer reliable, long-lasting timing sets. Some users in forums have noted quality differences in specific kits, so it's wise to inspect parts upon arrival.
- INA: A global OEM supplier, INA parts are trusted by manufacturers worldwide. An INA timing set is a solid choice for an OEM-quality replacement.
Tier 2: Performance & Heavy Duty
If you have modified your SSR for more power or simply want an upgrade in strength and precision, these brands are for you.
- Melling Select Performance: This is Melling's high-performance line, offering stronger chains and more durable gear materials for engines that see higher RPMs or increased stress from modifications.
- Edelbrock: A legendary name in performance, Edelbrock timing sets are designed for high-performance street and racing applications. They often feature billet steel gears and pre-stretched, heat-treated chains for maximum durability.
Tier 3: Budget-Friendly
These brands offer a more affordable solution. While they can be a good value, quality can be inconsistent. They are best suited for a budget-conscious repair on a standard vehicle.
- Skyward: This brand falls into the economy category. Careful inspection of the parts before installation is recommended.
Pro Tip: What Else to Replace
Since replacing the timing set requires removing the engine's front cover, it's the perfect time to replace other parts in that area. Consider replacing the oil pump (a Melling high-volume pump is a popular upgrade), water pump, front crankshaft seal, and all related gaskets to prevent future leaks and save on labor down the road.
Estimated Replacement Costs
The cost to replace a timing set can vary widely based on labor rates and the parts you choose. The job is labor-intensive, as it requires accessing the front of the engine.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $51 - $338 |
| Shop Labor | $600 - $1,200 |
| Total Estimated Cost | $651 - $1,538 |
*Cost estimates are for the timing set only and do not include related parts like an oil pump or gaskets. Labor costs vary by region.
Frequently Asked Questions
Do I need a special timing set for my 5.3L or 6.0L engine?
Yes, the 2003-2004 SSR with the 5.3L LM4 engine and the 2005-2006 SSR with the 6.0L LS2 engine use different timing sets due to engine generation differences. The LS2 uses a different cam sensor setup. Always verify the part fits your specific year and engine before purchasing.
Is there a recall on the Chevrolet SSR timing chain?
No, there are no specific recalls issued by the NHTSA for timing chain failure on the 2003-2006 Chevrolet SSR. However, GM did issue a Technical Service Bulletin (TSB) in 2003 about a design change in the timing chain and oiler nozzle for some V8 engines, advising technicians to use the updated parts during service.
Can I replace the timing set myself?
This is a job for an experienced DIY mechanic. It requires significant disassembly of the front of the engine, including the cooling system, belts, pulleys, water pump, and harmonic balancer. Special tools, like a crank pulley puller, are required. For most owners, professional installation is recommended.
What is a timing chain tensioner and should I replace it?
The tensioner is a component that keeps the timing chain tight, preventing it from slapping around or skipping a tooth on the gears. A failing tensioner can cause rattling noises. It is always recommended to replace the tensioner when you replace the timing chain and gears. Most aftermarket kits include a new tensioner.
Technical Specifications
OEM Part Numbers: 12646387 12586482 12588670
The 2003-2004 SSR uses a Gen III V8 (5.3L LM4) timing set. The 2005-2006 SSR uses a Gen IV V8 (6.0L LS2) timing set, which accommodates a front-mounted camshaft position sensor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
