Chevrolet SSR Horn Not Working? A Guide for 2003-2006 Models
Before you buy a new horn for your SSR, learn the common failure points that are often much cheaper and easier to fix.
- Always check the horn relay and fuse in the under-hood fuse box before buying parts; this is the most common and cheapest fix.
- Problems with intermittent horn operation are almost always caused by the switch contacts in the steering wheel, not the horn itself.
- The SSR uses a two-horn system (high and low tone); a weak sound may mean only one has failed.
- Aftermarket horns are a direct-fit, budget-friendly repair, but the sound may not be an exact match to the original factory tone.
Is Your SSR Horn Really Broken?

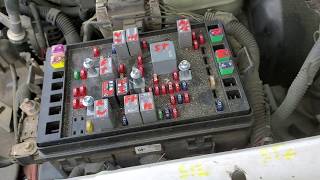

Stop! Check the easy things first. On GM trucks from this era, the horn itself is rarely the first part to fail. The most common culprits are the horn relay and the horn fuse, both located in the under-hood fuse box. 🎬 Watch: How to locate and test your horn relay Before spending money on a new horn, swap the horn relay with an identical relay from the same fuse box (like the one for the A/C). If the horn works, you just need a new relay. If not, check the 15-amp horn fuse. This simple diagnostic step can save you time and money.
Symptoms of a Failing Horn System
When you press the horn pad on your steering wheel, you expect an immediate, loud response. If that's not happening, you likely have an issue somewhere in the horn circuit. Common symptoms include:
- No sound at all: This is the most common complaint. It often points to a bad fuse, relay, or a problem with the horn switch contacts in the steering wheel.
- Weak or muffled sound: If the horn sounds quiet or strange, it could mean one of the two horns (high or low tone) has failed or there is water inside the horn assembly.
- Intermittent operation: If the horn only works when you press a specific spot on the steering wheel or while turning, the problem is likely worn contacts inside the steering wheel airbag module or a failing clock spring.
Choosing an Aftermarket Replacement Horn
If you've confirmed the horn itself is the problem, an aftermarket replacement is a cost-effective solution. The SSR uses two horns, a high-pitch and a low-pitch one. You can often buy them individually.
- Quality and Fit: Aftermarket brands like 'Replacement' are designed to be direct-fit parts. This means they come with the correct mounting bracket and electrical connector, so no cutting or splicing is required for installation.
- OEM vs. Aftermarket: The primary function of an aftermarket horn is to work reliably at a lower cost. While it will be loud and effective, the exact tone may differ slightly from the original factory horns. For a daily driver or a vehicle needing to pass a safety inspection, this difference is usually not a concern.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Horn | $35 - $39 |
| New OEM Horn | $60 - $90 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
How do I test the horn fuse and relay on my SSR?
Open the fuse box in the engine bay. Locate the horn relay and a matching relay (check the diagram on the fuse box lid). Swap them and test the horn. If it works, the relay was bad. If not, pull the horn fuse (usually 15A) and visually inspect it to see if the metal strip inside is broken.
Where are the horns located on my 2003-2006 Chevrolet SSR?
The horns are typically located at the front of the vehicle, behind the grille or front bumper cover. On similar GM trucks, they are often on the passenger side, and you may need to remove the headlight assembly 🎬 See this walkthrough for accessing and replacing the horn to gain access. They are held on by a single bolt and have one electrical connector.
Do I need to replace both horns at the same time?
Not necessarily. If you've tested them and only one has failed, you can replace just that one. However, they are the same age, and replacing them as a pair ensures a consistent tone and can prevent having to do the job again if the other one fails soon after.
My horn works, but only when I press the steering wheel really hard. What's wrong?
This is a classic sign of worn or dirty contacts inside the steering wheel horn switch. The repair involves removing the airbag module (disconnect the battery first! 🎬 Watch: How to clean steering wheel horn switch contacts) to clean the contact points. This is a more involved repair, and if you are not comfortable handling the airbag system, it is best left to a professional.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15138139 15138140
System consists of one high-note horn and one low-note horn.
