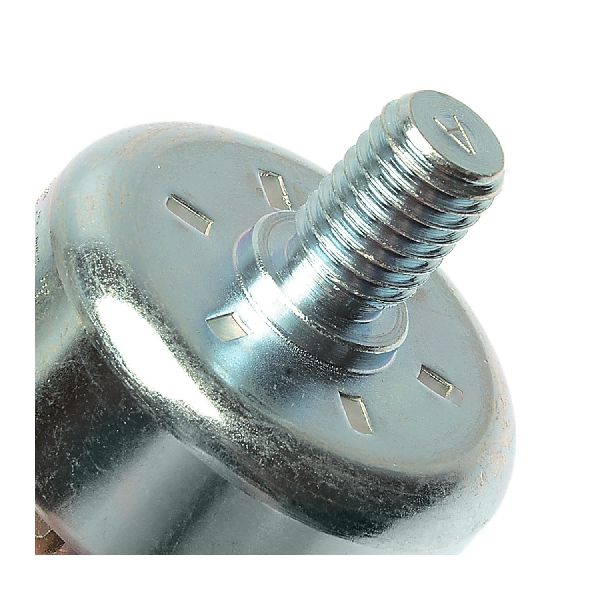

A Deep Dive into the 2003-2006 Chevrolet SSR Ignition Knock Sensor
Understanding this critical sensor is key to protecting your SSR's V8 engine and keeping it running strong.
- The replacement is a major, labor-intensive job requiring removal of the intake manifold.
- Due to the high labor cost, always use high-quality OEM or equivalent brands like ACDelco or Delphi.
- Always replace both knock sensors and the wiring harness at the same time to prevent repeat repairs.
- A known issue on these GM V8s is water intrusion; applying RTV sealant as a dam is a recommended preventative measure.
Understanding Knock Sensor Failure in Your SSR
A failing knock sensor on your 2003-2006 Chevrolet SSR can cause more than just a Check Engine Light. Because the sensor's job is to protect the engine, the vehicle's computer (ECU) will play it safe when it gets a bad signal. It will default to a conservative mode, which can lead to sluggish acceleration, poor fuel economy, and a general lack of power. In some cases, you might hear an audible 'pinging' or 'knocking' sound from the engine, especially under load, like when you're accelerating hard or towing.
This is a Labor-Intensive Job
On the 2003-2006 Chevrolet SSR, the two knock sensors are located in a valley under the intake manifold. This means the entire manifold, fuel rails, and various connectors must be removed to access them. This is not a quick or easy job and is a primary reason why choosing a high-quality, reliable replacement part is critical. Doing the job twice because of a cheap, faulty part will be very costly and frustrating.
Choosing the Right Aftermarket Knock Sensor
When it comes to a part that is this difficult to access, part quality should be your top priority. While saving money is always a goal, the significant labor cost for this specific repair means a cheap sensor can be a very expensive mistake. Many technicians and experienced owners strongly recommend using OEM or high-quality OEM-equivalent parts to avoid repeat failures.
Brand Quality Tiers for Your SSR
- Top Tier (OEM & OEM-Equivalent): Brands like ACDelco (the original GM part) and Delphi are widely considered the best choice. Delphi was often the original equipment manufacturer for GM, so their quality is trusted. These brands are recommended by mechanics to ensure you only have to do the job once.
- Mid-Grade (Reputable Aftermarket): Brands like NGK and Standard Ignition (SMP) have a generally good reputation in the aftermarket for sensors. They can be a reliable alternative to the top-tier brands if you're looking for a balance of cost and quality.
- Budget-Friendly: Other brands may offer a lower price point, but the risk of premature failure is higher. Given the 2-3+ hours of labor required to replace these sensors, using a budget part is not recommended for this specific job on the SSR. Many forum users report having to redo the job after using cheap, unbranded sensors.
Always Replace as a Set
Your SSR has two knock sensors. If one has failed, the other has been subjected to the same heat and conditions for the same amount of time. Because of the labor involved, you should always replace both sensors at the same time. It is also highly recommended to replace the knock sensor wiring harness that connects them, as the connectors can become brittle and corroded.
Cost to Replace Knock Sensors on a 2003-2006 Chevrolet SSR
| Part / Service | Estimated Cost |
|---|---|
| New OEM (ACDelco) Sensors (Set of 2) | $90 - $160 |
| New Aftermarket Sensors (Set of 2) | $30 - $170 |
| Knock Sensor Wiring Harness | $20 - $45 |
| Shop Labor | $250 - $450 |
Note: Prices are estimates and can vary based on location, supplier, and brand. Labor costs are based on an estimated 2-3 hours of work.
Frequently Asked Questions
Where are the knock sensors located on my SSR?
The two knock sensors are located underneath the intake manifold, in the valley cover of the engine block. You cannot see them without removing the large upper portion of the engine's intake system.
Why is the replacement so labor-intensive?
To get to the sensors, a mechanic must disconnect the battery, remove the air intake, throttle body, fuel lines, fuel injectors, and multiple wiring harnesses before finally unbolting and lifting the entire intake manifold off the engine. This process is time-consuming and requires careful work.
Do I need to replace the wiring harness too?
Yes, it is highly recommended. The original harness is exposed to intense heat and can become brittle, and the sensor cavities are known to collect moisture and cause corrosion on the connectors. A new harness is a small extra cost that provides significant peace of mind.
What happens if I ignore a bad knock sensor?
The ECU will retard the engine timing to protect the engine, resulting in poor performance and fuel economy. If the engine is truly knocking and the sensor isn't detecting it, you risk severe, long-term internal engine damage.
Is there a recall or TSB for the SSR knock sensors?
Searches did not find any recalls for this specific issue on the 2003-2006 Chevrolet SSR. However, GM has issued technical service bulletins (TSBs) for similar engines of the same era, like TSB #02-06-04-023A, which address problems with water intrusion into the knock sensor cavities. The fix often involves building a small dam of RTV silicone around the sensor grommets to prevent water from pooling.
Technical Specifications
OEM Part Numbers: 12589867 213-3521
The two knock sensors are located under the intake manifold. The correct torque specification for the sensor bolts is critical for proper function, typically 15 ft-lbs. Over or under-tightening can cause the sensor to malfunction and trigger a code.
