Chevrolet SSR Ignition Switch Guide (2003-2006)
Address stalling and electrical problems in your SSR by understanding and replacing a faulty ignition switch.
- The SSR was not part of the major GM ignition switch recalls, but it suffers from the same type of failures.
- Symptoms are almost always electrical: stalling, no-start, flickering lights, or dead accessories.
- This is a very DIY-friendly repair, but careful alignment of the new switch is critical to avoid new problems.
- Choosing a quality aftermarket brand like Standard Ignition or Dorman is a reliable and cost-effective solution.
Is Your SSR Experiencing Strange Electrical Gremlins?
A failing ignition switch is a known issue on the GMT360 platform, which the Chevrolet SSR is built on. The original factory switches can wear out internally, causing poor electrical contact. This leads to a variety of problems that can be hard to diagnose. You might think you have a bad battery or alternator, but the real culprit could be this relatively simple switch.
Common Symptoms of a Failing SSR Ignition Switch
If you notice any of these issues 🎬 Watch a video breakdown of common ignition switch failure symptoms., your ignition switch is a likely suspect:
- Engine Stalls While Driving: This is a serious safety concern. The switch can momentarily lose contact, cutting power to the engine without warning.
- No-Start or Intermittent Start: You turn the key and nothing happens, or it only starts sometimes. You might not even hear a click from the starter.
- Starts and Immediately Dies: The engine fires up but shuts off as soon as you release the key from the "START" position. This happens because the switch isn't maintaining power in the "RUN" position.
- Flickering Dashboard Lights & Gauges: The instrument panel may flicker, or all the lights might go dead even with the key on.
- Accessories Not Working Correctly: Your radio, power windows, or climate controls might work intermittently or not at all.
- Battery Light Stays On: If the switch doesn't fully return to the correct "OFF" position, it can leave some circuits active, draining the battery and causing the charging system light to stay on.
Was There an Ignition Switch Recall for the SSR?
While General Motors had massive, highly-publicized recalls for ignition switches in the 2010s, the 2003-2006 Chevrolet SSR was not officially included in those specific campaigns (like NHTSA recalls 14113, 14063, etc.). Those recalls primarily affected vehicles like the Chevrolet Cobalt and Saturn Ion. However, the SSR is known among owners to suffer from similar ignition switch failure symptoms due to the design of the part used across many GM vehicles 🎬 Learn how to replace this switch on common GM truck platforms. of that era.
Choosing the Right Aftermarket Ignition Switch
Since new OEM parts can be hard to find or expensive, the aftermarket is a great source for this part. Here’s a breakdown of the available brands:
Tier 1: Best Quality
- Standard Motor Products (Standard Ignition): Often considered a top-tier aftermarket brand. SMP parts are trusted by professional mechanics for their quality and reliability, often meeting or exceeding OEM specifications. This is a strong choice for a vehicle you care about like the SSR.
Tier 2: Good Quality & Value
- Dorman: A widely available brand known for providing cost-effective solutions. While some Dorman electrical parts have a mixed reputation, they are a solid mid-tier option and often a reliable choice for common repairs.
- Rostra Powertrain: Rostra specializes in automotive electronics and is known for producing reliable components that serve as direct-fit OE replacements. They are a reputable choice for this type of part.
Tier 3: Budget-Friendly
- Replacement: This category typically refers to store brands or unbranded parts. They offer the lowest price and can get your truck back on the road. However, for a critical component like an ignition switch, investing in a brand from a higher tier is often recommended for long-term reliability.
Pro Tip: Check the Color
Many owners and mechanics note that the original, failure-prone factory ignition switches were all black. The updated, revised parts from ACDelco and quality aftermarket brands often have a gray or light-colored housing. If you remove your old switch and it's black, you're likely replacing the original unit.
Cost of Replacing the Ignition Switch
| Part Type | Cost Range |
|---|---|
| New Aftermarket (DIY) | $22 - $41 |
| New OEM (ACDelco) | $25 - $50 |
| Shop Labor Cost | $100 - $200 |
| Total Professional Replacement | $122 - $250 |
Frequently Asked Questions
Can I replace the ignition switch myself?
Yes, this is a DIY-friendly job for someone with basic tools. It involves removing the lower steering column cover, disconnecting the battery, and carefully swapping the switch. 🎬 See a step-by-step guide to replacing the switch on an SSR. The most critical part is correctly aligning the gear on the new switch with the actuator rod from the key cylinder. Failure to align it properly can result in the truck not starting or the battery draining.
Is the ignition switch the same as the lock cylinder?
No. The ignition lock cylinder is the mechanical part you put your key into. The ignition switch is the separate electronic part that the lock cylinder controls. If your key is physically hard to turn or getting stuck, the problem is likely the lock cylinder, not the switch.
Do I need to reprogram my keys after replacing the switch?
No. Since you are only replacing the electronic switch and not the lock cylinder or the key itself, no key reprogramming is necessary. Your SSR's Passlock anti-theft system is housed in the lock cylinder housing, which is not being replaced.
What is the most common mistake when replacing this part?
The most common mistake is improper alignment of the new switch. The gear on the switch must be in the correct position (usually matching the "OFF" or "RUN" position of the key) before it's clipped into place. If misaligned, the truck may not start, or accessories may stay on, draining the battery. Always test all key positions (Accessory, On, Start) before reassembling the steering column covers.

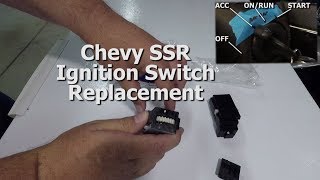

Helpful Videos
Technical Specifications
OEM Part Numbers: 15242754 12450251
Located on the steering column, activated by the key lock cylinder. This is the electrical switch only.
