Chevrolet SSR Vehicle Speed Sensor Guide for 2003-2006 Models
If your SSR's speedometer is acting up or the transmission is shifting hard, the vehicle speed sensor is the likely culprit.
- A bad VSS is the most common cause of erratic speedometer behavior and harsh shifting in the SSR.
- This is an easy and inexpensive DIY repair that most owners can perform in their driveway with basic tools.
- There are no specific recalls for this part; it is a standard maintenance failure.
- Choosing a premium aftermarket brand like Delphi or Standard Ignition offers OEM-level quality for a fraction of the dealer price.
Is Your SSR's Speed Sensor Failing?
A failing vehicle speed sensor (VSS) on a 2003-2006 Chevrolet SSR will cause noticeable problems. Because the sensor provides critical data to so many systems, its failure won't go unnoticed. The most common issues are directly related to the speedometer, cruise control, and automatic transmission performance.
Symptoms of a Bad Vehicle Speed Sensor
🎬 Watch: See these 5 common symptoms of a bad sensor.- Erratic or Dead Speedometer: The speedometer needle may jump around, read incorrectly, or not move at all.
- Harsh or Incorrect Shifting (Automatic Transmission): The transmission may slam into gear, shift at the wrong times, or feel like it's slipping because it can't determine the correct shift points.
- Cruise Control Stops Working: The cruise control system will disable itself if it doesn't receive a reliable speed signal from the VSS.
- Check Engine Light: The Powertrain Control Module (PCM) will likely trigger the check engine light and store a diagnostic trouble code (such as P0500, P0502, or P0503) when it detects a problem with the VSS signal.
- ABS or Traction Control Light: Since the ABS system uses speed data, a faulty VSS can sometimes illuminate the ABS warning light.
No Specific Recalls or TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from General Motors or the NHTSA for vehicle speed sensor failure on the 2003-2006 Chevrolet SSR. This is a standard wear-and-tear component.
Choosing the Right Aftermarket Sensor
For a part like the VSS, you don't necessarily need to go back to the dealer for an expensive OEM part. Several reputable aftermarket brands offer quality replacements that provide excellent performance and value. The key is to choose a brand with a good reputation for quality control.
Brand Quality Tiers

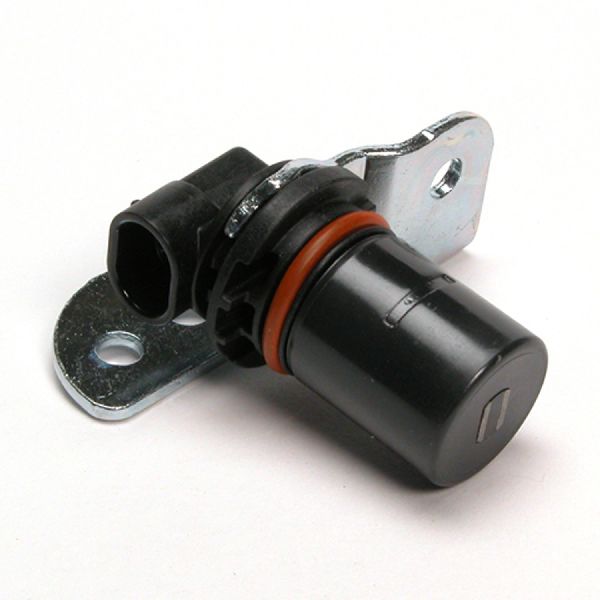

- Premium Aftermarket (OEM Quality): Brands like Delphi and Standard Ignition (Standard Motor Products) are highly regarded in the industry. Delphi is often an Original Equipment supplier to GM, meaning their parts are made to the same standards as the factory component. Standard Ignition is a trusted name among professional mechanics for its reliability and precise engineering.

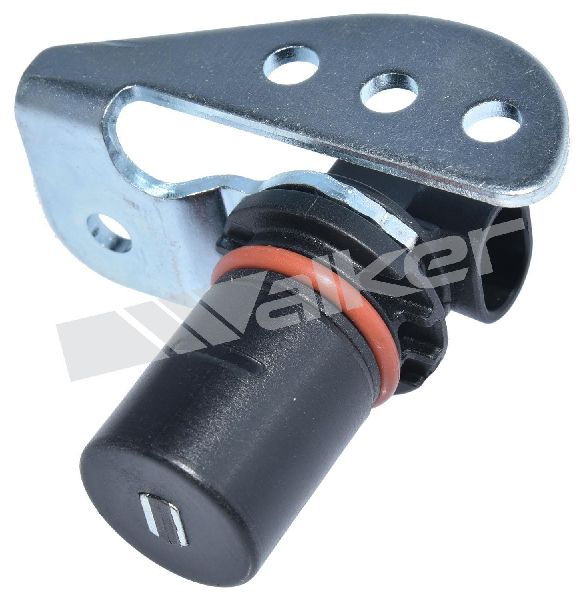

- Quality Standard Aftermarket: Brands such as Walker Products and Holstein offer a good balance of quality and price. They manufacture parts to meet or exceed OEM specifications and often provide a strong warranty, making them a solid choice for most owners.
- Economy Options: Brands like Dorman and True Tech provide a budget-friendly solution. While Dorman is a massive aftermarket supplier, their parts can sometimes have mixed reviews regarding long-term durability. These are best considered when the budget is the primary concern.
Pro Tip: Given the low cost of even premium aftermarket sensors and the part's importance for drivability, spending a few extra dollars for a brand like Delphi or Standard Ignition is a worthwhile investment in reliability.
Cost of Replacing the Vehicle Speed Sensor
Replacing the VSS is not an expensive repair. The part itself is affordable, and if you choose to have a shop do the work, the labor time is minimal.
| Cost Category | Estimated Price |
|---|---|
| New Aftermarket Part | $22 - $43 |
| New OEM Part (Dealer) | $70 - $120 |
| Shop Labor | $75 - $150 |
| DIY Total | $22 - $43 |
| Shop Repair Total | $97 - $193 |
Frequently Asked Questions
Can I replace the SSR's vehicle speed sensor myself?
Yes, this is a great DIY job for a beginner. The sensor is located on the outside of the transmission and is typically held in by a single bolt. The job involves safely raising the vehicle, disconnecting the electrical connector, removing the bolt, swapping the sensor, and then reinstalling everything. It usually requires only basic hand tools and can be done in under an hour.
🎬 See this replacement walkthrough on a similar GM platform.Where is the vehicle speed sensor located on the 2003-2006 SSR?
The VSS is located on the driver's side of the transmission, near the rear where the driveshaft connects. 🎬 Watch: How to replace the sensor on Chevy trucks and SUVs. It is a small, cylindrical sensor with an electrical connector plugged into it.
Can I drive my SSR with a bad speed sensor?
You can, but it is not recommended for an extended period. You will have an inaccurate or non-working speedometer, which is a safety and legal issue. If you have an automatic transmission, you will also experience poor shifting, which can cause extra wear and tear on transmission components.
Is there a difference between the sensor for automatic and manual transmissions?
Yes, the part numbers can differ between the 4-speed automatic (4L60-E) and the 6-speed manual (T-56) transmissions used in the SSR. Always verify the part fits your specific year and transmission type before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89060543
The Vehicle Speed Sensor for the Chevrolet SSR is a magnetic sensor that mounts to the transmission housing. It generates a signal based on the rotation of a reluctor wheel on the transmission's output shaft. The sensor typically has a 2 or 3-pin electrical connector. Always confirm the part is correct for your specific transmission (automatic or manual) before purchase.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
